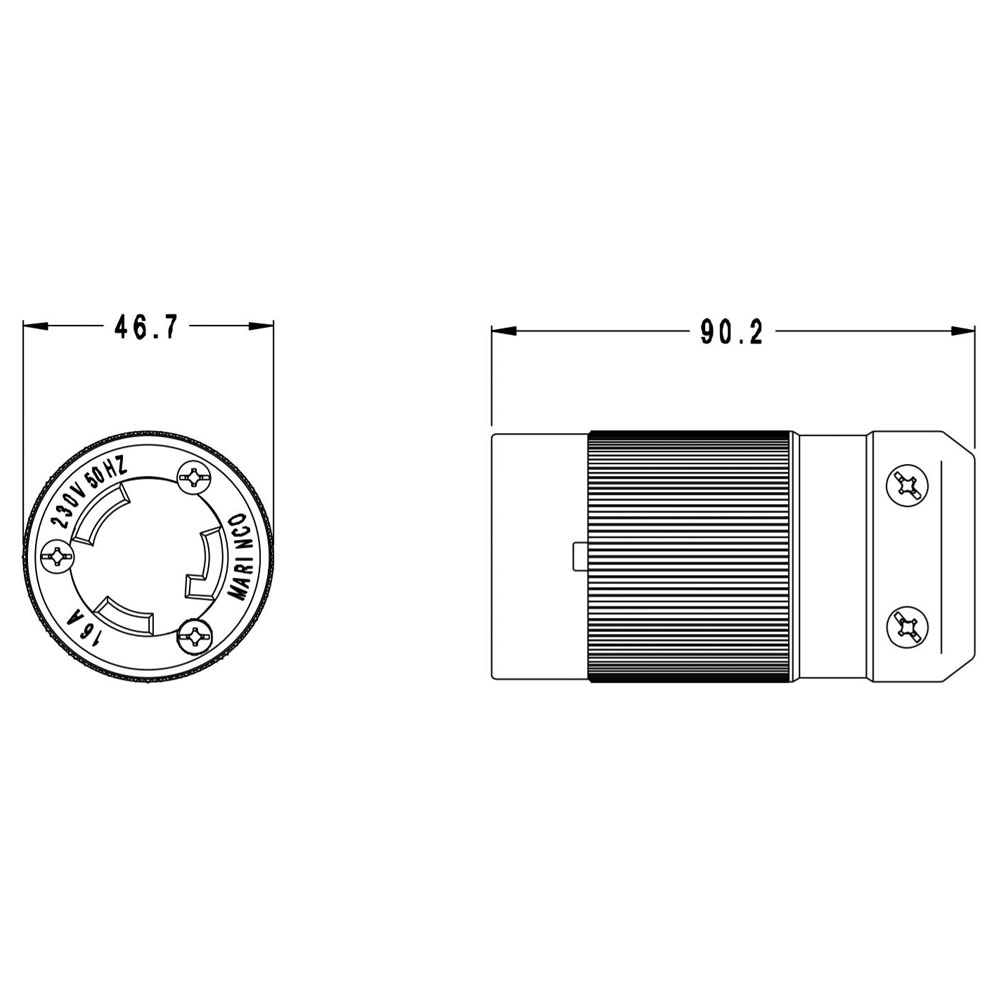

Quality-made connector

• Item: Connector, locking

• Rating: 16 amperes, 230 volts, 50 Hz, single-phase, 2-pole, 3-wire

• Materials: Plastic parts are nylon with CTI greater than 600 volts

• Terminals: Clamp-type, with colour-coded brass terminal screws, 10-32

• Contacts: Contacts are single-piece, rivet-less, brass, 0.81 mm thick

• Cord Clamp: Internal, with removable insert to accommodate cable with O.D. from 8.3 mm to 18.3 mm

• Overall Design: Three assembly screws, type B, slotted, stainless steel

• Dust seal at cord entry

• Bevelled housing

• Certifications: Conforms to IEC 60309-1:1999 when used with boot 103RN and cap/strap 199109
