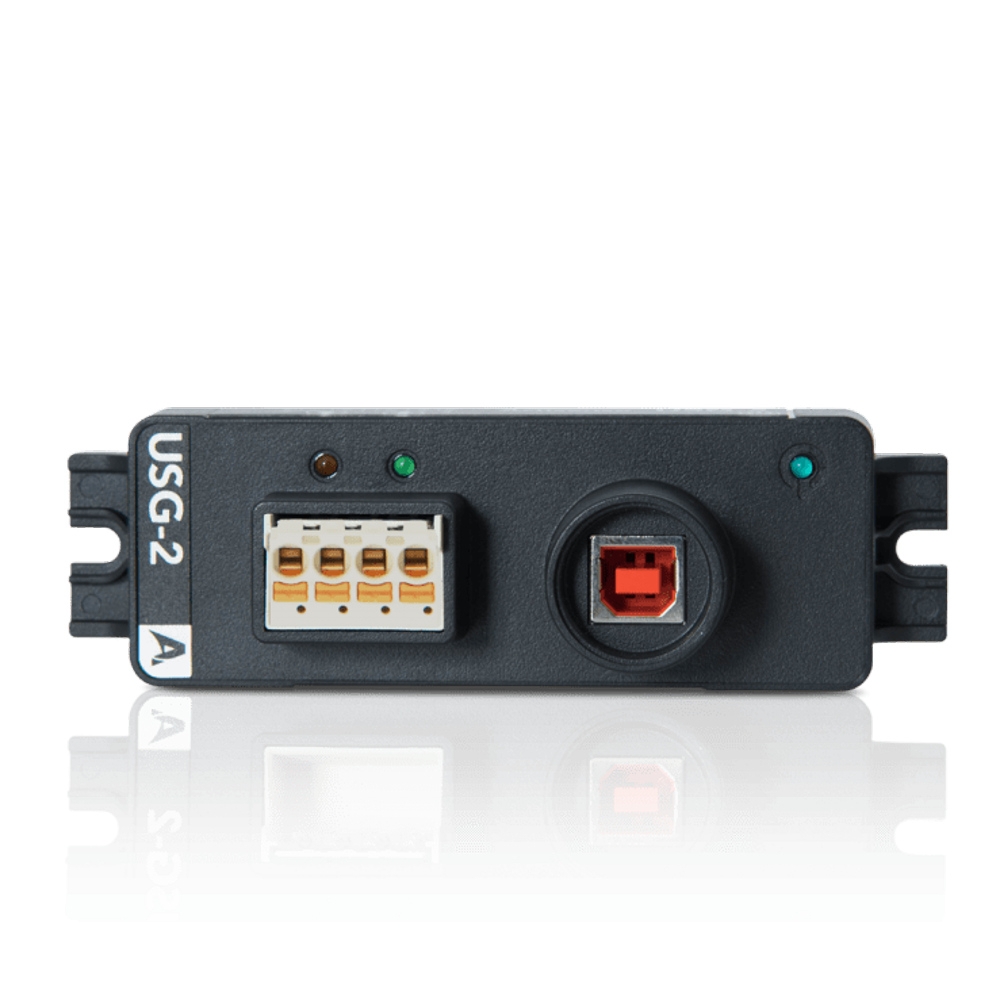

Actisense NMEA 0183 USB to Serial Gateway

Click on the image above to view full picture

Details

Details

It provides a far safer connection when compared to standard USB to serial converters.

Electrical isolation is provided by the ISO-Drive output and OPTO-isolated input making installation simple and free from ground loops.

The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.

The USG-2 is the safest way to connect a boat's data network to an on-board PC.

Features:
  • NMEA 0183, RS422 and RS232 compatible
  • ISO-Drive technology
  • Pluggable screwless connector with locking latch and strain relief
  • Encapsulated electronics
  • High retention USB socket
  • Diagnostic and power LEDs
  • Baud rates from 300 to 230400 bps
  • Bulkhead mount, with optional DIN rail mount kit
  • Pluggable screwless connector

Benefits:

Features:
  • Inputs and outputs protected against over voltage, ESD and short circuits
  • Simple installation
  • Protects PC from damage
  • Eliminates ground loops

Specifications:

Supply voltage

8

35

V

Supply current

Supply voltage 12v (Min. load, Max. load)

6

70

mA


Supply voltage 24v (Min. load, Max. load)

4.8

40

mA



NMEA in








Input voltage tolerance

Continuous operation

-15

15

V






Short Term Operation (<1 sec)

-35

35

V


Differential input voltage

Required level for data to be detected

1.8

-

V

Intput current

-

2

mA

Input to output protection



Full Galvanic Opto-isolation protection



-



2000



V



RS485/RS422 out

NMEA 0183 version 2-3


Output current

RS485/RS422 compatible

15

40

mA

Differential output voltage



50 ohm load



2



-



V



RS232 out

NMEA 0183 version 1-3 and PC serial

Output current

5

10

mA

Output voltage



 3k ohm load



+/-5



-



V



General





Baud rate


-

57600

bps

Ambient temperature

-20

70

degreesC
