Quick Hector Horizontal Windlass with Drum 1000W 12V

#9039116
Warranty Badge - 3-Years
Ships Nov 27 - Dec 9
ONLY $2,729.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

Compact and easy to install

The Quick Hector Horizontal Windlass is perfect for boats with limited space in the anchor locker. This unit is composed of anodised aluminium in hard oxide with a composite motor jacket which is durable element when dealing with harsh marine environments. It's equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat as well as a manual free fall system to quickly drop the anchor. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

The 1000W model is ideal for use with 10-13m (33-43ft) boats.

Quick Hector Horizontal Windlass with Drum 1000W Features:
  • Horizontal on-deck windlasses
  • Base in anodised aluminium in hard oxide
  • Jacket in composite material or in aluminium anodised in hard oxide
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Supplied with pressure lever

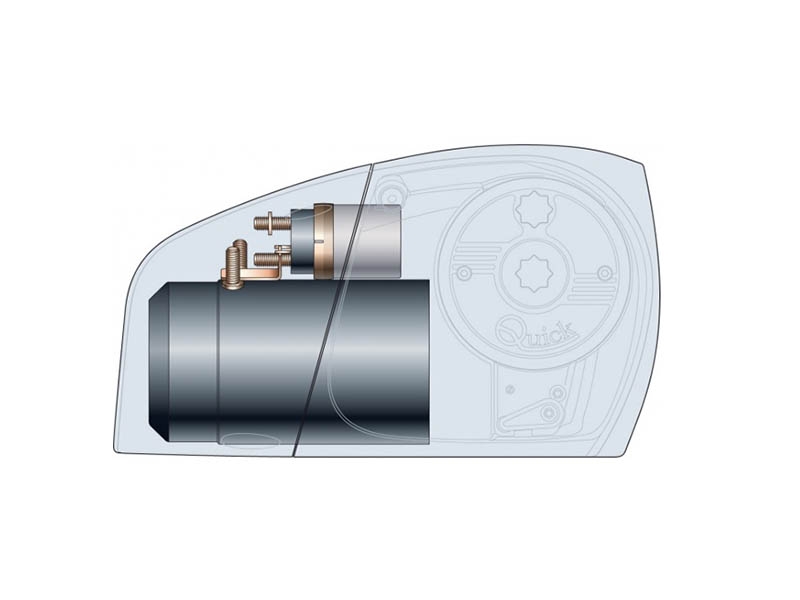

  • Integrated solenoids unit
  • Emergency manual lift system
  • Manual Free-Fall system
  • IP66 watertight motor
  • With drum
  • Boat size: 10-13m (33-43ft)

Quick Hector Horizontal Windlass with Drum 1000W Specifications:
  • Motor - Power: 1000W
  • Motor - Supply voltage: 12V
  • Maximum pull: 2860lb
  • Maximum working load: 793lb
  • Working load: 286.5lb
  • Current absorbtion at working load (1): 140A
  • Maximum chain speed (2): 122 ft/min
  • Maximum chain speed at working load (2): 58.4ft/min
  • Weight with drum: 56lb (25kg)
  • Dimensions:
    Length: 373mm
    Width: 284mm
    Height: 213mm
  • Chain:
    8mm DIN 766, 8mm ISO, 5/16" G4, 5/16" BBB
    10mm DIN 766, 10mm ISO, 3/8" G4
  • Rope: 9/16" - 5/8"

Quick Hector Horizontal Windlass with Drum Product Manual
