Manson Boss Anchor Galvanised

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Manson Plough Anchor Galvanised

Details

Details

A truly multipurpose anchor

The ultimate safety device, the Manson Boss Anchor is a multipurpose anchor designed to operate in all sea beds. Made for bow roller conformity, the fixed shank also has a single slot or sliding shackle depending on the sea bed type. The patented features, design and robust construction make it set immediately and hold during the worst of conditions.

Dual Shank Anchoring
The Manson Boss has dual modes of operation in one slotted shank. The strengthened high tensile steel shank has used FEA (finite element analysis) optimised for maximum strength. Fabricated from Lloyd's Register certified high tensile steel, it's at minimum 800mpa high tensile steel. The shank clearance is streamlined to conform to powerboat fairleads and bow rollers.

Manson Shackle Preventor
The Manson Boss has one slot in the shank with two docking stations to enable you to use you anchor in all seabeds. The patented Preventor quickly unscrews and docks on the alternate station to transform the anchor from a fixed shank to a sliding shank for operation in foul ground. The Preventor is captive which means you won't lose it.

Raises Flaps/Trim Flaps
Ensure the fastest set in even the most demanding seabed conditions. Raising the holding power by forcing the flukes downwards creates a minimum of 28% deeper setting than other new-generation anchors.

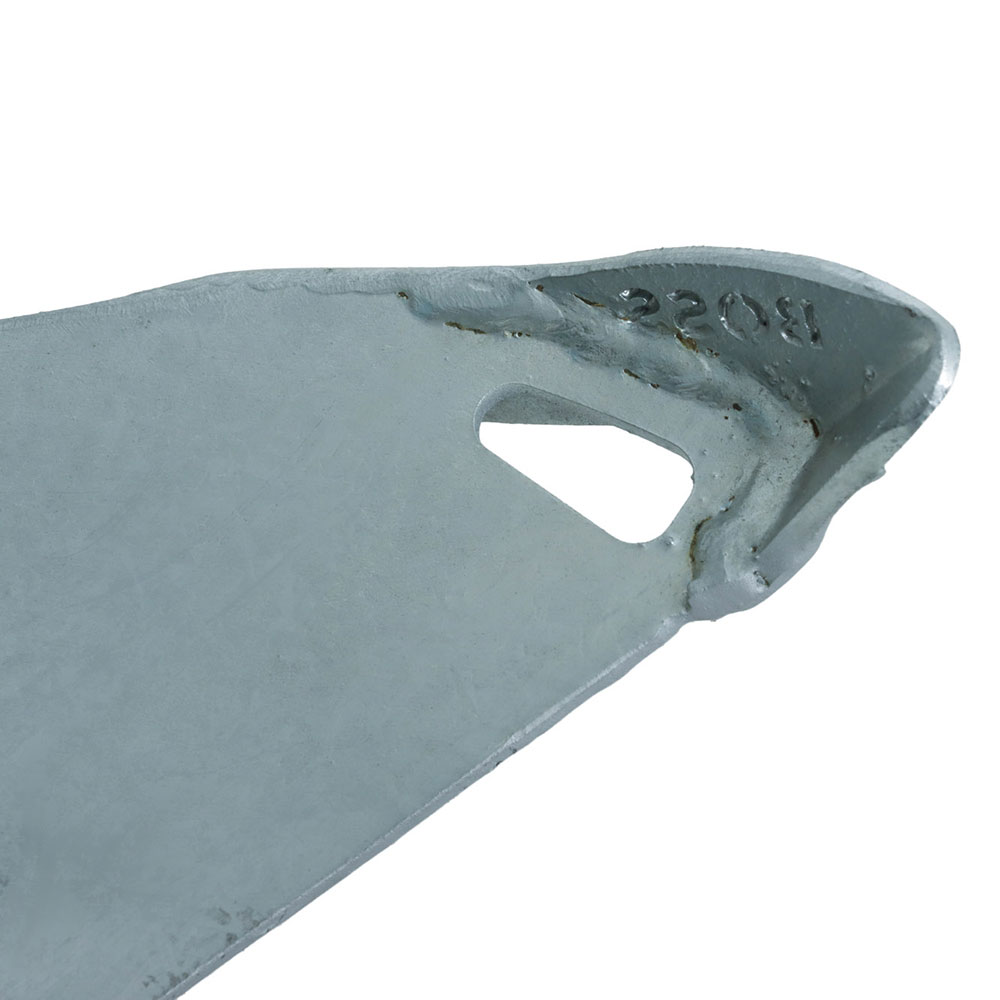

Double Reinforced Nose
Nose based tip weight concentration enabled by double thickness laminate layer (DTLL) technology for fastest set possible.

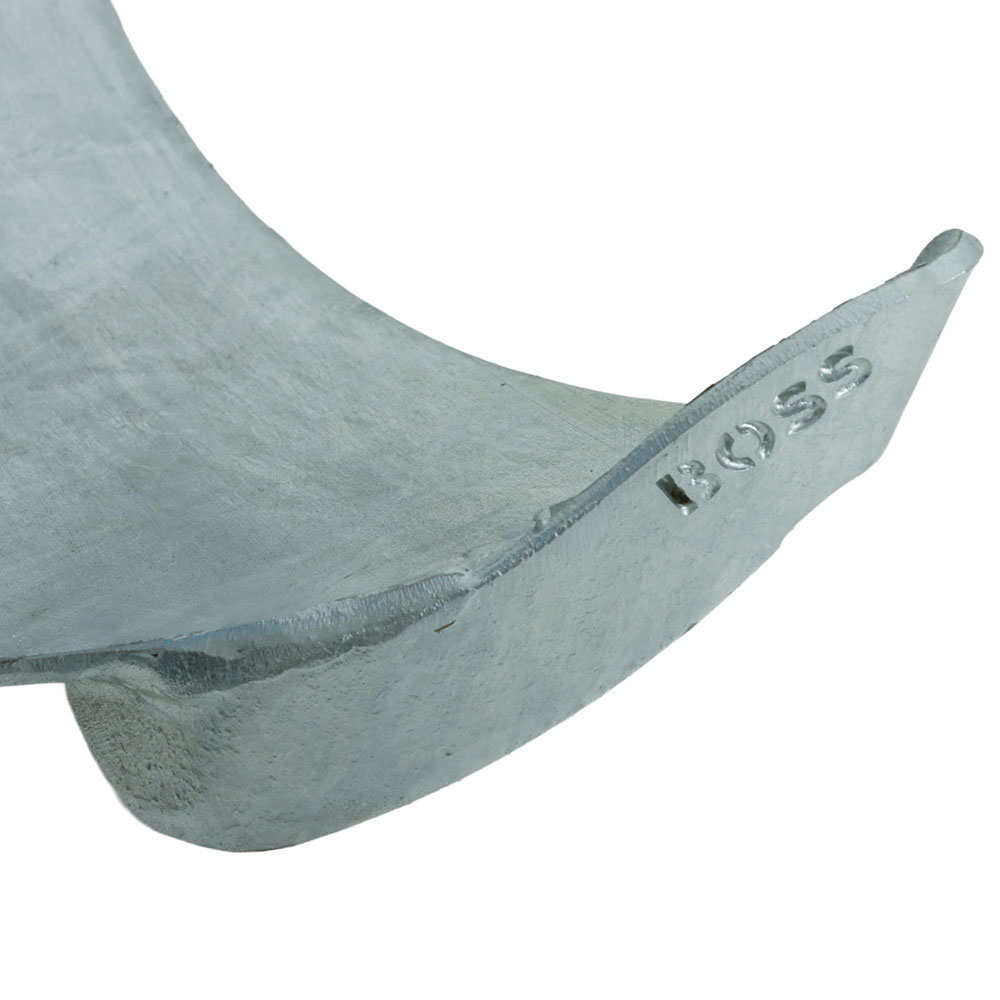

Fluke (Workhorse and Holding Power)
Reinforced double-skinned laminated toe provides a strong forward section of the anchor where it attacks the seabed, its seabed penetrating ability relies on this strength. Manson presses the concave shape into the fluke. This means the anchor cups the seabed and sets much faster. Manson uses 150 tonne presses to shape the product.

Bow-Roller Compatibility
Fits all standard bow-rollers, designed specifically for powerboats

Winglets
For immediate setting (setting and aligning) the Manson Boss has sure set wings. The wings' shape works to dig the anchor into the seabed as fast as you need it to. The angles and shapes have been developed to roll the anchor to setting angle as fast as it can.

Lifetime Guarantee
All Manson Boss anchors are given a lifetime against breakage under normal use. Damage by deformation or bending is not covered by this guarantee.

Manson Boss Anchor Features:

• Material: Galvanised Steel

• Patented Manson Shackle Preventor

• Shank Optimisation for maximum strength

• Made from Lloyd's Register certified high tensile steel

• Shank clearance streamlined to conform to Powerboat fairleads and bow rollers

• Roller flaps/trim flaps ensure the fastest set in even the most demanding seabed conditions

• A minimum of 28% deeper setting than other new-generation anchors

• Focused nose biased tip weight concentration enabled by double thickness laminate layer (DTLL) technology for fastest set possible

• Dual shank anchoring - slingle slot with preventor for all sea beds

• Strengthened high tensile steel shank

• Winglets for immediate setting

• Spear head cuts through the toughest sea floors


Manson Boss Anchor Specifications:

Galvanised	LBS	KGS	Length	Width	Recommended Boat Length (ft)	Recommended Boat Length (m)
BOS005	5 lb	2 kg	460 mm	258 mm	0-15 ft	0-4.5 m
BOS010	10 lb	4.5 kg	600 mm	334 mm	15-22 ft	4.5-6.7 m
BOS015	15 lb	7 kg	689 mm	382 mm	18-30 ft	5.5-9.1 m
BOS025	25 lb	12 kg	836 mm	462 mm	25-35 ft	7.6-10.7 m
BOS035	35 lb	16 kg	937 mm	516 mm	35-40 ft	10.7-12.2 m
BOS045	45 lb	21 kg	1002 mm	554 mm	40-45 ft	12.2-13.7 m
BOS060	60 lb	27 kg	1117 mm	617 mm	45-55 ft	13.7-16.8 m
BOS080	80 lb	36 kg	1200 mm	663 mm	50-60 ft	15.2-18.3 m
BOS100	100 lb	45 kg	1264 mm	698 mm	55-70 ft	16.8-21.3 m
BOS125	125 lb	57 kg	1397 mm	775 mm	65-75 ft	19.8-22.9 m
BOS150	150 lb	68 kg	1411 mm	779 mm	70-80 ft	21.3-24.4 m

Manson Galvanised Boss Anchor Dimensions
