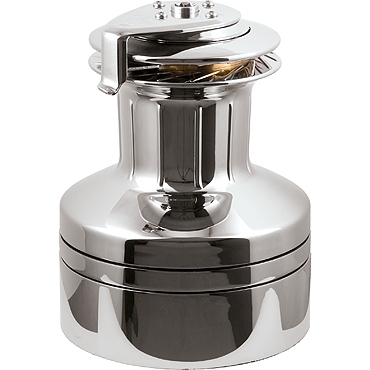

ANDERSEN 72ST Self Tailing Electric Winch Variable Speed Above Deck 24v

The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Stainless Horizontal Anchor Windlass Winch 600W 12V

ONLY $1,299.00

Details

Details

The ANDERSEN 72ST Self Tailing Electric Winch Variable Speed Above Deck 24v is a compact motor especially developed for use as a winch motor. This Above Deck version Above Deck, features the winch mounted directly on the motor. This motor is highly efficient, with an impressive line speed and first-rate maximum load. The unit is extremely easy to install and is of course compatible with the ANDERSEN Modular Power System™.

Compact
This motor comes in the size and shape of a winch but with integrated motor, gears and power control to make one COMPACT unit. That means no extra control boxes, all cables are connected directly to the unit. The motor is built on an entirely new commutator principle using no carbon brushes, resulting in the virtual elimination of wear and tear. This new approach to motors also provides other advantages; including 30-50% less power consumption compared to a conventional electric motor.

ANDERSEN 72ST Self Tailing Electric Winch Variable Speed Above Deck 24v Features:

• Compact in design integrating motor, gears and power controls into one unit

• Impressive line speed and first rate maximum load

• Easy to install and compatible with the ANDERSEN Modular Power System™.

• Version: Above deck

• Winch mounted directly on the motor

• Motor built without carbon brushes eliminates wear and tear.

• 30-50% less power consumption compared to conventional electric motors

ANDERSEN 72ST Self Tailing Electric Winch Variable Speed Above Deck 24v Specifications:

• Drum diameter D: 140 mm

• Base diameter B: 280 mm

• Height H: 280 mm

• Line Entry L: 208 mm

• Line Size: 10-18 mm

• Weight: 51 kg

• Max Deck K: 45 mm

• Motor Depth J: 88 mm

• Motor diameter S: 282 mm

• Motor Depth U: 40-75 mm

ANDERSEN Winches® Above and Below Deck Electric Compact Motors for 28ST/34ST/40ST/46ST/50ST/52ST/58ST/62ST/68ST/72ST Manual
