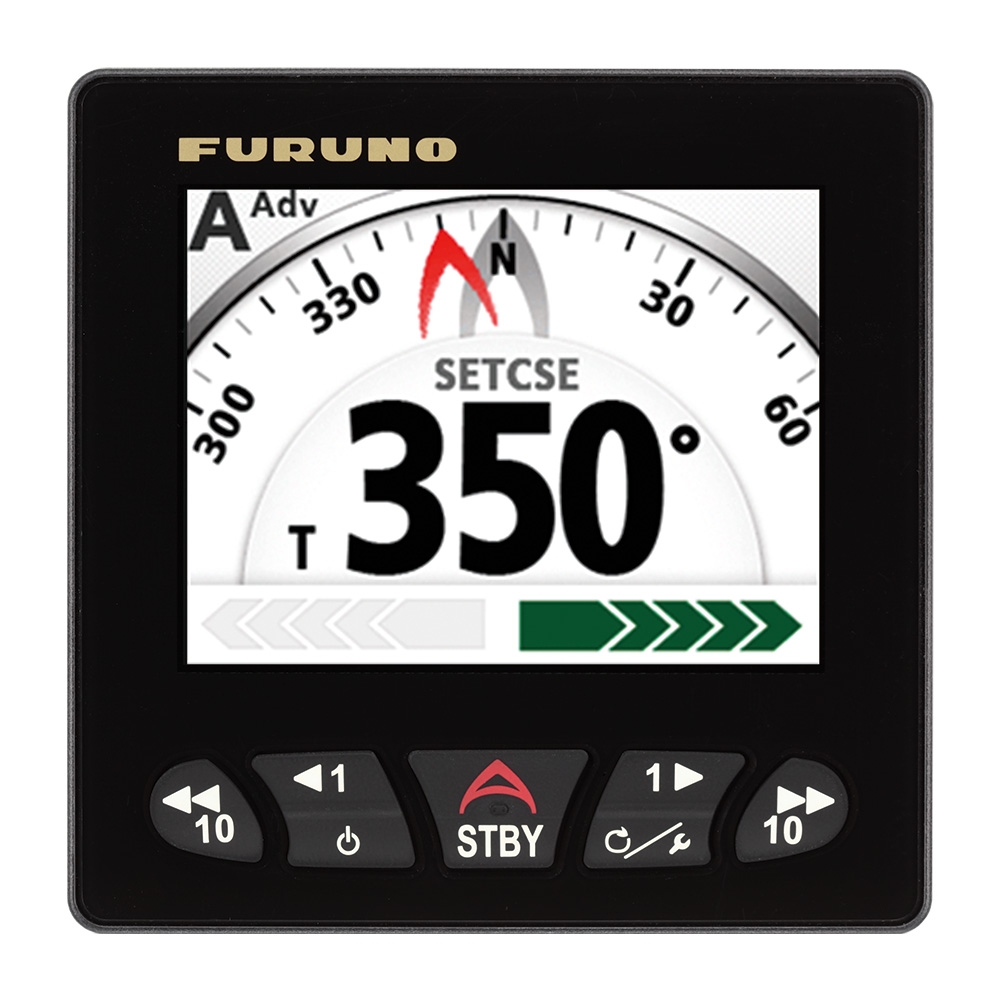

Furuno NavPilot 300 Adaptive Autopilot System with 4.1in LCD
Furuno NavPilot 300 Adaptive Autopilot System with 4.1in LCD
Deliver to:
Auckland 0626,
NZ
Estimated:
$5.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The coolest way to steer your boat
The Furuno NavPilot 300 Autopilot System is a revolutionary autopilot. With Fantum Feedback, NavPilot outboard installations no longer require use of a physical rudder feedback unit. This results in a streamlined, simplified installation. Combined with Furuno's unique adaptive learning technology, NavPilot 300 provides unmatched outboard Autopilot performance. Fantum Feedback is designed for planing and semi-displacement outboard vessels from 24 to 50 feet, with one to four outboard engines, where it achieves precise course control from slow trolling to speeds of well over 60 knots.
Versatile Display Modes on a vivid 4.1" Colour LCD Display
The SABIKI mode lets the autopilot control while you are drifting astern, so you can focus on fishing instead of steering. Maintaining heading astern while compensating for wind and tide, SABIKI mode is uniquely tailored for Sabiki fishing, jigging and bottom fishing.
Other display modes include Furuno's Highway mode, Auto and Advanced Auto modes, and Fish Hunter mode, where one of four pre-programmed manoeuvres can be performed around a specified target at a user selected distance. These include Zig-Zag, Orbit, Figure 8, or a Spiral manoeuvre. The Fish Hunter feature can also be used for Man Overboard (MOB).
Powerful new tools enhance safety and comfort
The optional SAFE HELM and POWER ASSIST features provide a unique interface to the vessel's hydraulic hand steering system, providing unrivaled comfort and control of steering directly from any manual helm on the vessel. These two modes greatly reduce steering effort and enhance the safety of your autopilot. The POWER ASSIST mode incorporates the SAFE HELM concept and provides speed-based, power assisted steering, which greatly reduces manual helm effort in maneuvering situations. POWER ASSIST is a unique helm-activated assisted steering feature that can augment or replace separate electric and power-robbing, engine-driven power steering systems on many vessels. POWER ASSIST reduces steering system complexity and costs while increasing economy. SAFE HELM and POWER ASSIST modes will require the optional FPS8 Power Steering Module and an appropriate HRP Pumpset.
Furuno NavPilot 300 Autopilot System Features::
- Versatile display modes on a vivid 4.1" colour LCD
display
- Self learning and adaptive software
- Fantum Feedback
- Easy installation and Smart network-based system
configuration
- Waterproof processing unit (IP55) and control unit
(IP56)
- Safe Helm and Power Assist
Furuno NavPilot 300 Autopilot System Specifications:
- Display: 4.1" Colour LCD
- Effective Display Area: 85.2 (W) x 85.2 (H) mm
- Pixel Number: QVGA (320 x 240)
- Backlight: 700 cd/m2 typical
- Power supply: 15 VDC 0.29 A max.
- Waterproofing: IP56
Interface
- Ports: NMEA2000 x1, CAN bus x1 (DBW control), Control signal
x3, Bluetooth
- Input: 059392/904, 060160/416/928, 061184,
065240,126208/464/720/992/996, 127237/250/258,
128259,129025/026/029/283/284/285/538,
130577/818/821/827/841
- Output: 059392/904, 060928, 126208/464/720/993/996/998,
127237/245, 130816/821/822/823/827/841
