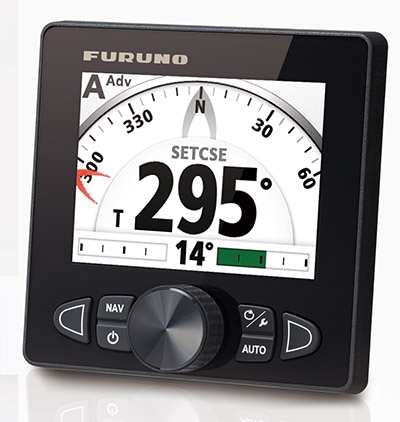

Furuno NAVpilot 711C Fantum Rudder Feedback Adaptive Autopilot System with 4.1in Colour LCD Display

Kick back, relax and let NAVpilot steer you to the destination!

The Furuno NAVpilot 711C Adaptive Autopilot System is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course keeping capability, dynamically adjusting essential parameters for navigation i.e., vessel speed, trim, draught, tide and wind effects, dead band, weather, etc. These parameters are stored in the system memory and continuously optimized.

Sabiki Mode
With the brand new SABIKI mode your NAVpilot 711C has just become even more capable than before. SABIKI mode lets the autopilot take control while you are drifting astern, so you can focus on fishing instead of steering. Moving astern at a slow pace the SABIKI mode is uniquely tailored for sabiki fishing, jigging and bottom fishing.

Fantum Feedback
Furuno's all-new Fantum Feedback NAVpilot software clears the path to a simplied installation, while also delivering enhanced steering control. With Fantum Feedback, NAVpilot outboard installations no longer require use of a physical rudder feedback unit.

Fantum Feedback is a menu-selectable feature available in the latest NAVpilot 700 series software. This new software was developed and extensively tested on a wide variety of outboard vessels with hydraulic steering and reversing pump control. Fantum Feedback achieves precise course control, from slow trolling speeds to high-speed cruising, utilizing a newly developed gain process, rather than traditional rudder angle based control.

Adaptive Software Agorithm
From the first dock-side setup through the last voyage you made, NAVpilot continues to learn your vessel's steering characteristics. This allows dynamic adjustments to the boat's steering for vessel speed, trim, draft, tide and wind effects, weather, etc. These characteristics are stored in the processor's memory where they are continuously optimized to make the NAVpilot more versatile.

Bright and Clear Display
Various display modes are available, allowing you to customize the data to suit your own preferences with either digital or analog graphics. The new NAVpilot 711C features a color day/night graphic display, giving you much better sunlight viewability during the day, while not affecting your night vision when the sun goes down.

Furuno NAVpilot 711C Fantum Rudder Feedback Adaptive Autopilot System Features:

• Perfect for inboard or outboard power boats and sail boats
• SABIKI mode lets the autopilot take control while you are drifting astern
• Furuno Fantum Feedback - allows for no physical rudder feedback unit for a streamlined installation and precise course control
• Simplified activation set-up by on-screen wizard
• Utilises a self-learning and adaptive software algorithm
• Precisioninch XTE accuracy: within 0.003 nm
• Bright and Clear Display
• Simple one-touch mode selection enables flexible steering and course control

Furuno NAVpilot 711C Fantum Rudder Adaptive Autopilot System Specifications:

Control Unit

• Display: 4.1inch Colour LCD
• Effective Display Area: 82.6 (W) x 61.9 (H) mm
• Pixel Number: 320 x 240
• Backlight: 8 steps

Processor Unit (external data required)

• Rudder Angle Adjustment: STBY, Auto, Dodge, Turn, Remote, Advanced auto, Navigation, Wind, Fish Hunter
• Sea Condition Adjustment: AUTO/MANUAL-CALM/MODERATE/ROUGH
• Rudder Angle Setting: 10 - 45 deg
• Alarm: Heading deviation, Cross-track error, Ship's speed, Depth, Water temperature, Wind, Watch, Log trip

Interface

• Ports: CAN bus (NMEA2000): 1, NMEA0183: 2
• Input (NMEA0183): AAM, APB, BOD, BWC, BWR, DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, ROT, RMB, RMC, THS, TLL, VHW, VTG, VWR, VWT, XTE, ZDA
• Input (CAN bus): 059392/904, 060928, 061184, 126208/720/992/996, 127250/251/258/488/489, 128259/267, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/577/818/821/827/880
• Output (NMEA0183): DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, VWT, ZDA
• Output (CAN bus): 059392/904, 060928, 061184, 126208/464/720/992/996, 127237/245/250/251/258, 128259/267, 129025/026/029/033/283/284/285/827, 130306/310/311/312/822/823

Others

• Power Supply: 12-24 VDC: 4.0 - 2.0 A (excluding pump)
• Size: 115 (H) x 115 (W) x 73 (D)
• Weight: 0.33 kg

What's in the Box:

• Furuno NAVpilot 711C Fantum Rudder Feedback Adaptive Autopilot System
• Pilot head unit
• Processor
• Rudder reference unit

Note: Heading sensor and drive unit not included.
