Trojan Disc Brake Hub and Stub Kit 2000kg

#9084521
Warranty Badge - 12-Months
Ships Jan 14 - Jan 29

Seen a lower price? Ask us to beat it

Product Name Price Qty
Trojan Disc Brake Hub and Stub Kit 2000kg 5 x 4-1/2in x 1/2in

Ships Jan 14 - Jan 29

$1,009.00 NOW $919.00
Trojan Disc Brake Hub and Stub Kit 2000kg 6 x 5-1/2in x 1/2in

Ships Jan 14 - Jan 29

$1,009.00 NOW $919.00
Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

Details

Details

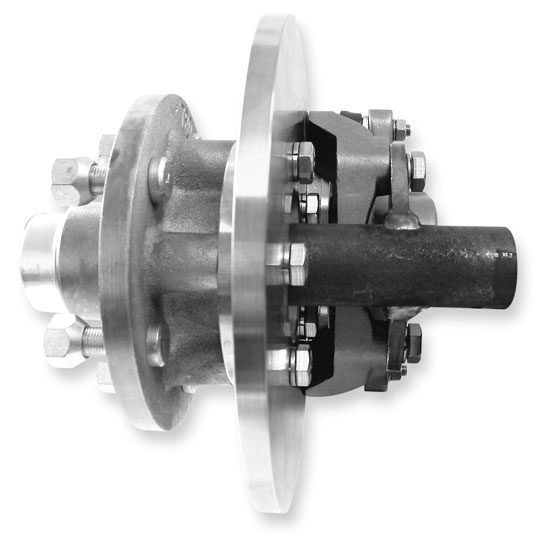

These non braked hub kits are designed to fit Trojan's Duratorque and beam axles but should also fit most NZ manufactured trailer axles. The Hubs have a 2000KG GVM (Gross Vehicle Mass) load rating which is based on a single axle and a pair of hubs. Our range of hubs come in a wide variety of wheel stud patterns to suit the most common wheel sizes. The most common stud pattern 5 Stud with a PCD measurement 4 1/2 inch and fits Trojan's most commonly stocked rims and tyres. The hub kits in this range have a disc rotor as an integral part of the cast iron hub or fitted with a bolt on disc rotor in either cast iron or stainless steel. The rotor diameters is 275mm and use Trojan's standard caliper sets which are sold seperately. There are a pair of 38mm round stub axles included with a built in caliper mount.

Specifications:

PCD Measurement

Part No. Rotor Type Stud PCD diameter Stud width 'x' in mm
T137105 Integral  Blank
T137135 Integral  5  4 1/2 inch  1/2 inch 67.183mm
T137140 Integral  5  120mm  7/16 inch 70.535mm
 T137155 Integral  6  5 1/2 inch  1/2 inch 82.118mm
 T138105 Cast Iron bolt on  Blank
 T138135 Cast Iron bolt on  5  4 1/2 inch  1/2 inch 67.183mm
 T138140 Cast Iron bolt on  5  120mm  7/16 inch 70.535mm
 T138155 Cast Iron bolt on  6  5 1/2 inch  1/2 inch 82.118mm
T138305 Stainless steel bolt on   Blank
T138335 Stainless steel bolt on  5  4 1/2 inch  1/2 inch 67.183mm
T138340 Stainless steel bolt on  5  120mm  7/16 inch 70.535mm
 T138355 Stainless steel bolt on  6  5 1/2 inch  1/2 inch 82.118mm
