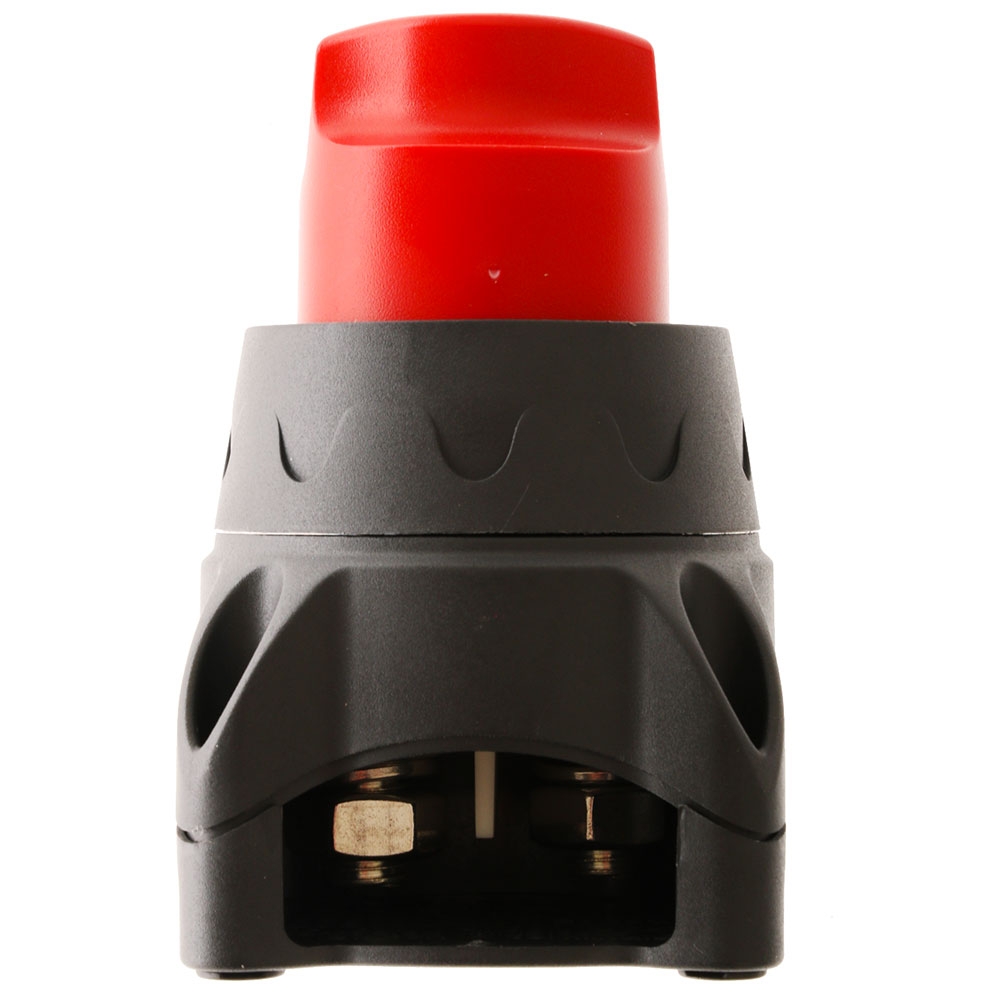

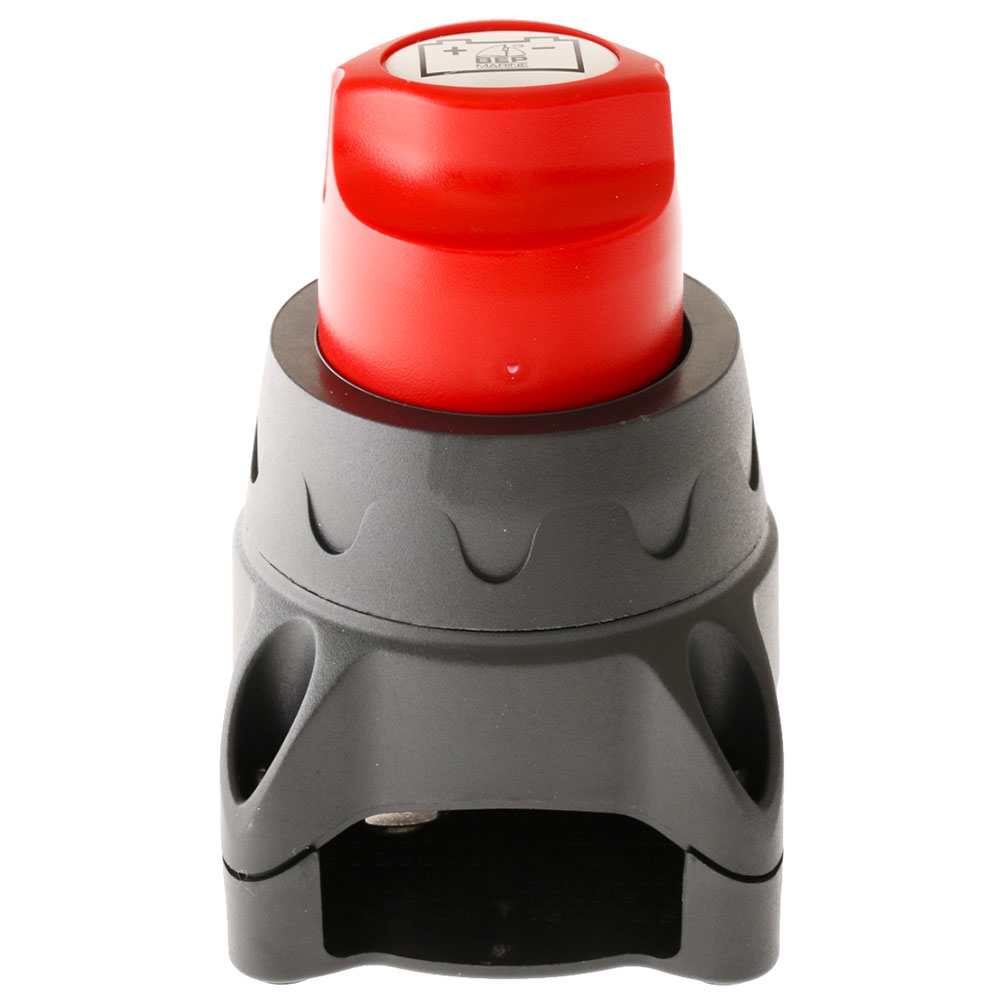

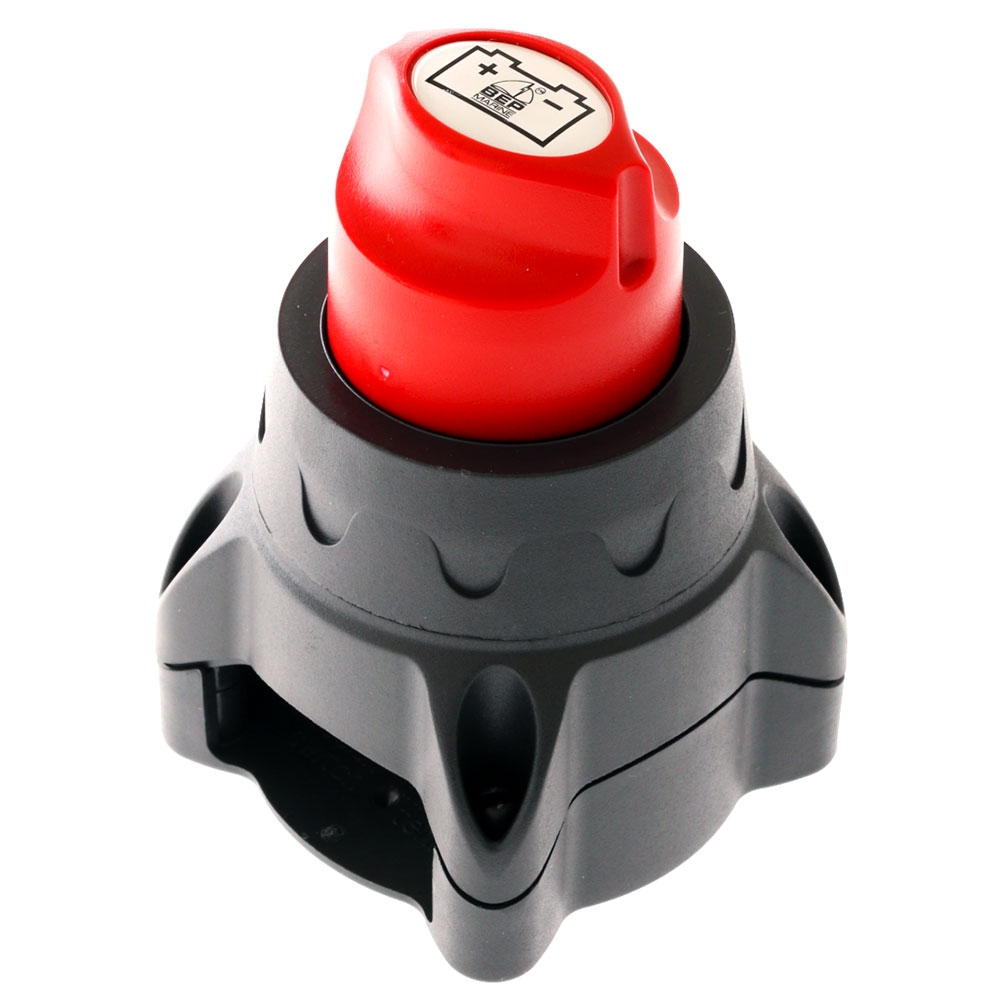

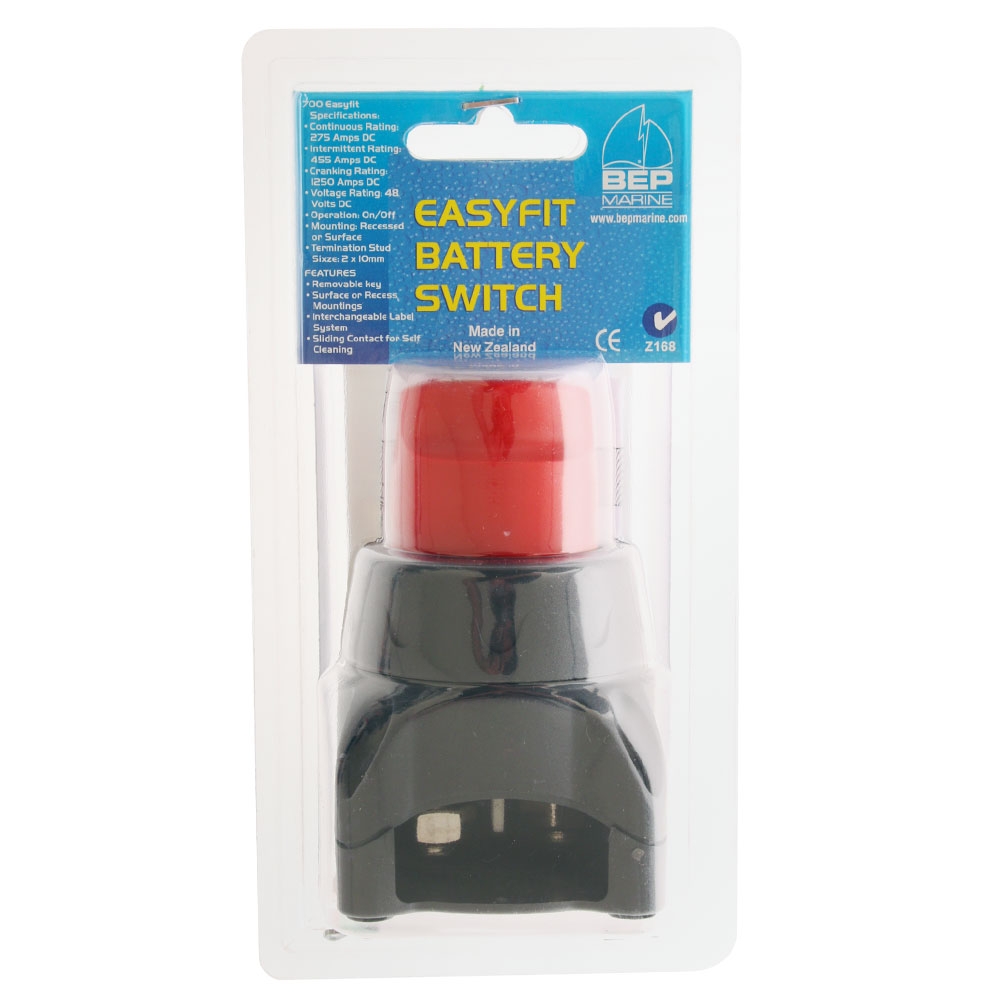

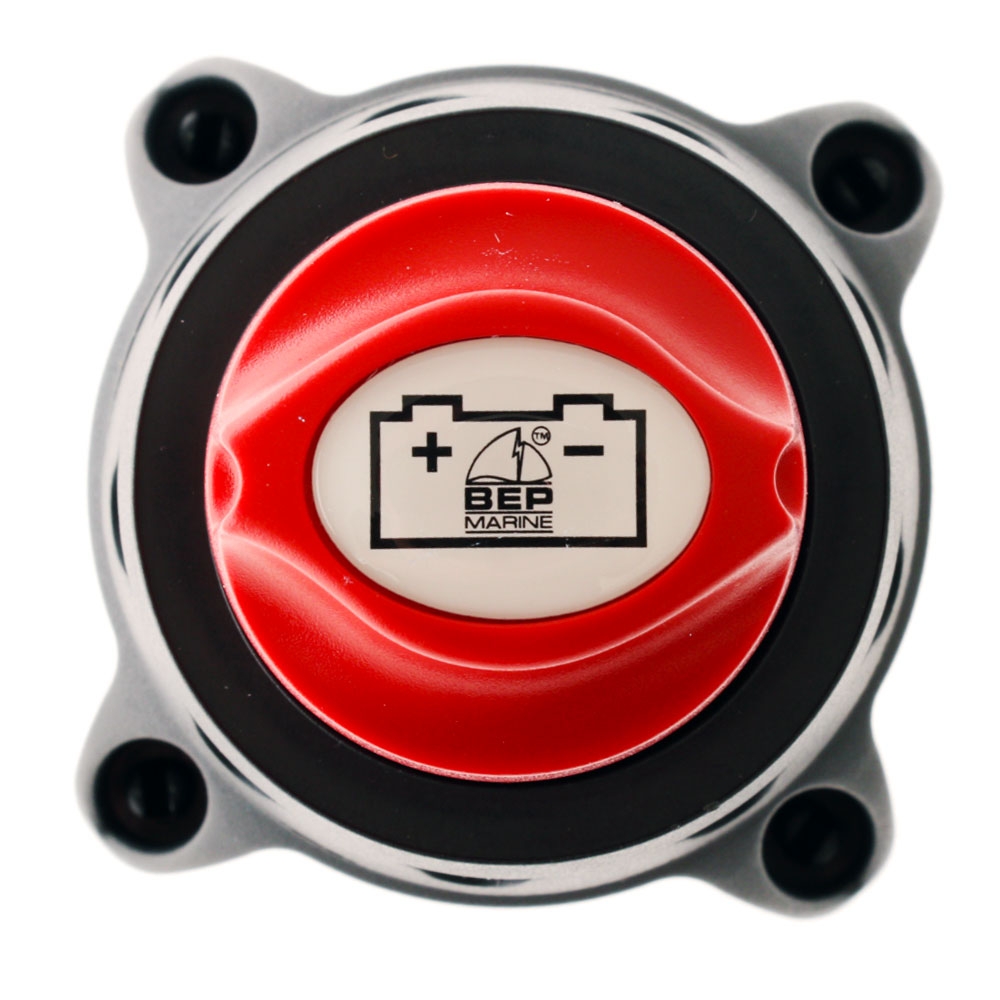

BEP Marine 700 Easy Fit Battery Switch

The best just keeps getting better

After the successful release of the 701, 720 and 721 battery switches, BEP has responded to customer feedback concerning some installations where switches need to be recessed through varying thicknesses of panels.

The BEP Marine 700 Easy Fit Battery Switch achieves this through an easily removable threaded ring allowing for panel thicknesses up to 19mm (3/4inch). It uses the same features as the 701 with the removable key 45-degree past the off position, labelled handle and a removable back cover covering exposed terminals to meet ABYC specifications. The switch can also be surface mounted offering a unique style compared to other switches available on the market.

The BEP Marine 700 Easy Fit Battery Switch can easily be retro - fitted in place of most European post and lever type switches.

BEP Marine 700 Easy Fit Battery Switch Specifications:

• Continuous Rating: 275 Amps DC

• Intermittent Rating: 455 Amps DC

• Cranking (Peak) Rating: 1250 Amps DC

• Voltage Rating: 48 Volts DC

• Operation: On/Off

• Mounting: Recessed or Surface

• Termination Stud Size: 2 x 10mm (3/8 “)

• Tin plated copper studs and nuts

• Ignition protected
