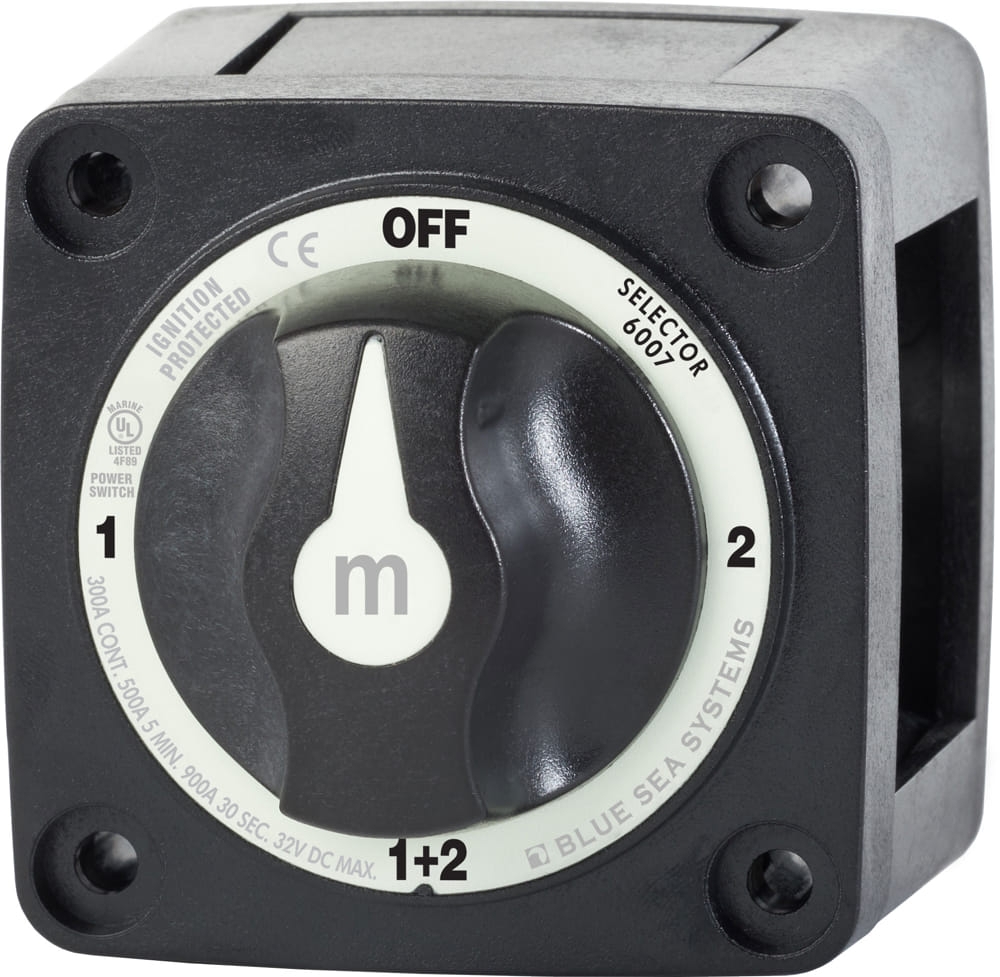

Blue Sea M-Series Battery Switch On/Off/On/Both with Knob Black

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Blue Sea Mini Add-A-Battery Switch and Charging Relay Kit 65A

Blue Sea Mini Add-A-Battery Switch and Charging Relay Kit 65A
ONLY $329.00
Details

Details

Blue Sea Systems m-Series Mini Selector Battery Switch - Black

Model: 6007200-BSS

Features:
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8'' (M10) ring terminals
  • 7/8'' (22mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • Isolating cover with snap-on sections protects rear contacts
  • Case design allows surface, rear, or front panel mounting options
  • Waterproof — rated IP66 from water projected in powerful jets
  • One-piece stainless flange nuts ensure safe and secure connections
  • Breakout tabs allow wire access in any direction
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Make before break contact design allows switching between battery banks without power interruption

Switches isolated battery banks to all loads or combines battery banks to all loads

Specifications
Switch TypeSelector 4 Position
ColorBlack
Switch Positions4
Battery CombineYes
Alternator Field DisconnectNo
Maximum Voltage32vDC
Stud Size3/8''
Terminal Stud Torque120 in-lb (13.56 Nm)
Continuous Rating300A
Intermittent Rating500A (5 min)
Cranking Rating 30 sec900A
Battery Inputs2
Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)
Cable Size to Meet Ratings4/0 AWG (120mm )
Mounting HolesAccept #10 Screw
Stud MaterialTinned Copper
Stud Torque120 in-lb (13.56 Nm)
Terminal Stud Size3/8'' - 16 (M10)
