Easy access hatch

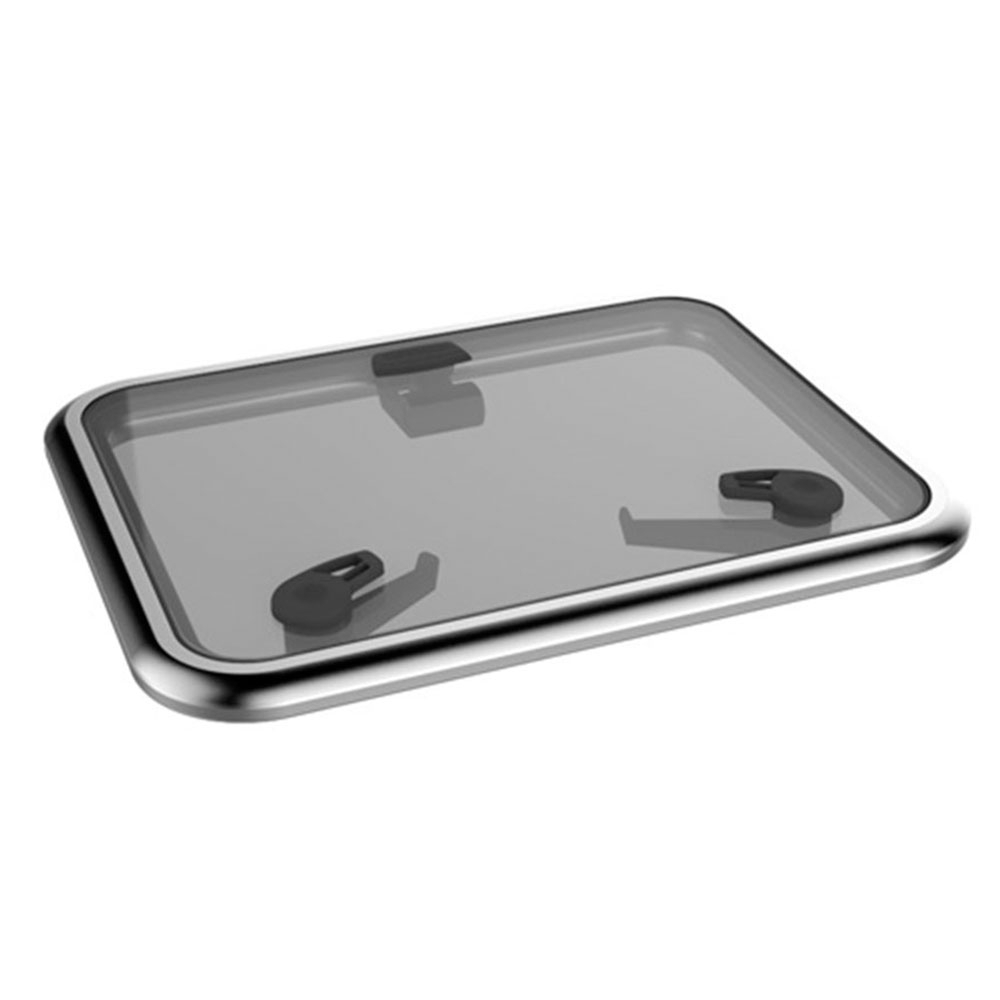

The sleekly designed Lewmar Low Profile Hatch is ideal for use on a powerboat. The hatches are constructed of a two-piece frame with a tough, grey acrylic lens that can be easily replaced simply by unscrewing the frame and inserting a new one. Bonded-on handles under the acrylic lens give a cleaner look on deck and minimize leak paths. Lewmar’s Low Profile hatches come in different sizes, making them a good choice for installation on a variety of boats.
Lewmar Low Profile Hatch Features:

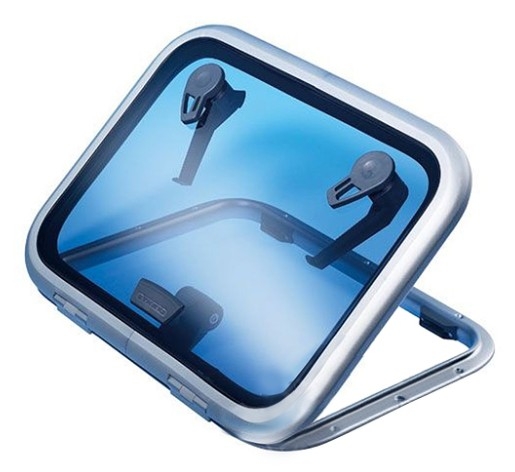

- All Low Profile Hatches have lids which open to 180° and are
self supporting to around 90°
- Hinges flush with upper frame. Friction levers, hold position
up to 95° angle
- Improved stronger lower frame design with higher breakwater.
The cut out in the deck is to Lewmar's standard sizes
- Clear-anodized aluminium frame
- Locking handles with exterior lever, vent position
- Acrylic lens colour: Smoke Grey
Dimensions:
| Size | Length (mm) | Width (mm) | Height (mm) | Radii (mm) | Cut-out Length (mm) | Cut-out Width (mm) | Cut-out Radii (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 10, Flange Base | 330 | 330 | 25 | 72.5 | 260 | 260 | 42.5 | 2.2 |
| 30, Flange Base | 397 | 527 | 25 | 72.5 | 327 | 457 | 42.5 | 3.9 |
| 40, Flange Base | 491 | 491 | 25 | 72.5 | 421 | 421 | 42.5 | 4.6 |
