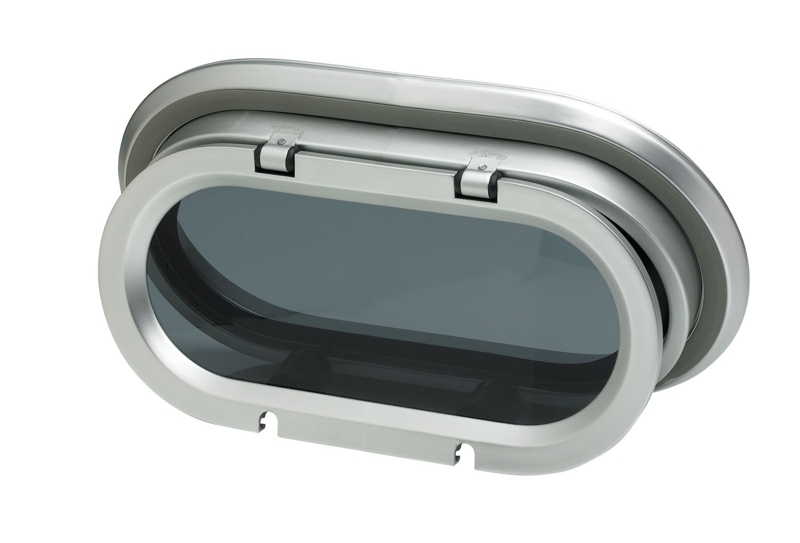

Heavy duty porthole
The VETUS Heavy Duty Oval Aluminium Porthole is suitable for use in the hull side. The 10mm 'smoke' coloured opening pane is set in satin anodised aluminium frame. The clamp fixing ensures that no fasteners are visible from either inside or outside. This porthole can be held open in any position due to the friction type hinges. In closed position knobs ensure water resistance. The porthole can be fitted in a surface with a minimum thickness of 2mm and a maximum thickness of 18mm. As standard a mosquito screen is supplied.
VETUS Heavy Duty Oval Aluminium Porthole Features:
- Suitable for use in the hull side
- 10mm 'smoke' coloured opening pane
- Satin anodised aluminium frame
- Clamp fixing ensures that no fasteners are visible
- Friction type hinges: can be held open in any position
- Water resistant knobs (in closed position)
- Can be fitted in a surface with a minimum thickness of 2mm and
a maximum thickness of 18mm
- Mosquito screen is supplied
VETUS Heavy Duty Oval Aluminium Porthole Specifications:
| Type | External Dimensions | Cut-Out Dimensions | Cut-Out Radius | Type Mosquito Screen |
|---|---|---|---|---|
| PM111 | 244 x 146 mm | 220 x 122 mm | 61 mm | HOR11 |
| PM121 | 294 x 172 mm | 270 x 148 mm | 74 mm | HOR12 |
| PM131 | 344 x 198 mm | 320 x 174 mm | 87 mm | HOR13 |
| PM141 | 362 x 146 mm | 338 x 122 mm | 61 mm | HOR14 |
| PM151 | 390 x 220 mm | 366 x 196 mm | 98 mm | HOR15 |
| PM161 | 399 x 199 mm | 375 x 175 mm | 87 mm | HOR16 |
Product Data Sheet
