Up (Bow & Stern Thrusters) ▲

Side-Power SE60 Tunnel Bow/Stern Thruster 12V 60kg

#9190225
Warranty Badge - 12-Months
Ships Jan 14 - Jan 25
ONLY $2,729.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

💬 Report incorrect product information

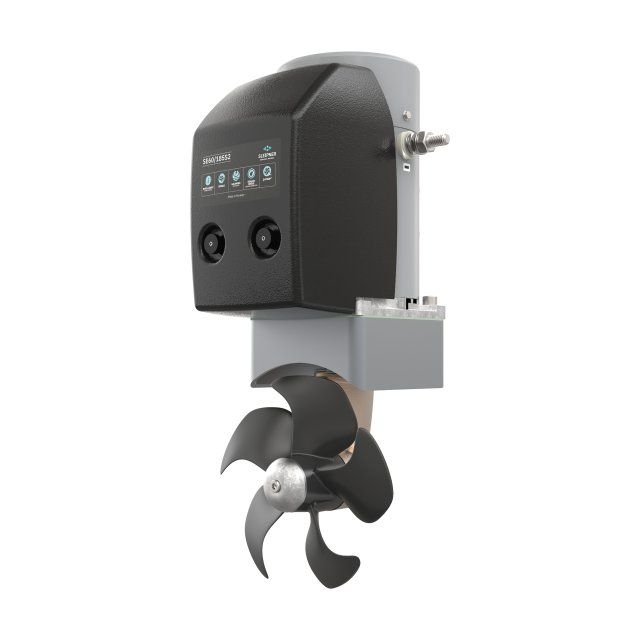

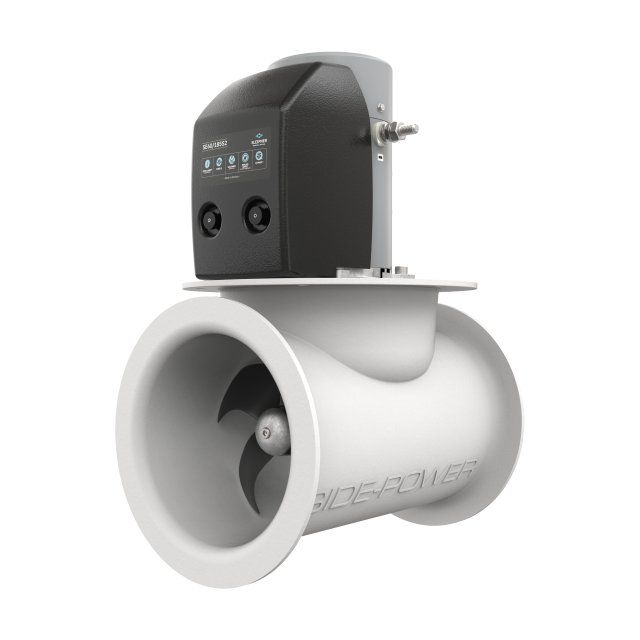

Side-Power SE60 Tunnel Bow/Stern Thruster 12V 60kg

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Vetus BOW PRO Bow Thruster AC 12V

Vetus BOW PRO Bow Thruster AC 12V

Why pay $5,453.19
ONLY $2,499.00
SAVE $2,954.19!
Details

Details

Reliable and energy efficient

The Side-Power SE60 Tunnel Bow/Stern Thruster is one of Sleipner's top-selling bow and stern thrusters typically used on boats between 29 and 38 feet. Includes all the important and unique Sleipner features and qualities - why settle for less?

Side-Power SE60 Tunnel Bow/Stern Thruster Features:
  • Q-PROP
  • Intelligent power control provides a minimal delay between drive directions to reduce wear of the mechanical parts while monitoring solenoid functions
  • Overheat protection
  • Analog signal cables with Plug & Play connectors are colour-coded to match the wiring diagrams
  • Galvanic isolated from the onboard electrical system, eliminating stray currents
  • Sealed drive lubrication
  • Flexible coupling
  • Single propeller - compact design fits easily into narrow bows

Side-Power SE60 Tunnel Bow/Stern Thruster Specifications:
Power
  • Power source: Electric
  • Rated voltage: 12V DC
  • Nominal voltage: 10.5V DC
  • Power output: 3.1kW / 4hp
  • Thrust at 12V: 73kg / 161lbs
  • Thrust at 10.5V: 60kg / 132lbs
  • Nominal current draw: 370A
  • Min. battery CCA (DIN): 350
  • Min. battery CCA (SAE): 665
  • Min. battery CCA (EN): 600
  • Recommended fuse: ANL 325

Operation
  • Ideal vessel class: Motor boat, Sail boat
  • Ideal vessel size: 8-11m / 27-37ft
  • Bow capability: Yes
  • Stern capability: Yes
  • Retractable capability: No
  • External mounting capability: No
  • Tunnel capability: Yes

Measurements
  • Weight: 15kg / 33lbs
  • Dimensions (HxLxW): 272 x 208 x 199mm / 10.7 x 8.19 x 7.8in
  • Internal Diameter (ID): 185mm / 7.3in
  • Water Depth (WD): 185mm / 7.3in
  • Recommended Tunnel Length (TL): 165mm / 6.5in
  • Minimum Tunnel Length (TL min.): 128mm / 5in
  • Minimum Tunnel Wall Thickness (T min.): 4mm / 0.16in
  • Maximum Tunnel Wall Thickness (T max.): 6mm / 0.24in

Stern Measurements
  • H: 200mm / 7.87in
  • Internal length (L): 231mm / 9.1in
  • Tunnel length (+L): 265mm / 10.4in
  • W: 335mm / 13.19in
  • Diameter (D): 204mm / 8.03in
  • Stern water depth (WD): 185mm / 7.3in
  • Maximum hull thickness (HT): 43mm / 1.7in

Side-Power SE60 Tunnel Bow/Stern Thruster User Manual

Advisory on the images used for this listing: The images used in this product listing are based on information provided to us by our suppliers and may represent a product range, or be for illustration purposes only, and may not be an exact representation of the product, and therefore should be used as a general guide only.


Some of our product deals are strictly limited - once they're gone, they're gone! Secure yourself this amazing deal while stocks last...by clicking the Add to Order button above.
