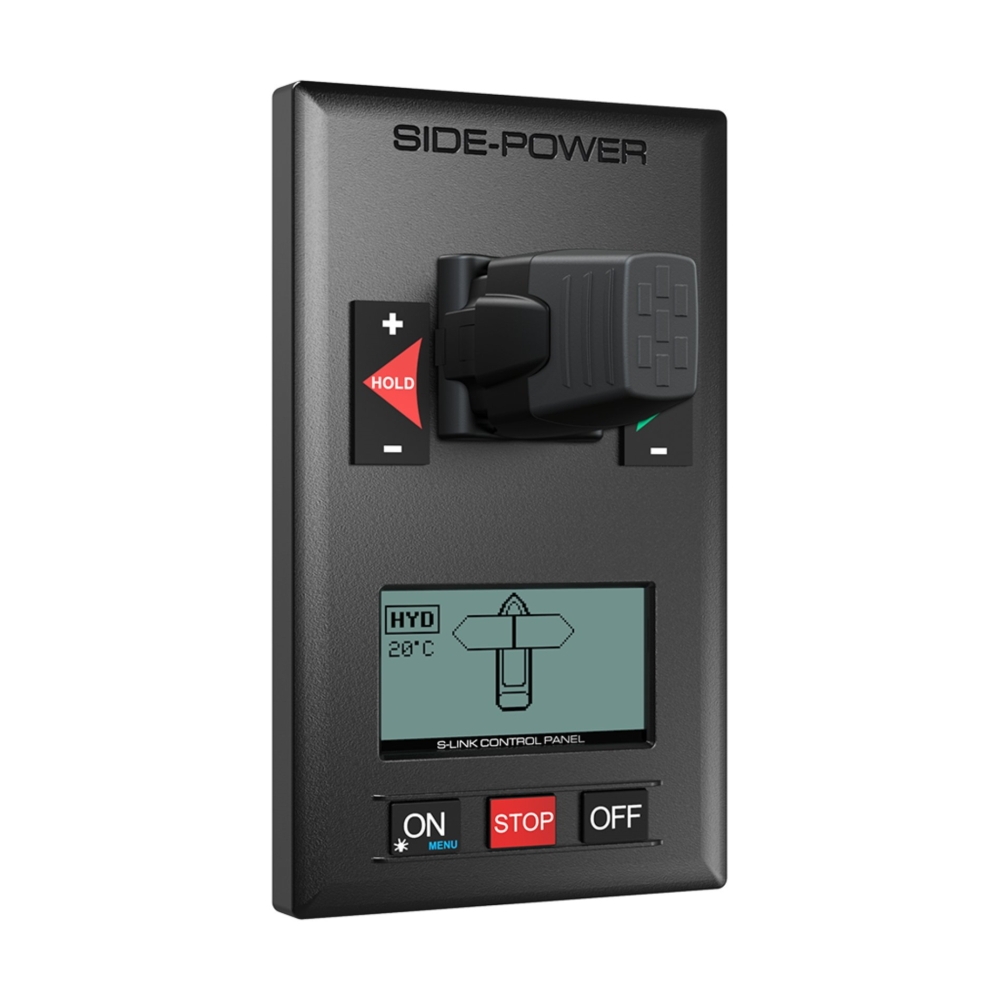

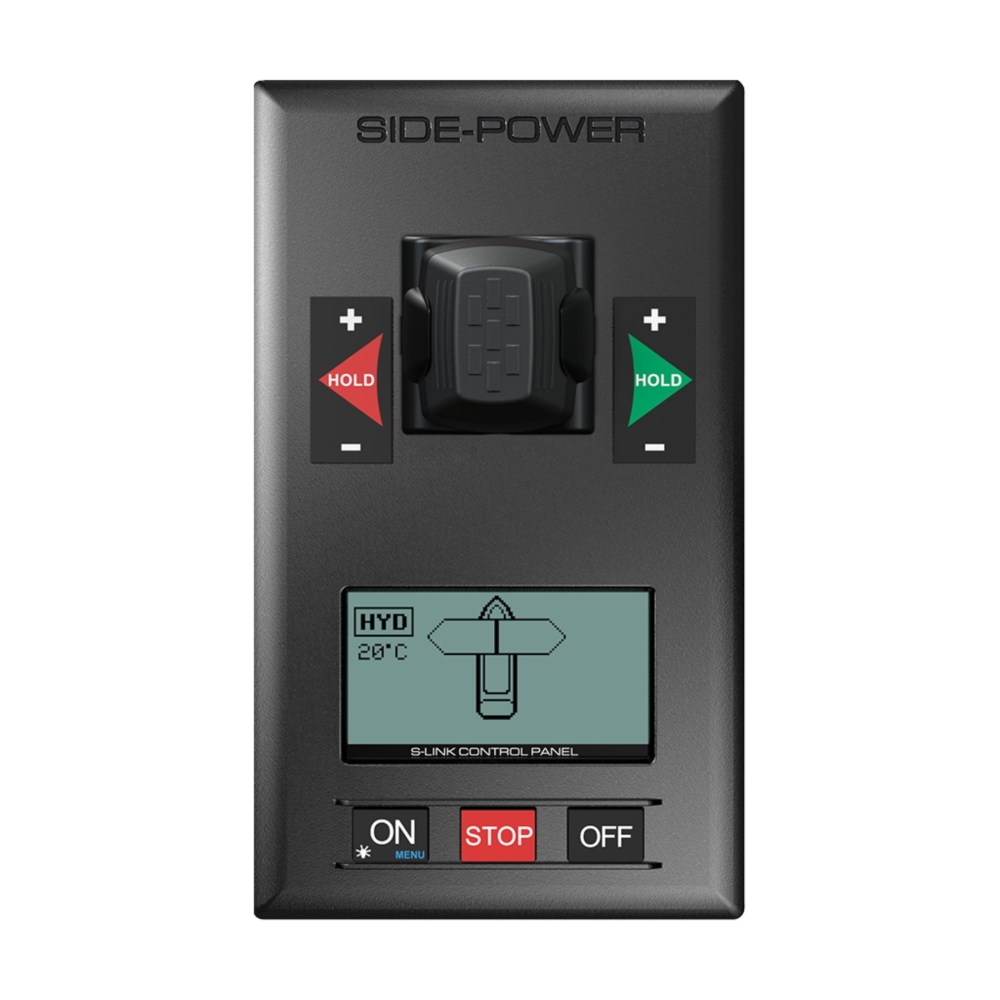

Side-Power Single Joystick S-Link Control Panel
Side-Power Single Joystick S-Link Control Panel
Buy now, pay later & Finance Options
Find Local Store
Single joystick for hydraulic thrusters with variable speed control and hold-feature.
The intelligent LCD panel displays real-time information such as the amount and direction of thrust, remaining run time, oil temperature, and pressure read-out.
Features:- Interactive multi-language menus
- System setup via wizard
- Diagnostics via panel/computer interface
- Built-in audible alarm buzzer
- Connector for external buzzer/loud audible alarms
- CAN-bus communication with thrusters and accessories
- Plug-and-go caples, sealed, and compact connectors
Supports retractable thrusters with or without variable speed control. Read more about the significant product features below.
Properties
HOLD-FUNCTION
Docking your vessel has never been easier. When pressing the hold button, you can rely on the thrusters to maintain the boat controlled against the dock while stepping off to secure the lines - making docking truly a one-person job.
DC ELECTRICAL CURRENT
Powered by direct current
SMART SHUT-OFF
Sleipner control panels are programmed to shut down automatically after approximately 6 minutes without use. This avoids accidental activation of Sidepower's products, improving safety.
EMERGENCY STOP
With safety at the forefront, this product comes with an emergency stop button to quickly shut down the system with a single button press.
SPLASH-PROOF
This product is manufactured for installations in environments that may experience moist or occasional splashes.
UV-PROTECTION
Constructed from UV-resistant material providing additional protection from the damaging effects of ultraviolet light from the sun.
PRO - VARIABLE SPEED CONTROL
A PRO thruster system with variable speed control allows for more precise handling of the boat in all conditions, applying only the necessary power needed to complete your maneuver confidently.
By limiting the power under normal weather conditions, noise levels are significantly reduced. The system also includes a practical hold-function in a twin thruster system. With a single press of a button, the bow and stern thruster will keep you alongside the docks - making docking truly a one-person job. PRO thrusters are the best choice for joystick interaction.
A PRO system contains three main elements - a control panel, a power control unit, and a DC electric thruster - all tied together with the S-link control system. All mechanical and main electric parts are from the well-proven thruster range produced by Sleipner for many years.
All of Sleipner's 12 and 24 volt DC electric thrusters can be enabled for variable speed control by authorized Sleipner service personnel, even past models.
S-LINK
S-Link is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.
Features:- Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
- Unlimited number of commands or information transferred on a single cable
- User feedback on the panel
- Intelligent troubleshooting
Specifications:
| Power | Value |
|---|---|
| Operating Power | Electric |
| Power Requirement | 12V, 24V |
| Operational Intention | Value |
|---|---|
| Ideal Vessel Class | Motor boat, Sail boat |
| Control Panel | Value |
|---|---|
| Operating Power Systems | Hydraulic Systems |
| Functionality | Proportional systems |
| Operates | 1x Thruster |
| Operate Systems | Thruster Systems |
| Panel Color | Black |
| Measurements | Value |
|---|---|
| (H) Height | 141mm / 5.55in |
| (W) Width | 83mm / 3.3in |
| (a) | 65.66mm / 2.6in |
| (b) | 31.8mm / 1.25in |
