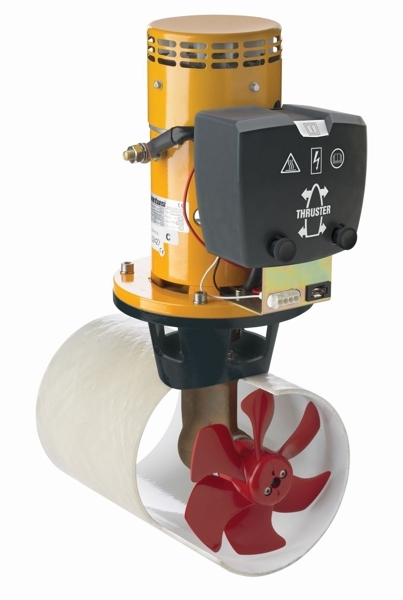

VETUS Bow Thruster 75kgf 24V
VETUS Bow Thruster 75kgf 24V
Buy now, pay later & Finance Options
Find Local Store
- A single propeller creates less flow disturbance in the tunnel
- The VETUS unique propeller blade design minimises cavitation noise
- Spiral gears minimise transmission noise
- The use of a flexible coupling between tail piece and motor eliminates vibration
- All VETUS systems use a streamlined tail piece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install, supplied with clear installation and operation instructions
- VETUS systems use a new line of high quality aluminium control panels which are interchangeable with older panels
- All VETUS manoeuvring systems meet the EMC requirements
Specifications:
| Voltage (V) | 24 V DC |
|---|---|
| Ignition protection | No |
| Thrust (N / kgf) | 850 / 85 |
| Power (kW) | 6 |
| Motor, reversible D.C. | Yes |
| Internal tunnel diameter (mm) | 185 |
| Weight (kg) | 26 |
| Current consumption (A) | 280 |
| Continuous operating time (min) | 2 |
| Max. operating time (minutes) | 2 |
| Main fuse 'slow blow' (A) | 200 |
| Batteries 12 V, min./max. Ah | 2 x 150 / 2 x 143 |
| Battery cables, length pos./neg. cables (m/mm) | 0-8/70 / 8-11/95 |
| Battery main switch: model BATSW / type BPMAIN | 250 / 24 |

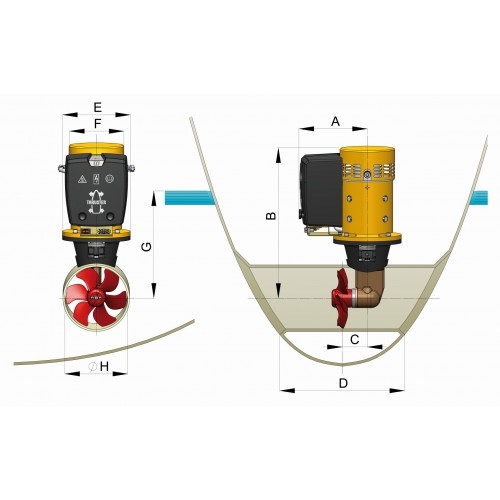

| Size A in mm, see drawing | 155 |
| Size B in mm, see drawing | 435 |
| Size C in mm, see drawing | 77 |
| Size D min./max. in mm, see drawing | 370 / 740 |
| Size E in mm, see drawing | 200 |
| Size F, diameter in mm, see drawing | 135 |
| Size G min. in mm, see drawing | 185 |
| Size H, diameter in mm, see drawing | 185 |
Product Data Sheet
Note: This listing is for the VETUS Bow Thruster ONLY. This is not a complete kit. Tunnel, data cable, control panel, fuse and fuse holder is still needed. Please note thruster packages are spec’d up individually to suit each customer’s needs. Please contact a Marine Deals sales specialist to ensure you get the complete and ideal components for your build. Contact our sales team via: 0800 633 257 / 09 281 3150 (NZ) or 1800 154 713 (AU)
