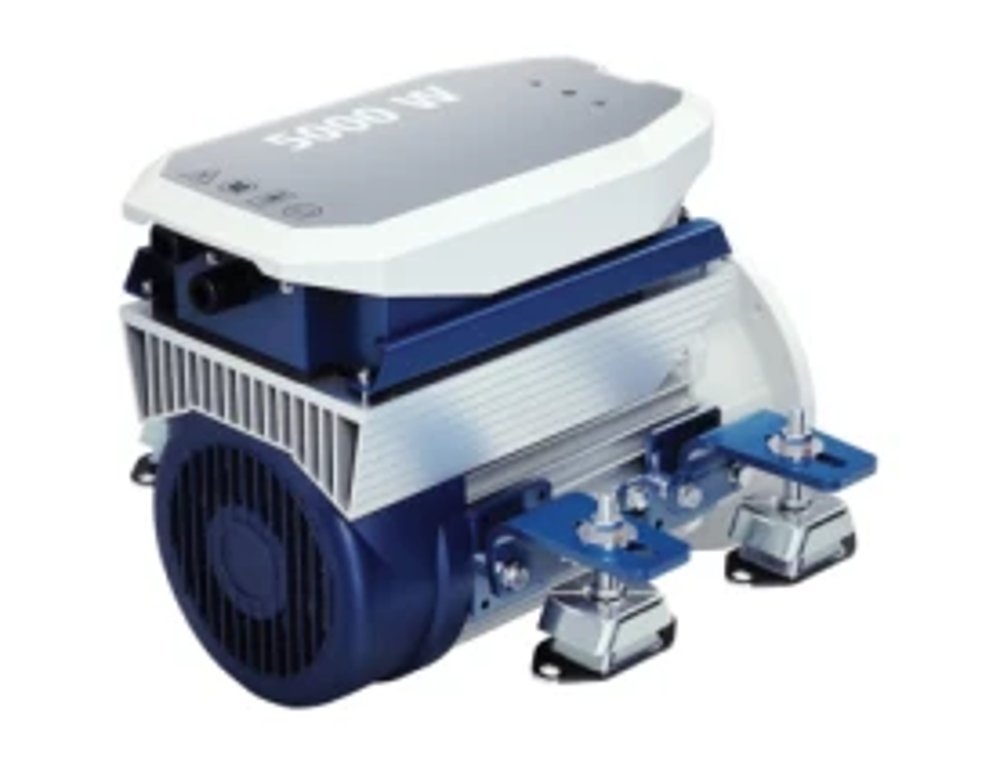

VETUS E-LINE Air Inboard Electric Propulsion Motor 5kW 24V

Details

Details

The E-line 5kW 24V Inboard Electric Propulsion Motor is an air-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce energy consumption.

The E-Line Air 5kW 24 Inboard Electric Propulsion Motor brings you peace and tranquility when cruising on the water without being distracted. Designed to be energy-efficient, the system requires less battery capacity compared to traditional electric motors. This facilitates a more compact installation, without compromising on performance. To ensure performance and prevent overheating, the motor is equipped with an active air cooling system. This helps maintain a stable operating temperature. Having the cooling system fully integrated enhances overall user-friendliness and ease of installation. The motor features Active Electronic Braking, which offers rapid deceleration and precise control, enhancing safety and maneuverability. With a peak power of 7,9 kW, you'll have the acceleration you desire. Whether you're exploring open waters or navigating tight spaces, this motor will provide the responsiveness you need.

Supplied With

• Swap and Go motor brackets and motor mounts type EMX65.
• Integrated thrust bearing.
• Mounting flange 4' suitable for Combiflex 12, Bullflex type 1.
• MPE1KB key switch - all-in-one solution; V-CAN power supply, external 12 VDC power supply and anti-theft.
• MPE1MBV monitoring panel - V-CAN monitoring, battery indication, motor alarms and motor status.
• IV4812360 converting 48 VDC to the required V-CAN power supply 12 VDC.

Additional Parts Required

• One of the E-Drive V-CAN with different propulsion modes to enable the right power at the right moment.

Advanced Monitoring Sets

• Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and positioning you can become the master of your vessel.
• Choose from a wide variety of that suit your needs the best.

Specifications:

Length (mm)	518/td>
Max. speed (RPM)	1300
Voltage (V)	24
Weight (kg)	68
Maximum input current draw	280 A
Height (mm)	380
Width (mm)	504
Maximum output power	5,5 kW
Motor type	Brushless induction motor
Max. torque (Nm)	40
Cooling systems	Air-cooled
Indicative comparable combustion engine (hp)	11 hp
Indication for suitable boat length	Up to 6,5 meters (21 feet) or 2,5 ton
Indicative energy consumption	1,2 kWh @ 6 km/u (3,5 knt)
CAN bus	V-CAN

Product Data Sheet
