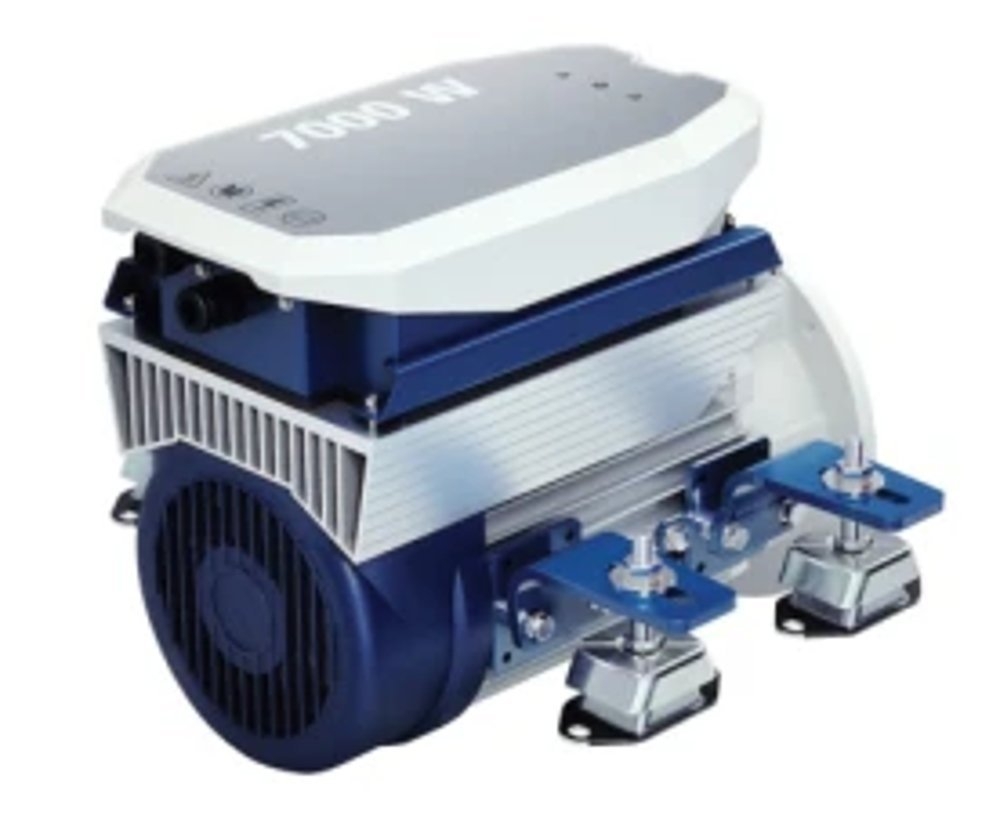

VETUS E-LINE Air Inboard Electric Propulsion Motor 7kW

Details

Details

The E-line 7kW Inboard Electric Propulsion Motor is an air-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce energy consumption.

.vetus.com/en/products/electric-propulsion/monitoring' >monitoring sets that suit your needs the best.

Specifications:

Length (mm)	518
Length (mm)	518
Max. speed (RPM)	1450
Max. speed (RPM)	1450
Voltage (V)	48
Voltage (V)	48
Weight (lbs)	150
Weight (kg)	68
Weight (kg)	68
Length (inches)	21
Maximum input current draw	220 A
Maximum input current draw	220 A
Height (inches)	15
Height (mm)	380
Height (mm)	380
Width (mm)	504
Width (mm)	504
Maximum output power	7,4 kW
Maximum output power	7,4 kW
Motor type	Brushless induction motor
Motor type	Brushless induction motor
Max. torque (Nm)	55
Max. torque (Nm)	55
Width (inch)	20
Cooling systems	Air-cooled
Cooling systems	Air-cooled
Indicative comparable combustion engine (hp)	16 hp
Indicative comparable combustion engine (hp)	16 hp
Indication for suitable boat length	Up to 8 meters (26 feet) or 5 ton
Indication for suitable boat length	Up to 8 meters (26 feet) or 5 ton
Indicative energy consumption	1,1 kWh @ 6 km/u (3,5 knt)
Indicative energy consumption	1,1 kWh @ 6 km/u (3,5 knt)
CAN bus	V-CAN
CAN bus	V-CAN

Product Data Sheet

Bulk Items Shipping

This item is classified as a Bulk item and must be processed by a specialised courier.
Please therefore allow an extra 1-7 days above the usual shipping time.

Shipping Rates for Bulk Items
