VETUS E-LINE Inboard Electric Propulsion Motor 11kW

Details

Details

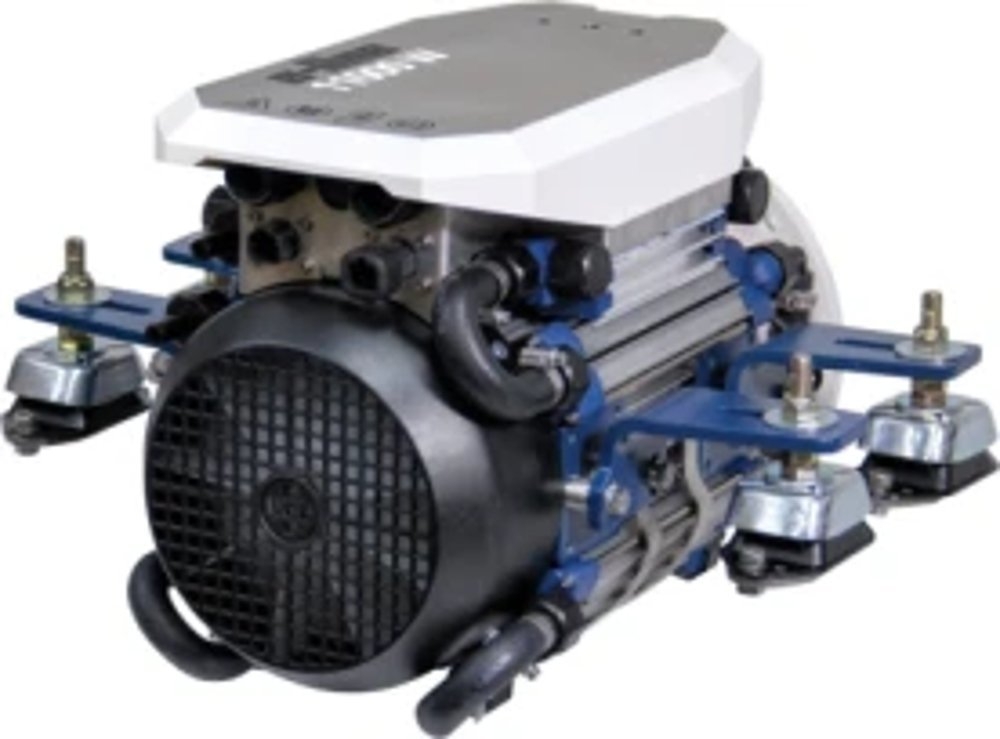

The E-line 11kW Inboard Electric Propulsion Motor is a liquid-cooled, low-maintenance electric boating solution. The optimised design provides the highest efficiency in its class, offering you more time to traverse the waters on a single charge and reduce energy consumption.

Advanced Monitoring Sets

• Find additional digital monitoring sets that can upgrade your boating experience to a whole new level. With displays to indicate precise movement and positioning you can become the master of your vessel.
• Choose from a wide variety of monitoring sets that suit your needs the best.

Specifications:

Length (mm)	485
Length (mm)	485
Max. speed (RPM)	1600
Max. speed (RPM)	1600
Voltage (V)	48
Voltage (V)	48
Weight (lbs)	156
Weight (kg)	71
Weight (kg)	71
Length (inches)	19
Maximum input current draw	295 A
Maximum input current draw	295 A
Height (inches)	13
Height (mm)	335
Height (mm)	335
Width (mm)	504
Width (mm)	504
Maximum output power	11,2 kW
Maximum output power	11,2 kW
Motor type	Brushless induction motor
Motor type	Brushless induction motor
Max. torque (Nm)	70
Max. torque (Nm)	70
Width (inch)	20
Cooling systems	Liquid cooled
Cooling systems	Liquid cooled
Indicative comparable combustion engine (hp)	22 hp
Indicative comparable combustion engine (hp)	22 hp
Indication for suitable boat length	Up to 11 meters (36 feet) or 7 ton
Indication for suitable boat length	Up to 11 meters (36 feet) or 7 ton
Indicative energy consumption	1 kWh @ 6 km/u (3,5 knt)
Indicative energy consumption	1 kWh @ 6 km/u (3,5 knt)
CAN bus	V-CAN
CAN bus	V-CAN

Product Data Sheet
