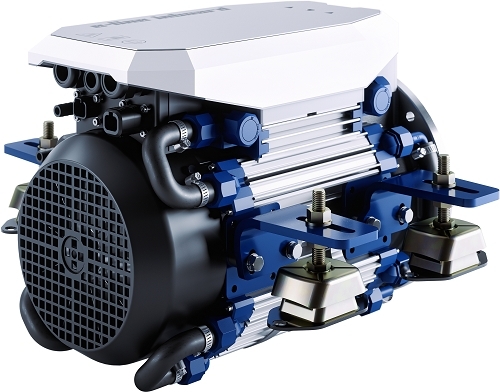

VETUS E-Line Inboard Propulsion Motor 10kw

Details

Details

This type engine is suitable for boats up to 11 meter or73 ton! With a rpm of 1500 in normal mode to 1600 rpm in power mode and a maximum torque of 45 nautic miles.

• MPE1KB key switch - all-in-one solution; V-CAN power supply, external 12V power supply and anti-theft
• MPE1MB monitoring panel - V-CAN monitoring, battery indication, motor alarms and motor status
• Available with closed circulation keel cooling system
• Swap and Go motor brackets and m otor mounts type EMX65
• Integrated thrust bearing
• Mounting flange 4 suitable for COMFL, BULFL01

Read all detailed information about the VETUS E-Line here: https://www.vetus.com/en/electric-propulsion-product-informatio nThe largest version of the E-Line engine family, with a 11,2 kw peak power and equipped with Active Electronic Breaking!
Specifications:

Length (mm)	485
Max. speed (RPM)	1600
Weight (kg)	71
Maximum input current draw	295
Height (mm)	335
Width (mm)	504
Maximum output power
Motor type	Brushless induction motor
Max. torque	70 Nm
Cooling systems	Air and liquid cooled +++
Indicative comparable combustion engine
Indication for suitable boat length	up to 11 meter or 7 ton
Indicative energy consumption
CAN bus	V-CAN

Product Data Sheet
