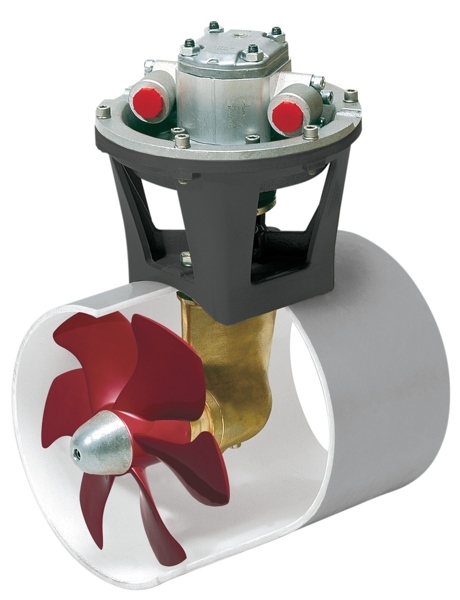

VETUS Hydraulic Bow Thruster 160kgf with 9.5kw Hydro Motor
VETUS Hydraulic Bow Thruster 160kgf with 9.5kw Hydro Motor
Buy now, pay later & Finance Options
Find Local Store
This hydraulic motor is driven by a hydraulic pump, if a hydraulic pump and associated tank are already installed on board, then, in most cases,this assembly can be used for driving the bow thruster too.
Some marine engine manufacturers, e.g. VETUS DEUTZ, supply as standard a special PTO (Power Take Off) connection, which greatly simplifies the installation of the hydraulic pump.
In addition to the pump and the hydraulic storage tank, VETUS can also supply the required load sensing and control devices, as well as the high pressure hydraulic hoses, complete with end fittings.
In addition to the pump and the hydraulic storage tank, VETUS can also supply the required load sensing and control devices, as well as the high pressure hydraulic hoses, complete with end fittings.
This hydraulic bow thruster may be fitted to a GRP, steel or aluminium tunnel or used as a stern thruster using the appropriate installation kit. The three most powerful VETUS hydraulic bow thrusters can also be powered using a specially prepared diesel power pack, instead of a pump on the main engine. In this case, the matching hydraulic pump will be supplied as part of the power pack. Installing a power pack on board can considerably reduce the required generator set capacity by operating hydraulic functions which are normally electrically powered.
Specifications:
| Thrust (N / kgf) | 1600 (160) |
|---|---|
| Hydraulic motor power (kW) | 9,5 |
| Hydraulic motor capacity (ccubic metre/rev) | 7,0 |
| Flow rate (litres/minute) | 24 |
| Operating pressure (bar) | 250 |
| Diameter A (mm) | 240 |
| Length B (mm) | 345 |
| Diameter C (mm) | 250 |
Product Data Sheet
Note: This listing is for the VETUS Bow Thruster ONLY. This is not a complete kit. Tunnel, data cable, control panel, fuse and fuse holder is still needed. Please note thruster packages are spec’d up individually to suit each customer’s needs. Please contact a Marine Deals sales specialist to ensure you get the complete and ideal components for your build. Contact our sales team via: 0800 633 257 / 09 281 3150 (NZ) or 1800 154 713 (AU)
