VETUS Ignition Protected Bow Thruster 95kgf 12V

Details

Details

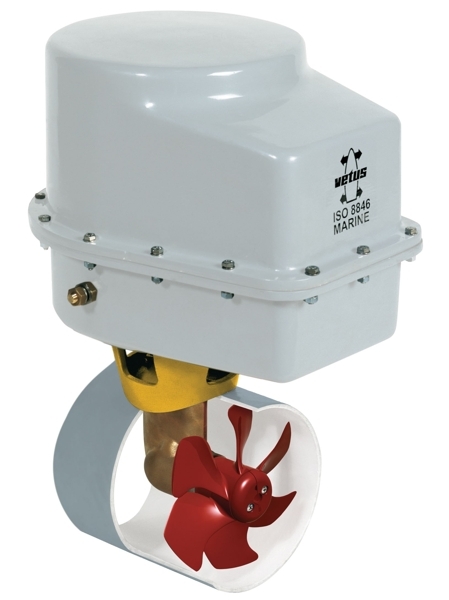

Installing an electric bow or stern thruster in a petrol (gasoline) engined boat can be very dangerous, due to the possibility of the electric motor igniting fuel vapour. In order to eliminate the risk, this special housing will shield the bow or stern thruster from potentially explosive vapour.

The housing enables the thruster to comply with the ISO 8846 Marine ignition protection standard. In addition to the standard thruster, the set consists of a watertight (IP65) housing for the electric motor and relays, together with all required seals, electrical connectors and fastening components.

An automatic fuse for the control loom is also supplied. This can be reset externally without opening the housing. For both 12 and 24 volt supply. They can also be used as stern thrusters, in combination with the appropriate kit.

Because the motor housing is watertight, these sets are also ideal for use where the bow or stern thruster is installed in a wet or humid space.

Specifications:

Voltage (V)	12 V
Ignition protection	Yes
Thrust (N / kgf)	950 / 95
Power (kW)	5,7
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	185
Weight (kg)	30
Current consumption (A)	610
Continuous operating time (min)	3
Max. operating time (minutes)	3
Main fuse 'slow blow' (A)	425
Batteries 12 V, min./max. Ah	1x165 / 2x145
Battery cables, length pos./neg. cables (m/mm)	0-10 / 95, 10-12 / 120
Battery main switch: model BATSW / type BPMAIN	600 / 12

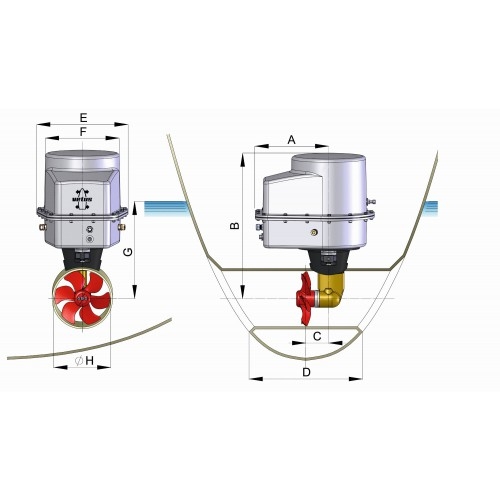

Size A in mm, see drawing	238
Size B in mm, see drawing	460
Size C in mm, see drawing	77
Size D min./max. in mm, see drawing	370 / 740
Size E in mm, see drawing	296
Size F, diameter in mm, see drawing	240
Size G min. in mm, see drawing	185
Size H, diameter in mm, see drawing	185

Product Data Sheet
