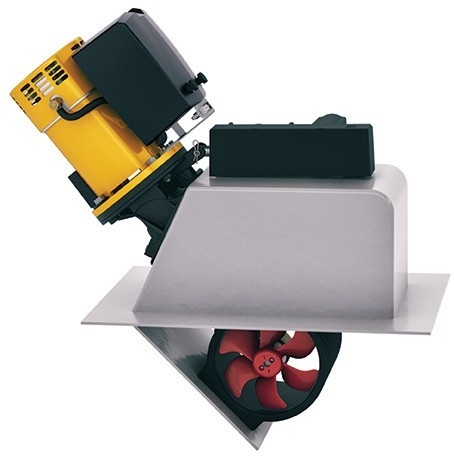

VETUS STE6012D Swing Electric Bow Thruster 60kgf 12V
VETUS STE6012D Swing Electric Bow Thruster 60kgf 12V
Buy now, pay later & Finance Options
Find Local Store
Easy docking, no drag, less noise
Even for the more experienced skipper, it can be difficult to manoeuvre the boat in harsh wind conditions and strong currents. The new line of retractable VETUS Swing Electric Retractable Bow Thrusters can be placed in shallow parts of the hull and will not disturb its smooth lines. This low drag solution will make your docking experience easier, faster and just plain more enjoyable.
Note: VETUS bow thruster panel sold separately.
A retractable thruster has the following advantages:
- Ideal to use when there is insufficient draft to install a
regular thruster and/or to not disturb the lines of the
hull
- Optimum forward placement in the bow, while maintaining depth
by deployment
- Less noise and vibration as it is not directly connected to the
hull
- Optimum tunnel length with minimal losses
- Virtually no marine growth, as there is no light when thruster
is in retracted and closed position
- May be placed in the stern in (both sailing and motor) boats
where it is not possible to install a tunnel thruster
- Less drag as the lid is flush to the hull
- Small dimensions
- Suitable for power vessels up to 20 metres
VETUS Swing Electric Retractable Bow Thruster Features:
- Patented design (swivel point) - thruster rotates as one
unit
- Optimised tunnel ergonomics
- Submerged parts are non-corrosive
- Childproof safety
- Automatic deployment and retracting
- Safety pin protection for lid overload
- Electronically prepared for communication based on CAN
protocol
- Built-in time lapse device when reversing direction of
rotation
- Fast deployment/ retracting time
- Prevents jamming, overload, and blocking
VETUS Swing Electric Retractable Bow Thruster Specifications:
- Model number: STE6012D
- Voltage (V): 12V
- Thrust (N / kgf): 650/65
- Power (kW): 3
- Motor, reversible D.C: Yes
- Internal tunnel diameter (mm): 185
- Weight (kg): 28
- Current consumption (A): 280
- Continuous operating time (min): 5
- Max. operating time (minutes): 5
- Main fuse 'slow blow' (A): 200
- Batteries 12 V, min./max. Ah: 1x105/1x145
- Battery cables, length pos./neg. cables (m/mm): 0-11/50
11-16/70
- Battery main switch: model BATSW / type BPMAIN: 250
- Dimensions, closed (H x L x W): 330 x 722 x 273mm
- Dimensions, opened (H x L x W): 420 x 641 x 273mm
VETUS Swing Electric Retractable Bow Thruster Manual
Note: This listing is for the VETUS Bow Thruster ONLY. This is not a complete kit. Tunnel, data cable, control panel, fuse and fuse holder is still needed. Please note thruster packages are spec’d up individually to suit each customer’s needs. Please contact a Marine Deals sales specialist to ensure you get the complete and ideal components for your build. Contact our sales team via: 0800 633 257 / 09 281 3150 (NZ) or 1800 154 713 (AU)
