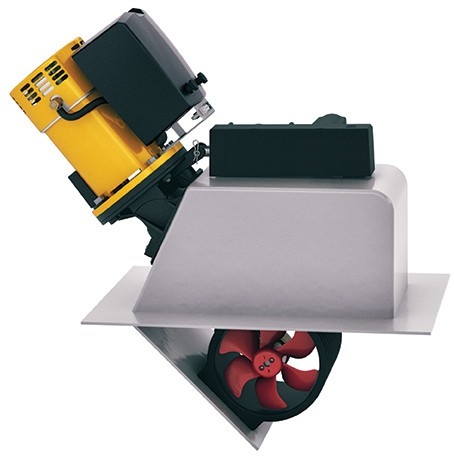

VETUS STE7512D Swing Electric Bow Thruster 75kgf 12V

• Details
• Specifications
• Features
• Reviews
• Questions About Product

Details

Details

Easy docking, no drag, less noise

Even for the more experienced skipper, it can be difficult to manoeuvre the boat in harsh wind conditions and strong currents. The new line of retractable VETUS Swing Electric Retractable Bow Thrusters can be placed in shallow parts of the hull and will not disturb its smooth lines. This low drag solution will make your docking experience easier, faster and just plain more enjoyable.

Note: VETUS bow thruster panel sold separately.

A retractable thruster has the following advantages:

• Ideal to use when there is insufficient draft to install a regular thruster and/or to not disturb the lines of the hull

• Optimum forward placement in the bow, while maintaining depth by deployment

• Less noise and vibration as it is not directly connected to the hull

• Optimum tunnel length with minimal losses

• Virtually no marine growth, as there is no light when thruster is in retracted and closed position

• May be placed in the stern in (both sailing and motor) boats where it is not possible to install a tunnel thruster

• Less drag as the lid is flush to the hull

• Small dimensions

• Suitable for power vessels up to 20 metres


VETUS Swing Electric Retractable Bow Thruster Features:

• Patented design (swivel point) - thruster rotates as one unit

• Optimised tunnel ergonomics

• Submerged parts are non-corrosive

• Childproof safety

• Automatic deployment and retracting

• Safety pin protection for lid overload

• Electronically prepared for communication based on CAN protocol

• Built-in time lapse device when reversing direction of rotation

• Fast deployment/ retracting time

• Prevents jamming, overload, and blocking


VETUS Swing Electric Retractable Bow Thruster Specifications:

• Model number: STE7512D

• Voltage (V): 12V

• Thrust (N / kgf): 800/80

• Power (kW): 4.4

• Motor, reversible D.C: Yes

• Internal tunnel diameter (mm): 185

• Weight (kg): 31

• Current consumption (A): 500

• Continuous operating time (min): 2

• Max. operating time (minutes): 2

• Main fuse 'slow blow' (A): 355

• Batteries 12 V, min./max. Ah: 1x120/1x225

• Battery cables, length pos./neg. cables (m/mm): 0-8/70 8-11/95

• Battery main switch: model BATSW / type BPMAIN: 250 (BATSW)

• Dimensions, closed (H x L x W): 330 x 745 x 286mm

• Dimensions, opened (H x L x W): 435 x 660 x 286mm


VETUS Swing Electric Retractable Bow Thruster Installation Instructions

VETUS Swing Electric Retractable Bow Thruster Manual
