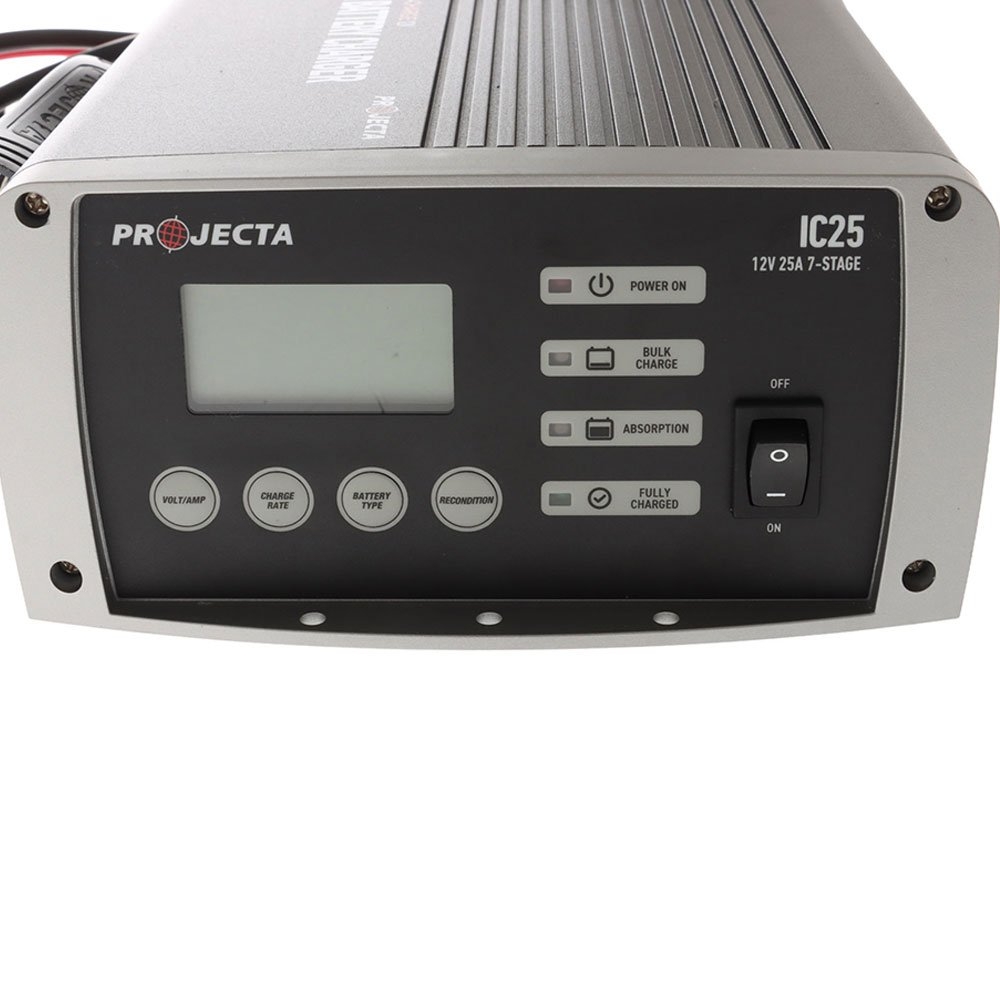

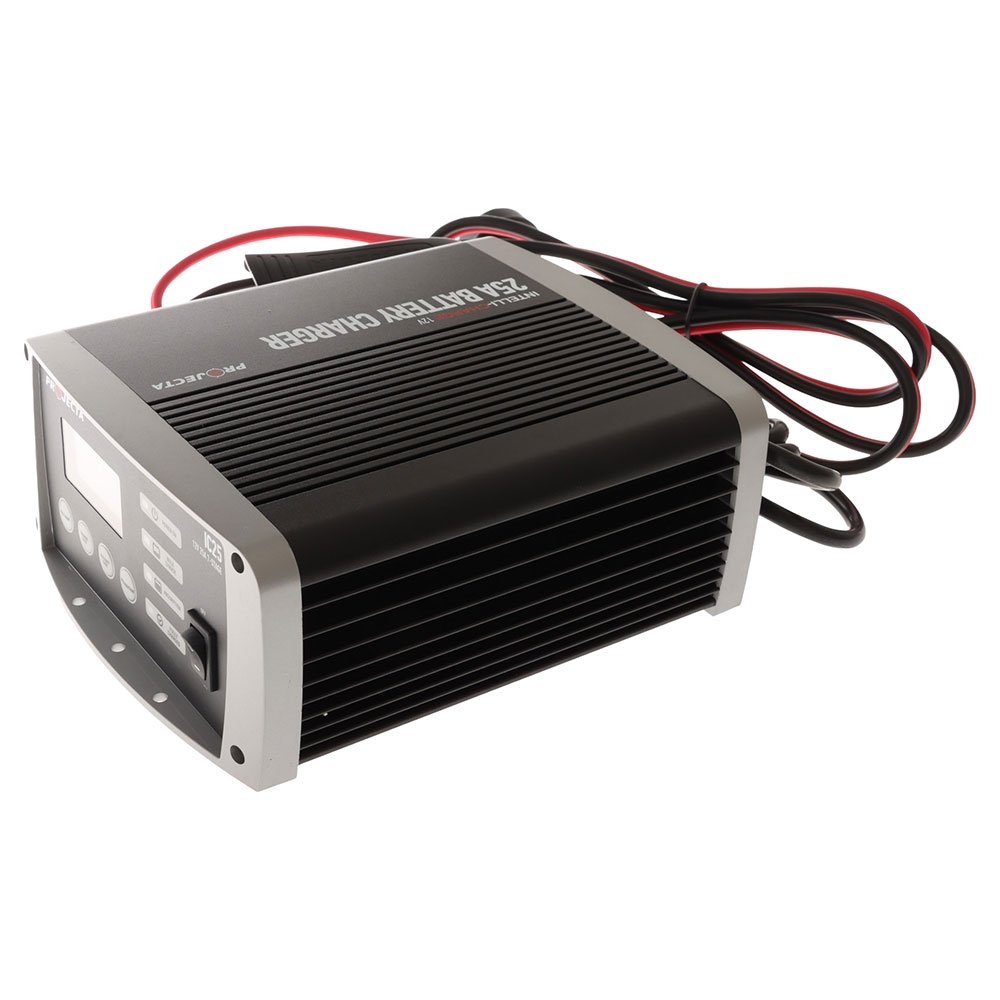

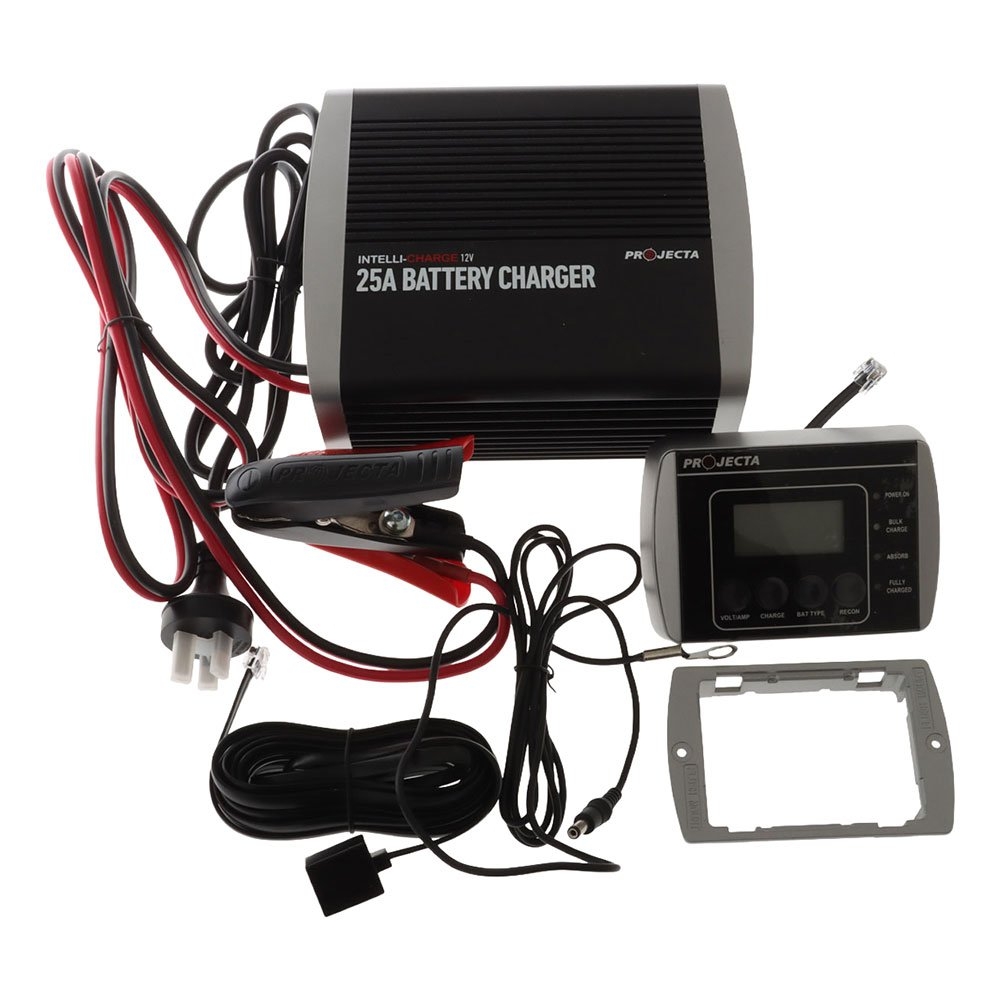

Projecta IC25 Intelli-Charge 7-Stage Battery Charger 12V 25A

Highly advanced automatic charger for those serious about portable power

The Projecta IC25 Intelli-Charge 7-Stage Battery Charger incorporates the latest technology to deliver a 7-stage charge suitable for automotive, calcium, marine and all types of deep cycle batteries (Gel and AGM). These stages of charging ensure maximum battery life and performance are delivered with a faster charging time and ensure a complete charge is achieved.

The 7 charge stages are: Desulphation; Soft Start; Bulk; Absorption; Analysis; Recondition and Float.

Desulphation
The Desulphation stage is designed to break down sulphation occurring in batteries that have been left flat for extended periods of time, returning them back to full charge. Sulphation occurs when lead-sulphate hardens and clogs up the battery cells.

Soft Start
This is a preliminary charge process that gently introduces power to the battery, protecting the battery and increasing battery life.

Bulk (Constant Current)
The Bulk stage reduces charging time by charging the battery at the maximum rate (constant current) to a set voltage, at which point the battery is approximately 80% charged.

Absorption
The absorption stage charges the battery to 100% by adjusting the charge rate allowing the battery to absorb more power.

Equalisation (Calcium Mode Only)
Designed especially for calcium batteries, this stage returns calcium batteries to full service by removing acid stratification of the electrolyte.

Analysis
The analysis mode tests the battery to ensure that it has taken the charge; if the battery passes the test the charger will proceed to the float stage, but if the battery fails the test, the charger will apply a recondition charge to try to return the battery to full charge.

Recondition
If after charging, the battery is unable to hold the charge the battery reconditioning function is initiated automatically. This is most likely to take place on batteries that have been deeply discharged, prior to charging. The Recondition mode will then run for 4 hours and at the end will retest the battery. The Intelli-Charge battery charger will perform the recondition charge up to 3 times before switching the charging cycle to Float with an error indication.

Float
The Float stage maintains the battery at 100% charge without overcharging or damaging the battery. This means the charger can be left connected to the battery indefinitely.

Projecta IC25 Intelli-Charge 7-Stage Battery Charger Features:

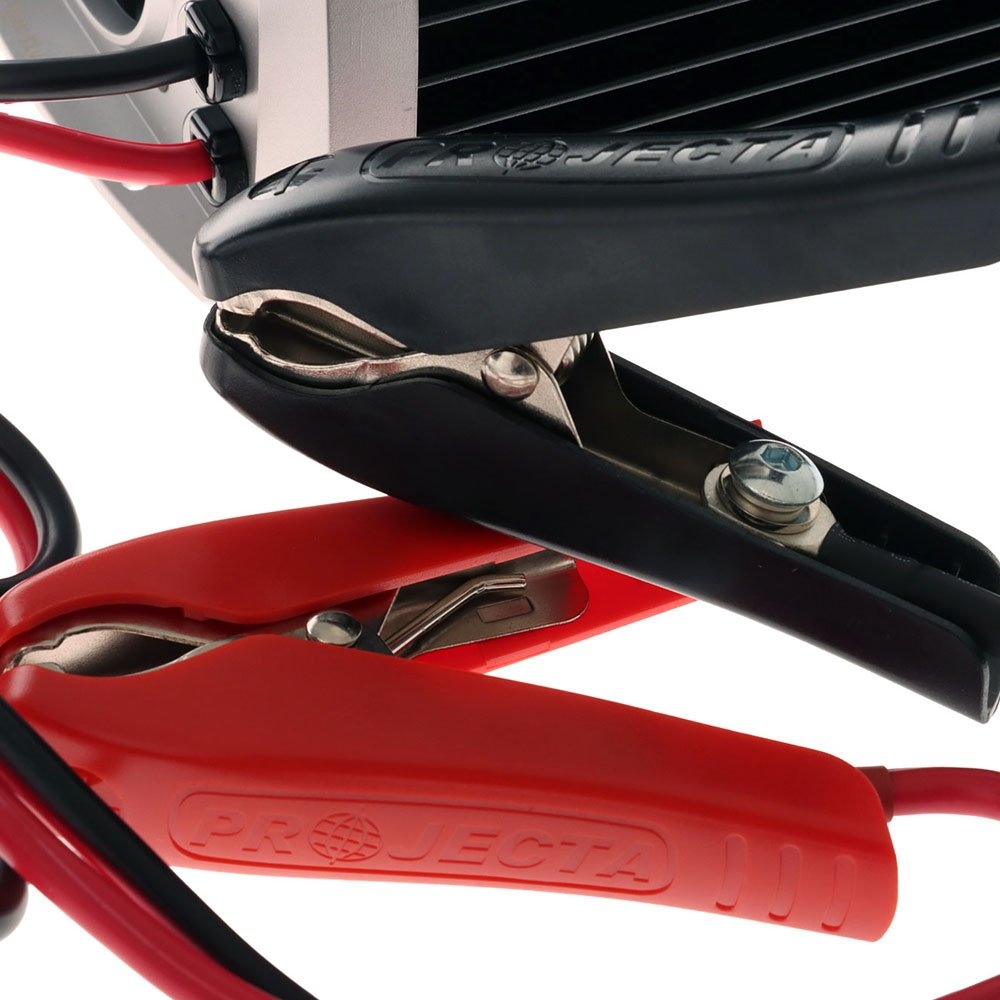

• Fused wiring harness: 0.6m harness allows permanent connection and features polarity protection
• Adjustable Output: adjustable for different battery sizes for precise charging
• Power Supply Mode: retains vehicle computer settings when changing a battery or can run 12V appliances

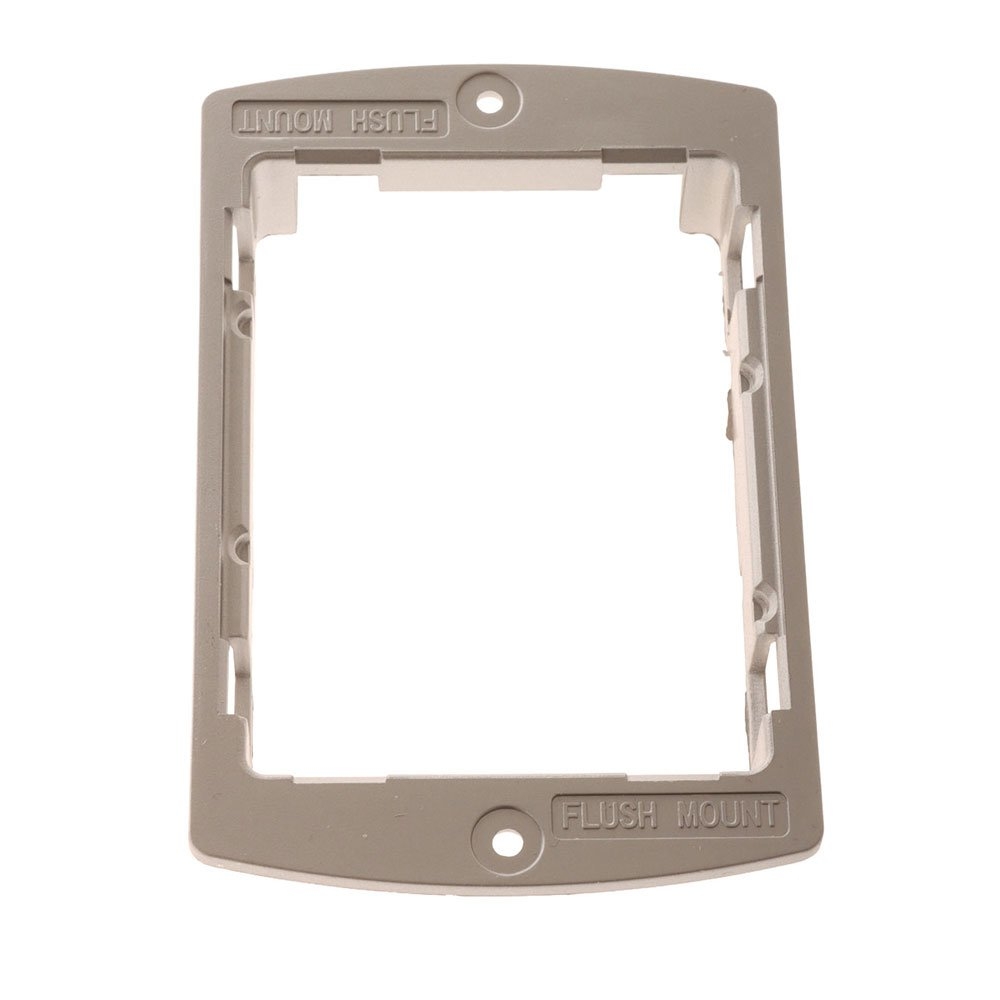

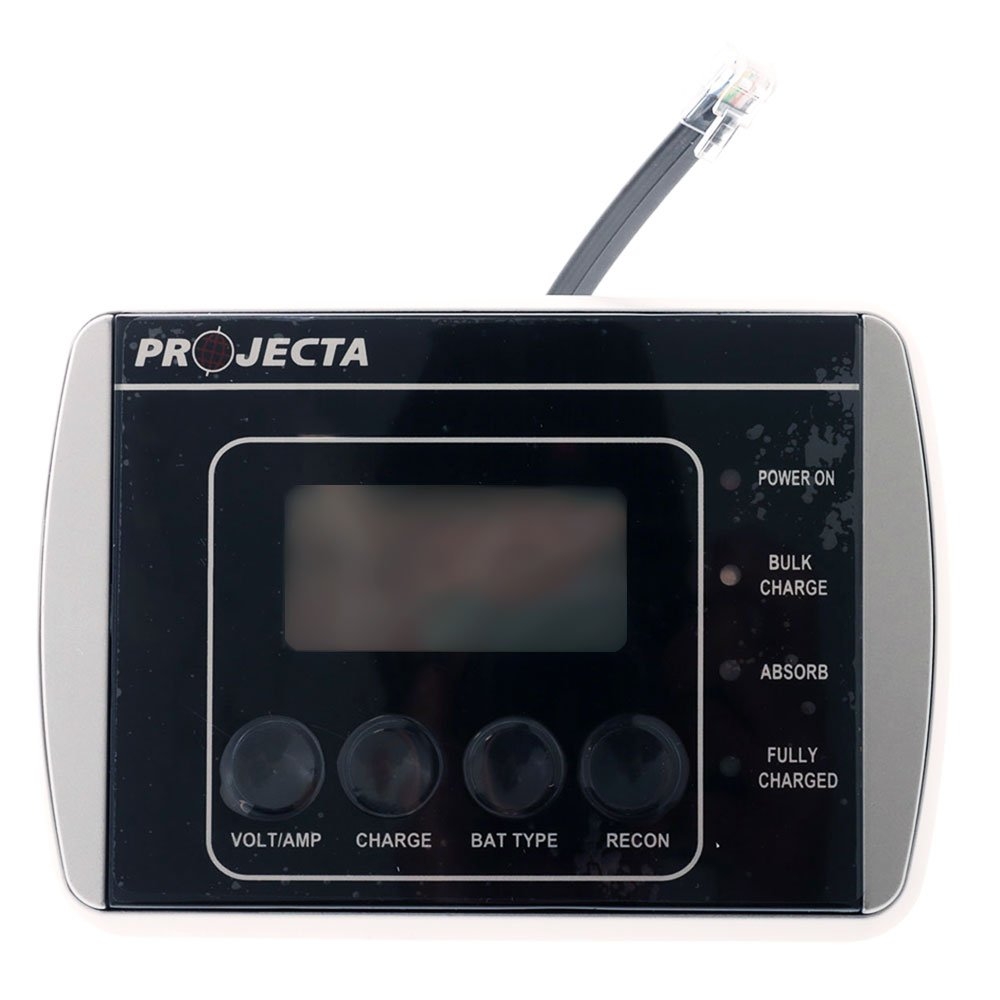

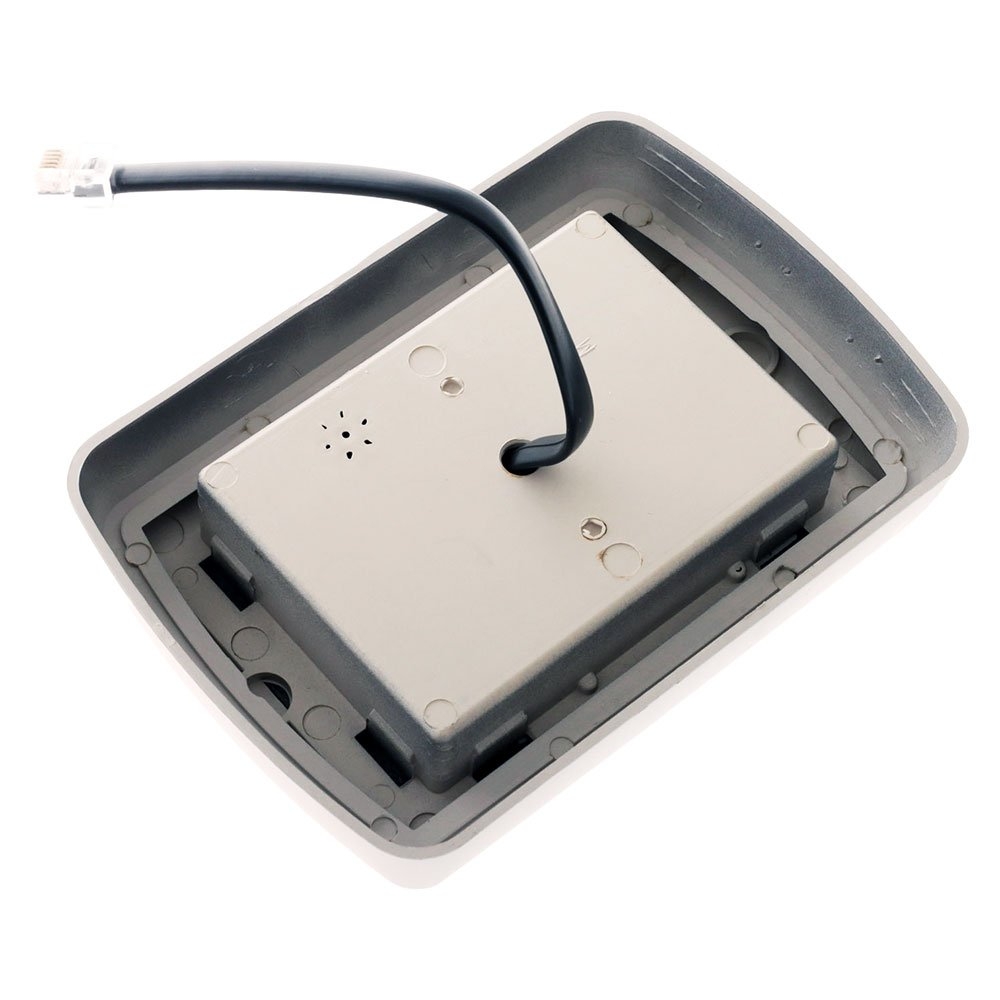

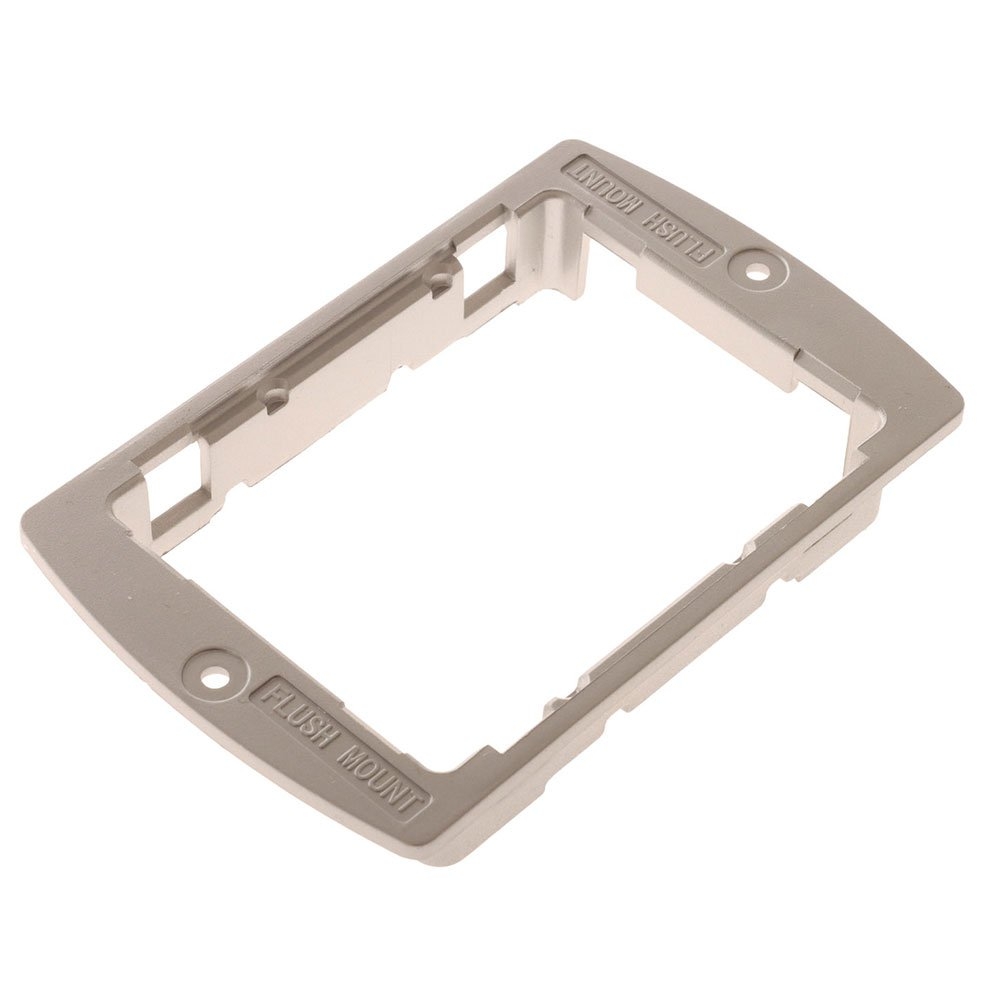

• Wired remote control: allows charger to be mounted out of sight yet retain total control (remote sold separately)

Projecta IC25 Intelli-Charge 7-Stage Battery Charger Specifications:

• Part number: IC25
• Type: 7 Stage Automatic
• Input: 240VAC, 50Hz, 450W
• Output: 12V
• Output current: 2, 6, 12, 25A
• Minimum start voltage: 2.5V
• Back drain: Charger 3mA, with remote 4mA
• Approvals: Electrical Safety, EMC
• Charge voltage: 14.1 (GEL), 14.4V (AGM), 14.7 (WET), 16.0V (CALCIUM), 14.2V (LITHIUM)
