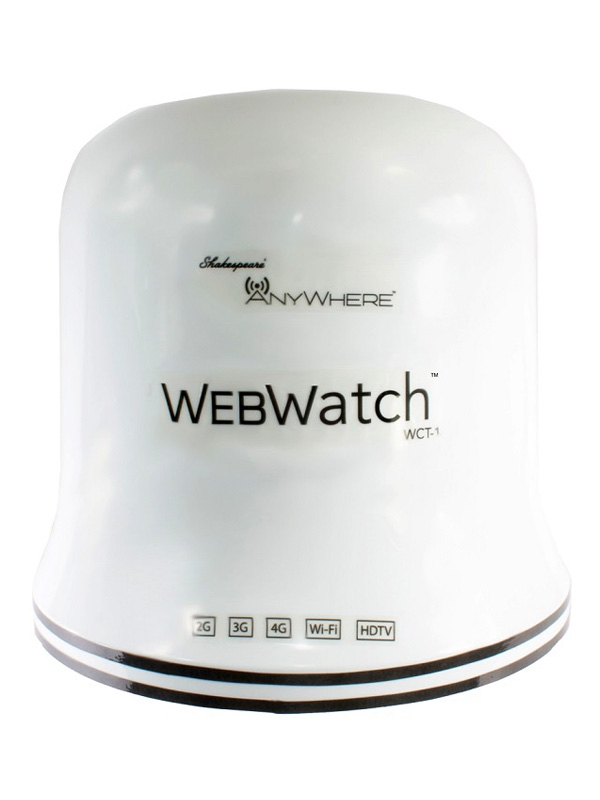

Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna

Web and watch on your boay, RV or anywhere else

Take your enterntainment wherever you go. The Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna lets you access the internet from a nearby Wi-Fi hotspot or cellular network with up to 4G speeds and share it wirelessly through the built-in hotspot or through Ethernet. The receiver auto-switches between Wi-Fi signal and cellular data to maintain internet connectivity.

Now, you don't need another antenna for your TV. Access your favourite local TV channels through the WebWatch's built-in HDTV receiver.

Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna Features:

• Antenna diversity

• Auto switch between Wi-Fi and cellular

• iPhone and Android app browser management

• WiFi hotspot or Ethernet port network

• High performance CPU and SDRAM

• Single cable for power and TV


Shakespeare Marine WCT-1 WebWatch WiFi/Cellular/TV Antenna Specifications:

Technical

• Power Supply & Consumption: DC12V/24V, 1A Max @12 VDC

• Device Management: iPhone® app, Android™ app and web browser

• Internet access through: Wi-Fi hotspot or Ethernet

• Number of Users: Up to 32

• Connectors: 1 x Ethernet (LAN)

• Cables: 25ft (7.62m) RG-59 coax cable/power siamese cable, 25ft (7.62m) Ethernet cable

• Mounting: 1”-14 female thread*

• Dimensions: Dia. 11.75 in x 13 in (29.84cm x 33.02cm)

• Weight: 3.85lbs (1.74kg)

• RoHS Compliant: Yes

• Wireless Approvals & Certifications: FCC (Download manual for compliance information)


Wireless and Network

• Incoming: Long-range Wi-Fi® receiver, cellular data

• Outgoing: Thru built-in Wi-Fi® router or 1 x Ethernet cable

• Frequency: 2.4 GHz

• DC- HSPA+: 42Mbps download, 5.76Mbps upload

• Antennas: 2 x diversity (high performance)

• Other Network Features: Built-in firewall, dynamic DNS, integrated open VPN, IP Sec

• Port Speed: LAN – 10/100Mbps

• Gain: 2dB


Cellular Specifications

• Compatible Carriers:
  3G: AT&T, T-Mobile, Cricket (US), Spark (NZ)
  4G: AT&T

• SIM Card Type (not included): Data-only card, Standard size (15 x 25mm)

• Bands:
  LTE (FDD): B2/B4/B55/B17 with diversity
  HSPA: DC-HSPA+/HSPA+/HSPA/WCDMA, B2/B4/B5 with diversity

• Speed:
  LTE 4G: Up to 100 Mbps download, 50 Mbps Upload (dependent on carrier)
  HSPA+ 3G: Up to 42 Mbps download, 5.76 Mbps Upload (dependent on carrier)

• Gain: 4dB


HDTV Specifications

• Receiving Range: VHF/UHF

• Frequency ranges: NTSC, ATSC (HDTV), T-DMB

• Antenna Gain: 28dB

• Max Output Level: 100dBμV Max

• Impedance: 75Ω

• Noise Figure: ≤4.5dB

• Compatibility: ATSC, HDTV


Note:

• Range may increase or decrease depending on factors like hotspot strength and obstacles in line of sight.

• Can not be mast mounted.

• Requires a data-only SIM card (not included in the package). Please check with your service provider beforehand to ensure they will support this platform and if it operates on the desired frequency range. Customer should check with network beforehand and ensure it operates on the desired frequency range.
