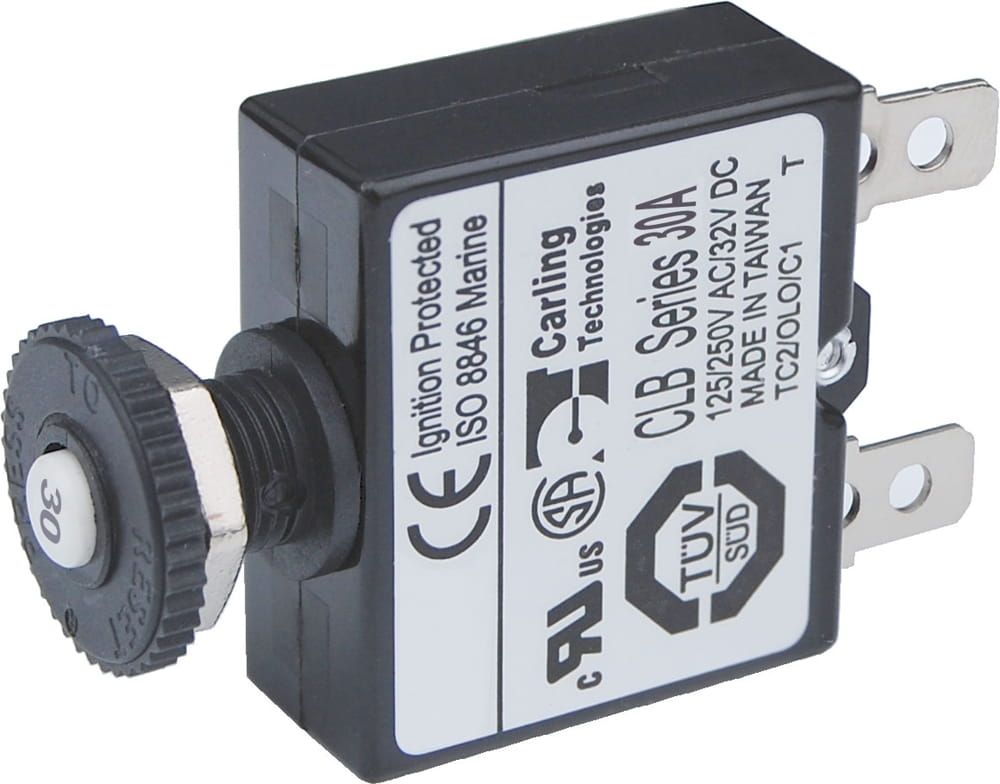

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps

Click on the image above to view full picture

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
BEP CLB Series Push Reset Thermal Circuit Breaker - Unit Only

BEP CLB Series Push Reset Thermal Circuit Breaker - Unit Only
Details

Details

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps

Model: 7059-BSS

Features:
  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • Trip Free design cannot be held ON during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications
Amperage30A
Maximum Voltage32vDC
MountingPanel Mount 3/8-27 UNS
Circuit Breaker TypeThermal trip, manual push-button reset only
Terminal Type1/4 Male Quick Connect
Interrupt Capacity3000A @ 14.7V
2500A @ 28V
Minimum Operating Temperature-10 degrees C
Maximum Operating Temperature60 degrees C
