B&G NAC-3 VRF Core Pack

The NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).

NAC-3 Autopilot Core Pack: Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, NMEA2000 Backbone kit. Ideal for vessels above 10 metres/35 feet in length

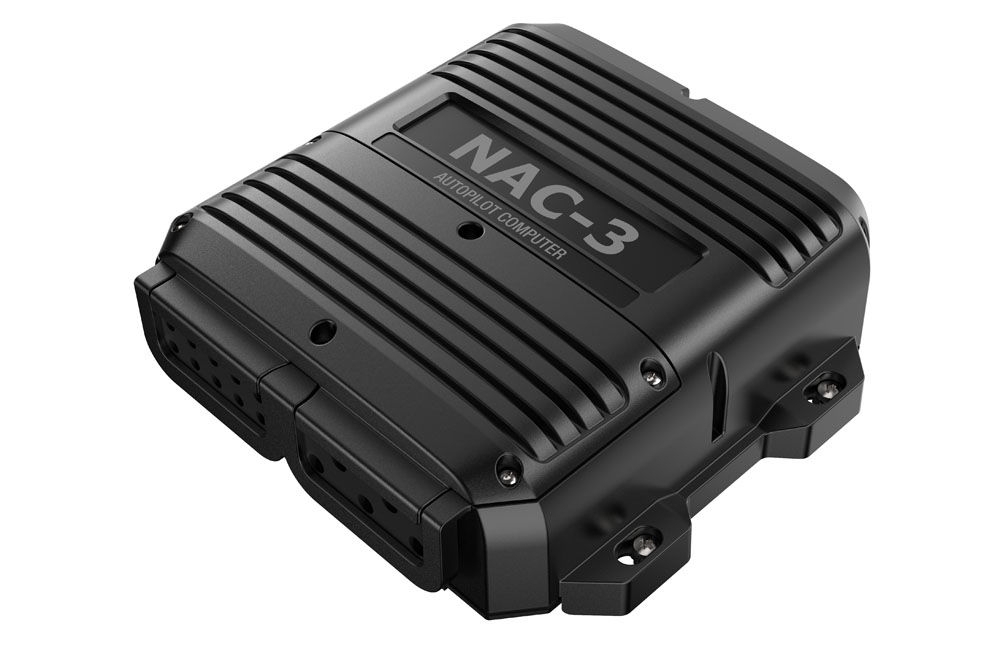

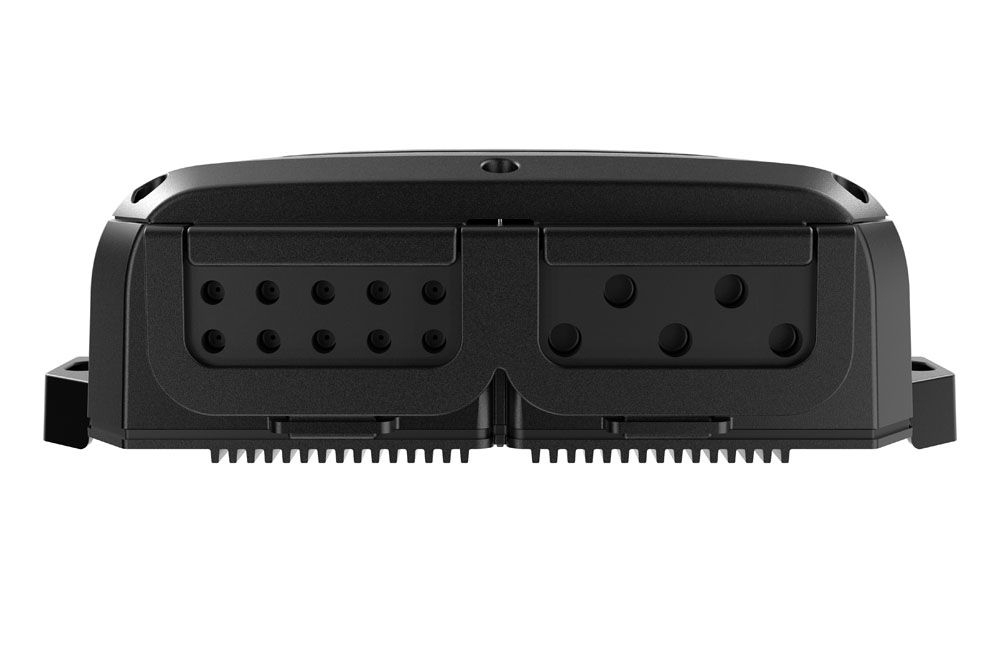

NAC-3 Autopilot ComputerThe NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).

• B&G Reflex Sailing algorithms
• Plug and Play installation
• 12/24V input 8A continuous output, 12A peak
• Solenoid output capable
• 3A clutch output
• Optional Auto/Standby Switch

Precision-9 CompassThe Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel.Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000Heading and ROT calculated using sensor data from 9 axes of rotation and motionAccurate and reliable solid-state sensor technologyHeading accuracy of 2 after calibrationEasily adjustable mounting bracket allows bulkhead or up-mast installationIPX7 waterproof. Best in class.Simple installation with a single NMEA 2000 connectionRF25 Rudder Feedback Unit

In the box:NAC-3 Course ComputerPrecision-9 CompassNMEA 2000 Backbone kitDocumentation

• Reliable autopilot performance based on Simrad Continuum steering technology

• Micro-C Backbone Kit
• Precision-9 Compass
• NAC-3 Autopilot Computer
