Consistent quality and reliability

For over 30 years DJ Pump has been manufacturing and supplying the marine industry with quality DJ Pump Engine Cooling Pumps and Impellers and accessories. Manufactured in their hi-tech Korean ISO certified facility to exacting standards ensuring consistent quality and reliability.

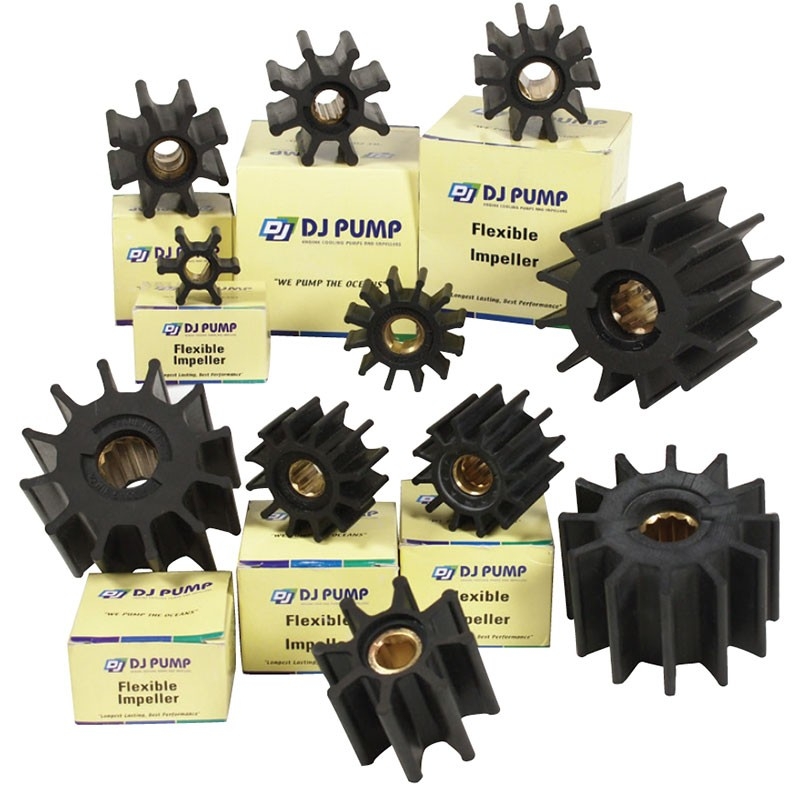

These flexible DJ Pump Engine Impellers are used extensively in the marine industry and are designed to provide an efficient method of pumping raw water to a large number of applications where required. Often an integral part of the engines cooling system, these pumps operate using an internal impeller which is designed to circulate water continuously throughout the engine.

DJ Pump Engine Impellers can be fitted to most makes and models of flexible impeller marine engine cooling, bilge, electronic clutch and multi-purpose pumps and are manufactured from quality materials to provide excellent longevity without sacrificing flow characteristics. Available in a wide range of shaft, diameter and depth configurations each impeller is packed in an easy to identify box clearly showing shaft, material and brand replacement codes.

DJ Pump Engine Impellers Specifications:

Product Code	DJ Pump	No. of Blades	Drive Type	Impeller Diameter	Impeller Depth	Shaft Diameter
132800	08-31-0601	6	1	40mm (1.57")	19mm (0.74")	12mm (0.47")
132802	08-37-0601	6	2	51mm (2")	22mm (0.86")	12.7mm (0.5")
132804	09-107-0601	6	6	40mm (1.57")	19mm (0.74")	12mm (0.47")
132806	09-46-0801	8	2	65.5mm (2.57"	51mm (2")	16mm (0.62")
132808	001-0801	8	5	67mm (2.63")	50mm (1.96")	16mm (0.62")
132810	001-0801N	8	5	67mm (2.63")	50mm (1.96")	16mm (0.62")
132812	002-0801	8	5	80mm (3.14")	53mm (2.08")	20mm (0.78")
132814	004-0801	8	2	80mm (3.14")	54mm (2.12")	20mm (0.78")
132816	082-0801	8	3	80mm (3.14")	54mm (2.12")	19mm (0.78")
132818	08-40-0801	8	5	65.5mm (2.57")	37mm (1.45")	16mm (0.62")
132820	09-47-0801	8	3	65.5mm (2.57")	51mm (2")	15mm (0.59")
132822	003-0901	9	5	95mm (3.74")	63mm (2.48")	25mm (0.98")
132824	003-0901	9	5	95mm (3.74")	88.5mm (3.48")	25mm (0.98")
132826	003-0901	9	3	95mm (3.74")	63mm (2.48")	25mm (0.98")
132828	088-0901	9	3	95mm (3.74")	88.5mm (3.48")	25mm (0.98")
132830	09-41-0901	9	5	95mm (3.74")	43mm (1.69")	25mm (0.98")
132832	09-108-0601	6	1	51mm (2")	22mm (0.86")	12.7mm (0.5")
132834	08-37-0601	6	1	51mm (2")	22mm (0.86")	12mm (0.47")
132836	09-44-1201	10	6	65mm (2.55")	51mm (2")	19mm (0.74")
132838	08-36-1201	12	2	65mm (2.55")	51mm (2")	16mm (0.62")
132840	09-42-1001	10	5	66mm (2.59")	68mm (2.67")	16mm (0.62")
132842	08-21-1201	12	5	57mm (2.24")	31.5mm (1.24")	16mm (0.62")
132844	09-105-1201	12	5	57.1mm (2.24")	48.1mm (1.89")	16mm (0.62")
132846	08-20-1201	12	2	65mm (2.55")	41mm (1.61")	16mm (0.62")
132848	08-19-1201	12	3	82mm (3.22")	73mm (2.87")	20mm (0.78")
132850	003-1201	12	5	95mm (3.74")	63mm (2.48")	25mm (0.98")
132852	003-1201	12	5	95mm (3.74")	88.5mm (3.48")	25mm (0.98")
132854	003-1201	12	3	95mm (3.74")	88.5mm (3.48")	25mm (0.98")
132856	09-44-1201	12	5	65mm (2.55")	80mm (3.14")	25mm (0.98")
132858	09-45-1201	12	5	95mm (3.74")	95mm (3.74")	25mm (0.98")
132860	003-1201	12	3	95mm (3.74")	63mm (2.48")	25mm (0.98")
132862	08-12-0901	9	4	95mm (3.74")	63mm (2.48")	25mm (0.98")
132864	08-17-1201	12	5	129mm (5.07")	101.5mm (3.99")	36mm (1.41")
132866	08-17-1201N	12	6	129mm (5.07")	101.5mm (3.99")	36mm (1.41")
132868	08-30-1201	12	5	95mm (3.74")	130mm (5.11")	25mm (0.98")
132870	08-32-1201	12	5	57mm (2.24")	20mm (0.78")	12.7mm (0.5")
132872	08-33-1201	12	5	95mm (3.74")	102mm (5.11")	25mm (0.98")
132876	08-19-1201	12	3	82mm (3.22")	73mm (2.87")	20mm (0.78")
132878	08-38-1201	12	2	62mm (2.44")	32mm (1.25")	16mm (0.62")
132880	09-43-1201	12	5	161mm (6.33")	120mm (4.72")	36mm (1.41")
132882	09-106-1201	12	2	62mm (2.44")	22mm (0.86")	16mm (0.62")
132884	08-14-1001	10	5	115mm (4.52")	104mm (4.09")	25mm (0.98")
