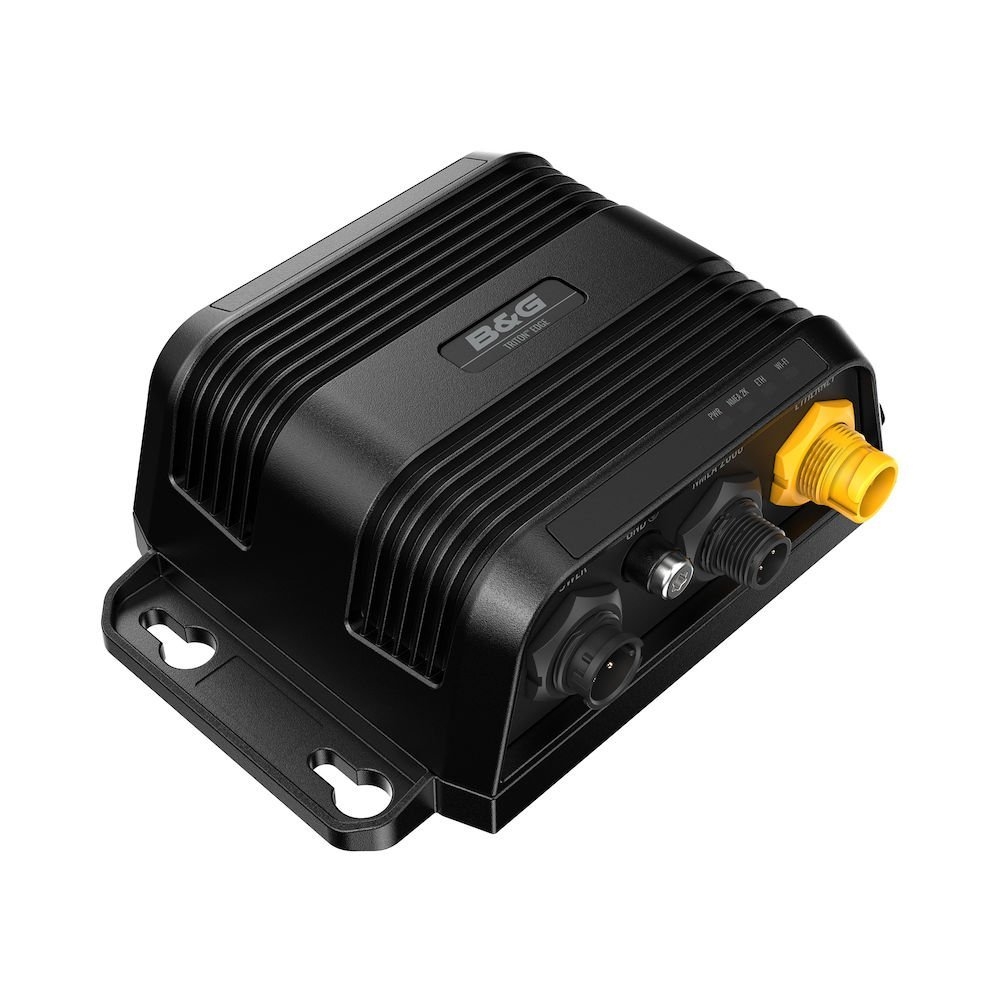

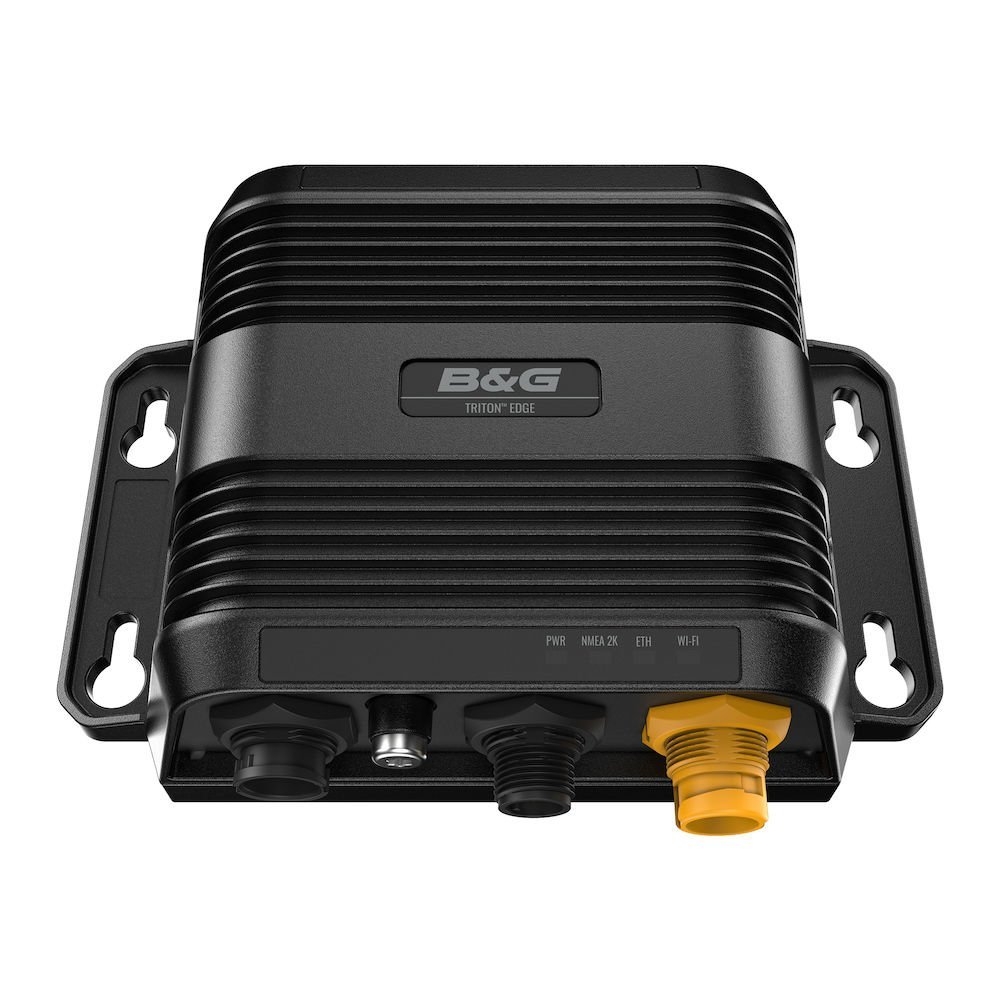

B&G Triton Edge Sailing Processor

Triton Edge Sailing Processor delivers an enhanced suite of sailing data such as advanced Start line calculations, advance true wind data and autocalibration, boat speed calibration and correction, wind correction for heel/trim, improving accuracy of your autopilot and sailing information. Wi-Fi and Ethernet allows for expanded integration with Triton 2 and Nemesis displays, and Vulcan and Zeus Chartplotters, whilst integration with the BandG App also enables the ability to review or replay your sailing data, and web-browser based control allows for easy set-up and commissioning, improving the accuracy and calibration of sailing data, as well as the ability to backup/restore and advanced diagnostics.

• Latest Powerful micro processor provides all core instrument calculations
• Enhanced feature set for serious cruising yachts
• BandG App Integration - Data recording and review using the Companion App
• Integrated webserver provides easy access to system configuration and control
• Ethernet Interface
• Industry standard compatible NMEA2000(R) network
• 12/24V Power

Specifications

Connectivity

Ethernet Ports

1 x 100 Mbit

NMEA 2000 Connectivity

1x NMEA 20000 Micro-C port, 1 LEN

PC Connectivity

1x Ethernet (webserver)

Approvals

Approvals Compliance

IEC/EN 60945

Electrical

Recommended Fuse Rating

3A

Supply Voltage

12/24V DC (9.0 - 31V DC)

Environment

Operating Temperature Range

?15 degreesC to 55 degreesC (5 degreesF to 131 degreesF)

Storage Temperature Range

?40 degreesC to 85 degreesC (?40 degreesF to 185 degreesF)

Waterproofrating

IPX6 and IPX7

Physical

Compass Safe

300mm (1.0')

Dimensions W x H x D

152 x 98 x 53mm (6 x 3.9 x 2.1')

Mounting Type

Surface Mount

Weight

0.26kg (0.6lbs)

Other

Interface

Webserver

Warranty Period

2 Years

• N2K-T-RD Network T-Connector
• N2KEXT-2RD 2ft Network Extension Cable
• Power Cable, 4-Pin
