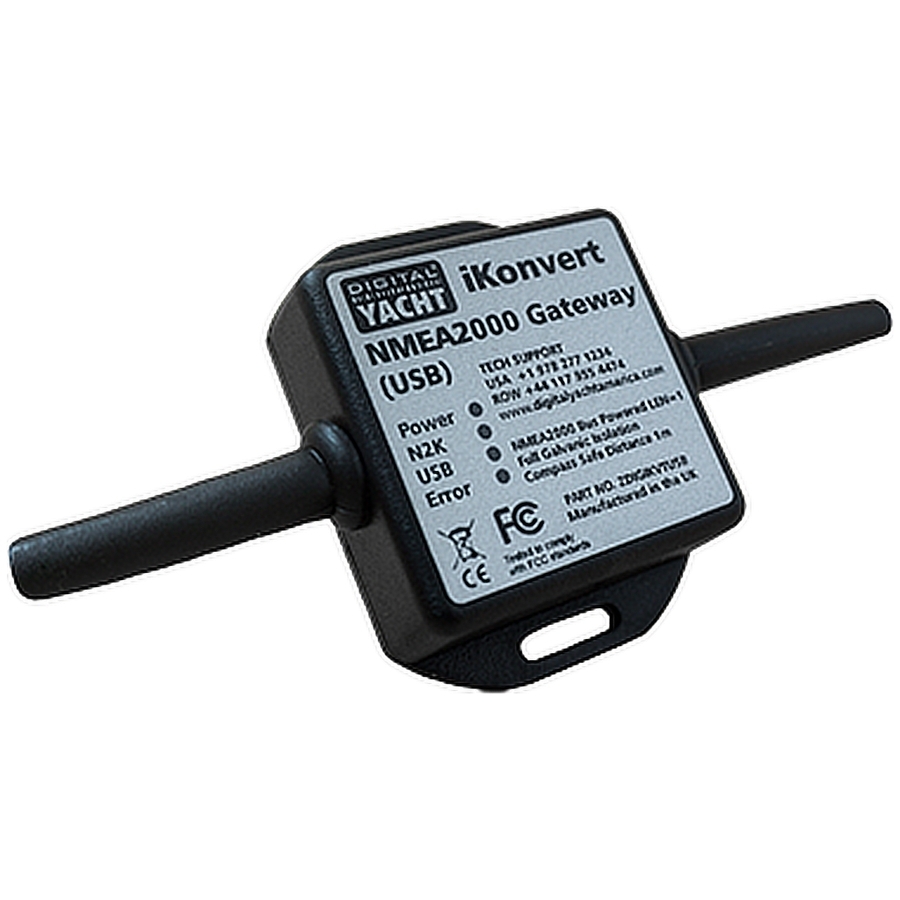

Digital Yacht iKonvert 2000-0183 Gateway Converter with USB

The iKonvert NMEA 2000 to USB converter is a smart and flexible gateway. Therefore allowing software applications (apps) to read/write NMEA2000 data. This can be either for ultimate analysis and control as RAW binary PGN data. Otherwise for conversion to the older and more commonly supported NMEA0183 data.

Every popular Marine Navigation app that runs on PC/MAC/LINUX computers can read NMEA0183 data. iKonvert provides a simple, reliable and cost effective way to access the navigation data on an NMEA2000 network. Simply set the DIP switches inside iKonvert to the required data mode that you want to use. As a result, iKonvert will extract the selected data from the NMEA2000 network. The data is then provided to your marine app in a format and at a baud rate they support.

The iKonvert Gateway is compact and its housing is easy to mount. It features an integral USB cable and standard NMEA2000 Micro drop cable (male). In addition, it takes its power from the NMEA2000 network. It also provides full galvanic isolation between the USB interface and NMEA2000 networks. iKonvert operates at a 230KB baud rate in RAW mode and 4.8KB, 38.4KB or 115KB in NMEA0183 conversion modes. All modes can be simply selected using the internal DIP switches with no special configuration software or firmware changes required.

iKonvert's USB interface features an FTDI chip. This chip has the most reliable and compatible USB drivers for all of the popular systems (Windows/Mac/LINUX/Android). Furthermore, for direct connection between NMEA2000 and NMEA0183 systems an ISO Version of iKonvert is available.

• Brand: Digital Yacht
• Country of Origin: United Kingdom
• Exterior Color: Black
• Cable-Length: 1 m (3.3')
