Hella Marine Garage/Auto Electrical Assortment Kit

#9038138
Warranty Badge - 12-Months
Ships Nov 29 - Dec 11
ONLY $109.00

Seen a lower price? Ask us to beat it

Add Items to Cart
No payments or interest for 12 months*

Click on the image above to view full picture

More Views

The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Details

Details

Meets the requirements of the automotive industry

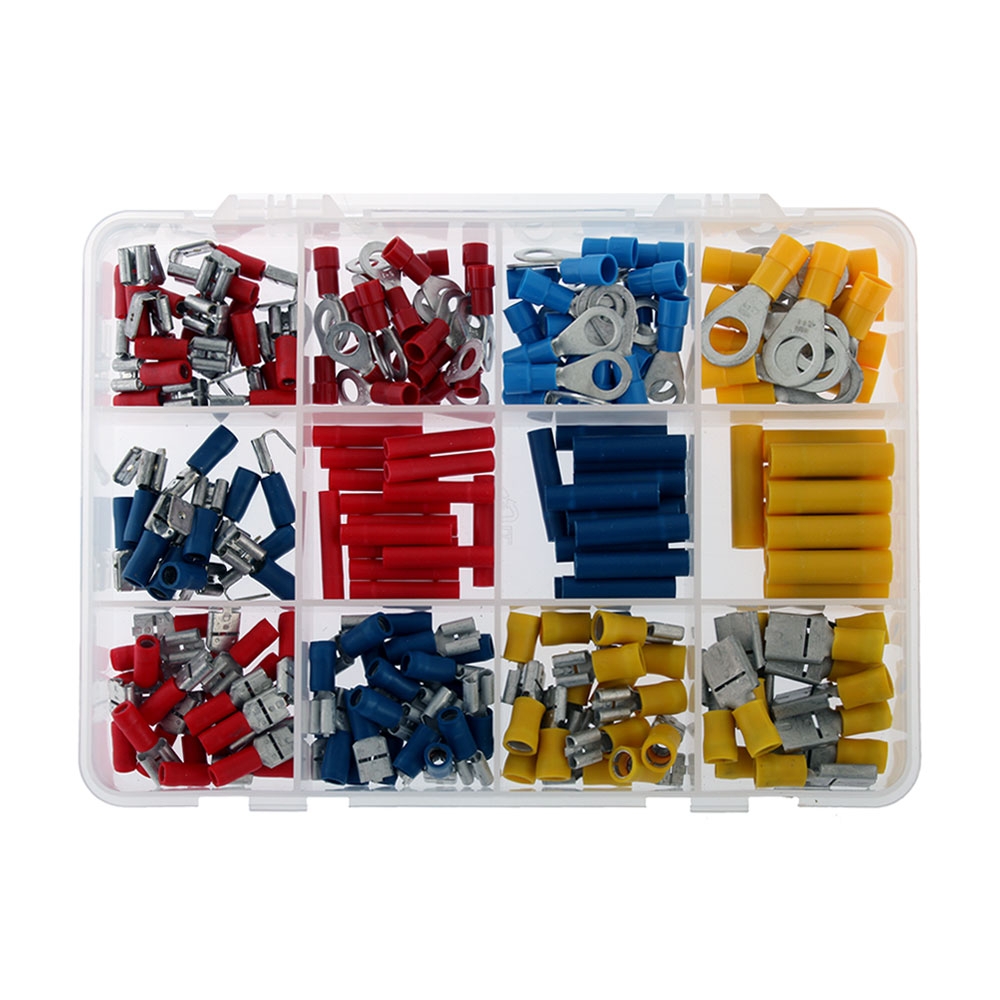

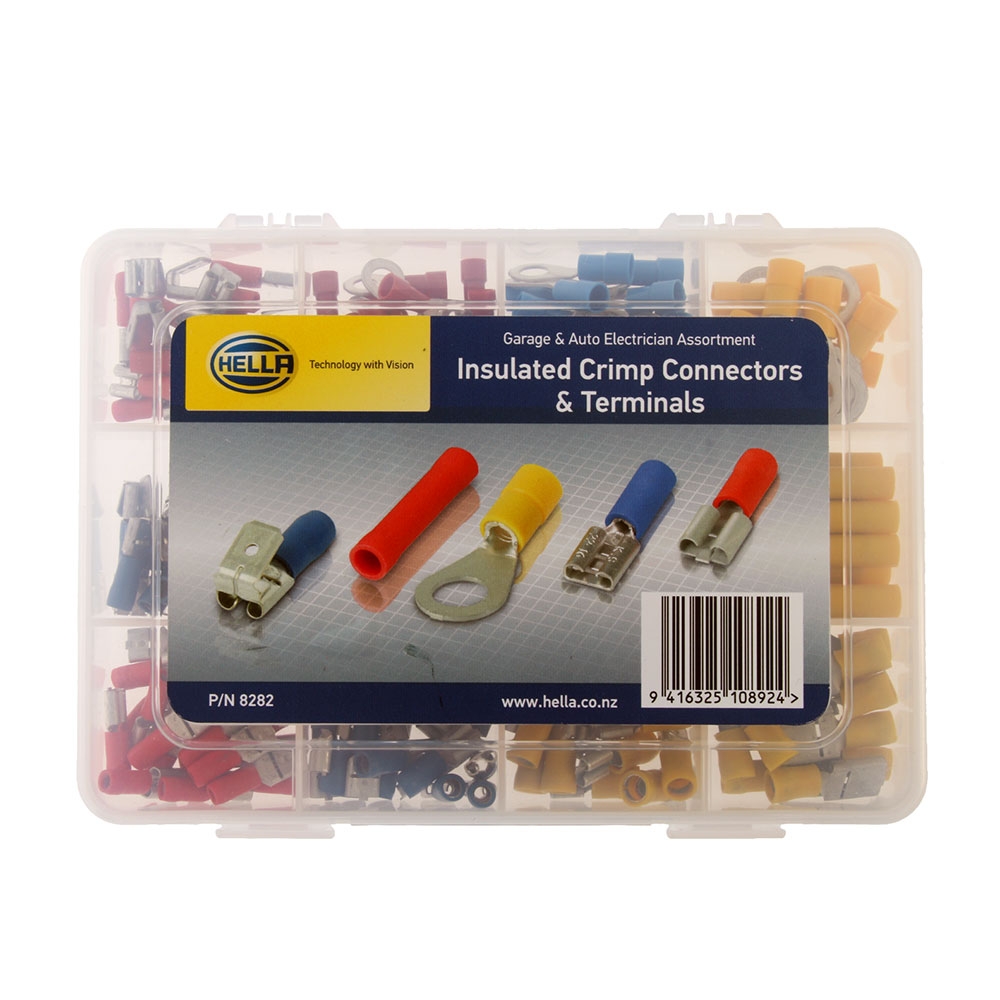

The Hella Marine Garage/Auto Electrical Assortment Kit offers an assortment containing 173 Hella Connectors/Terminals, designed to meet the requirements of the automotive industry.

Hella Marine Garage/Auto Electrical Assortment Kit Specifications:
  • Type: Single pole, connector assortment
  • Colour coded insulation:
    • Red insulated terminals suitable for 2.5 to 3mm cable / 0.75 to 1.13mm2 cable
    • Blue insulated terminals suitable for 4mm cable / 1.84mm2 cable
    • Yellow insulated terminals suitable for 5 to 6mm cable / 2.9 to 4.59mm2 cable

Hella Marine Garage/Auto Electrical Assortment Kit Contents:
Part Number Description Quantity
8200 Push-on female terminal 20
8201 Push-on female terminal 20
8202 Push-on female terminal 15
8203 Push-on female terminal 12
8210 Push-on 2-way male and female terminal 15
8211 Push-on 2-way male and female terminal 12
8230 Cable connector 15
8231 Cable connector 15
8232 Cable connector 10
8241 Eye terminal 20
8244 Eye terminal 20
8247 Eye terminal 12
