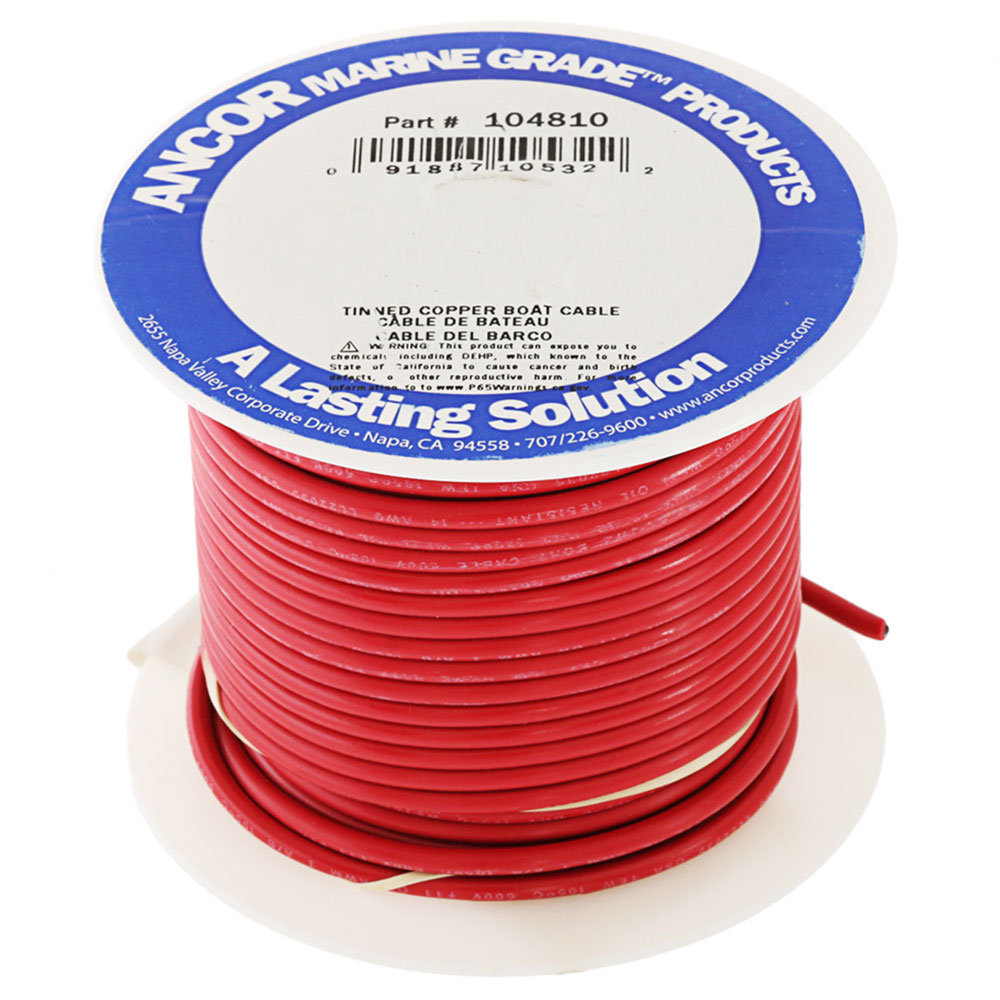

Ancor Tinned Copper Wire 14 AWG 2sq mm Red - 100ft

Marine-grade cable

The Ancor Tinned Copper Wires are built to last - exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They're constructed with premium vinyl insulation that is rated at 600 volts, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Ancor Tinned Copper Wire Specifications:

• Part number: 104810
• Max. Voltage: 600V
• Jacket: PVC
• Jacket Rating: TEW 600V - 105°C (221°F) Dry and 75°C (167°F) Wet
• UL Listed: E67078 (UL1426)
• CSA Listed: 022035_0_000
• ABYC: Yes
• US Coast Guard: Title 33, Part 183.435
• Nominal O.D.: 9/64in (3.6mm)
• Wire diameter: 2mm
• Minimum bend radius: 1-3/32in (2.8cm)
• Stranding No. of 30 AWG: 41
• Cir. Mil Area: 4100
• Ohms per 1000ft: 2.53
• mm²: 2.08
• Wt. per 1000ft: 10.4kg
• Length: 100ft
