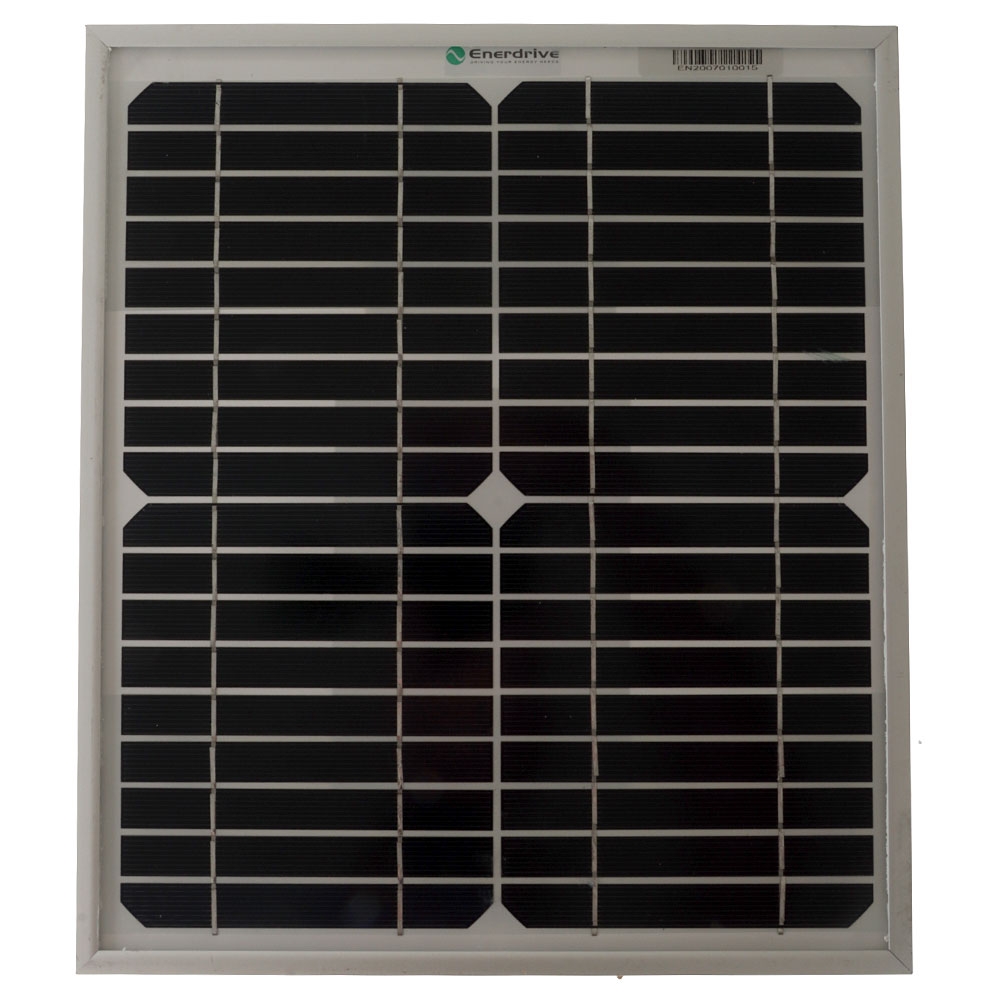

Enerdrive Fixed Solar Panel
Enerdrive Fixed Solar Panel
Deliver to:
Auckland 0626,
NZ
Estimated:
$6.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
Your efficient outdoor power source
The Enerdrive Fixed Solar Panel is suited for a wide range of small-scale off grid solar power applications. It features tempered glass protection so this unit is not easily damaged even in harsh environments. Perfect to mount on your boat, caravan or camper van, this solar panel provides an excellent power source for your electronic devices when you're on the move.
Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels). A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.
Enerdrive Fixed Solar Panels Specifications:
| Specifications | SP-EN10W | SP-EN20W | SP-EN55W | SP-EN80W | SP-EN150W |
|---|---|---|---|---|---|
| Max Power Pm(W) | 10 | 20 | 55 | 80 | 150 |
| Power Tolerance % | plus or minus 3% | plus or minus 3% | plus or minus 3% | - 1% approx. + 3% | plus or minus 3% |
| Max Power Voltage Vm(V) | 16.6 | 17.6 | 18 | 17.99 | 18.8 |
| Max Power Current Im(A) | 0.613 | 1.13 | 3.05 | 4.45 | 8.01 |
| Open Circuit Voltage Voc(V) | 22.3 | 22.03 | 22.29 | 22.19 | 24 |
| Short Circuit Current Isc(A) | 0.786 | 1.5 | 3.73 | 4.85 | 8.62 |
| Max System Voltage (VDC) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Dimensions (mm) | 320 x 279 x 30 | 540 x 350 x 30 | 840 x 541 x 35 | 780 x 660 x 35 | 1482 x 660 x 35 |
| Weight (kg) | 1 | 3 | 5 | 7.9 | 12 |
| Test Conditions | 1000W/m , AM1.5 , 25 degreesC | 1000W/m , AM1.5 , 25 degreesC | 1000W/m , AM1.5 , 25 degreesC | 1000W/m , AM1.5 , 25 degreesC | 1000W/m , AM1.5 , 25 degreesC |
| Note: Specifications subject to change without notice. | |||||
Enerdrive Fixed Solar Panels Data Sheet
