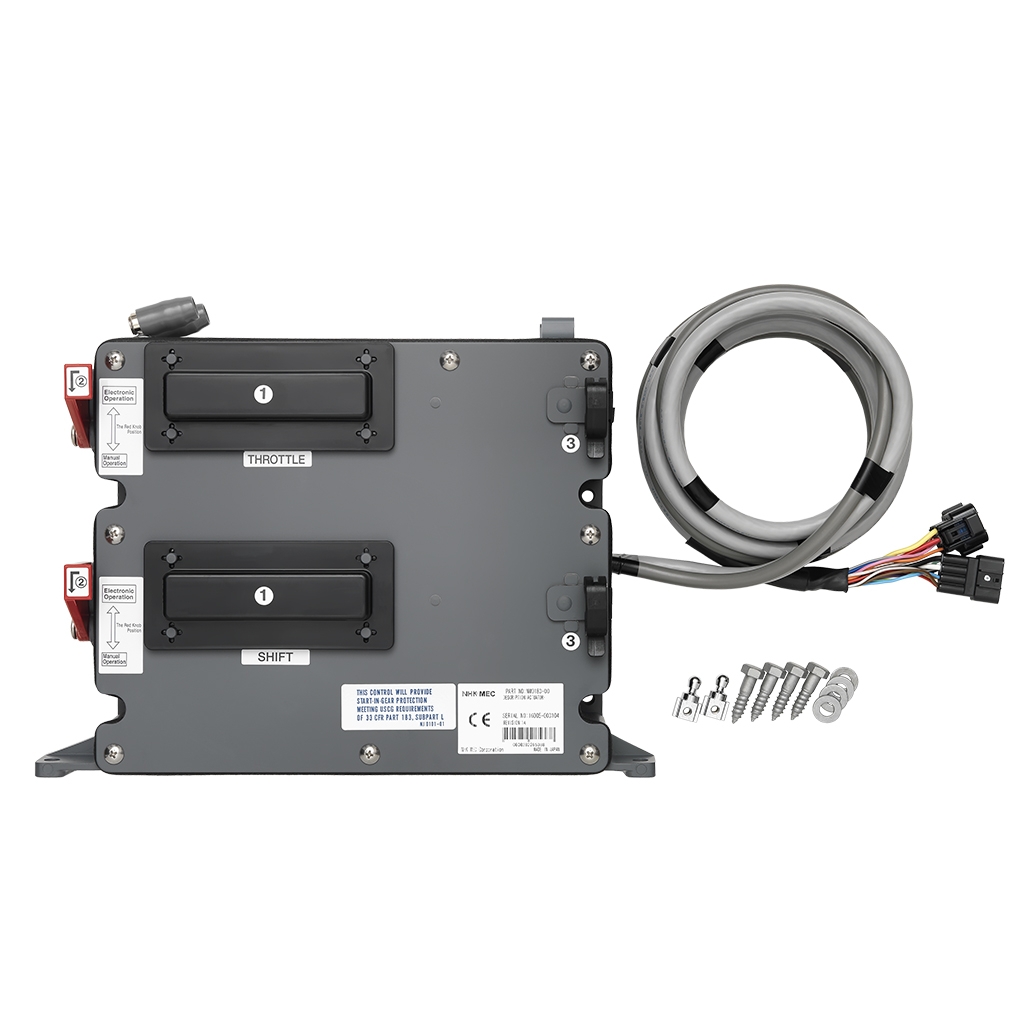

NHK MEC Ke-4 Plus Electronic Control System Shift and Throttle Actuator

Safe and smooth operation

The NHK MEC Ke-4+ Electronic Control System offers an upgrade over the cable type control systems which can be cumbersome to install and operate. Up to 4 stations can be installed.

The NHK MEC Ke-4+ Electronic Control System Shift and Throttle Actuator allows various settings for actuator operation such as shift and throttle modes, push-pull cable stroke distances, etc. in order to match the KE-4+ system actuator outputs with a variety of engine and gearbox configurations.

NHK MEC Ke-4+ Electronic Control System Shift and Throttle Actuator Features:

• Selector knob for manual operation (in case of electrical failure emergency)

• Ball joint socket for push-pull cable during manual operation

• Temporary hub clamp for push-pull cable during manual operation

• Push-pull cables to engine throttle and marine gear levers

• Robust actuator encompassing both shift and throttle functions

• IPX6 level water resistance


Installation:

• The actuator harness is 2m (6.5ft) in length. Select the actuator location so that its distance from the control unit is 2m (6.5ft) or less.

• Drill mounting hole locations based on the installation type A (vertical) or B (horizontal) as per the drawings below.

• Install with included fasteners or with separately purchased machine screws or tapping screw and washer.

• Fastener mounting plate thickness: 20mm min. (3/4in min)

• Pilot hole diameter: 5mm diameter


Note: This listing is for the actuator unit only.
