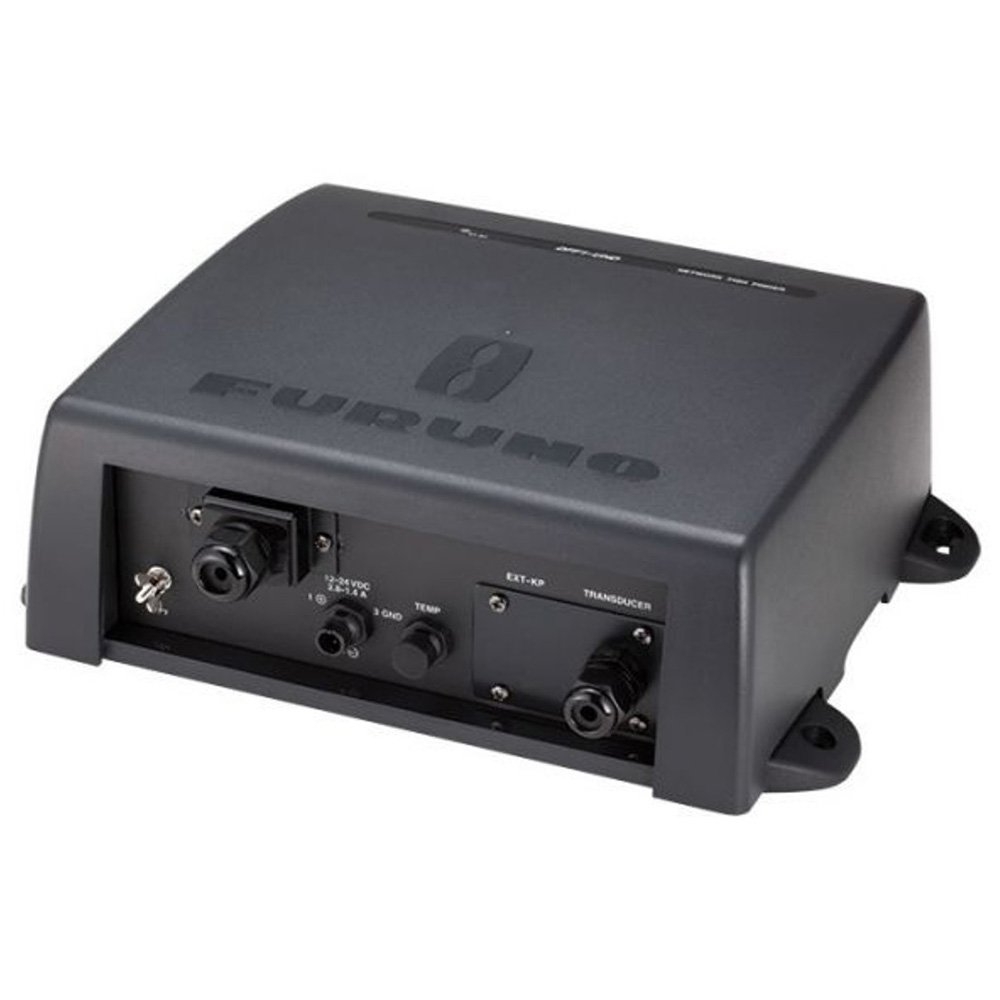

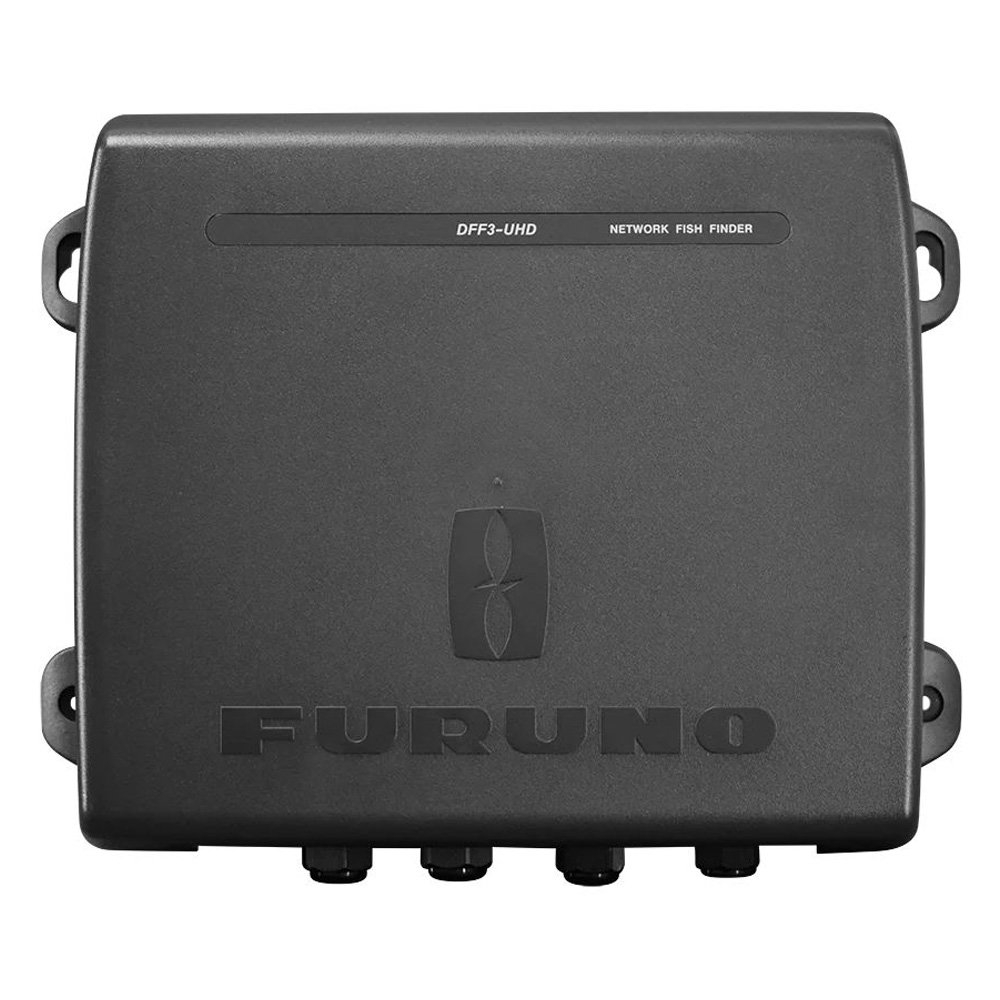

Furuno DFF3-UHD TrueEcho CHIRP Black Box Network Fishfinder 2/3kW

Go deeper with more power than you thought was possible

The high-powered Furuno DFF3-UHD TrueEcho CHIRP Black Box Network Fishfinder delivers the ability to see fish and bottom structure deeper and clearer than ever before. Furuno's superior digital signal processing interprets the echoes from fish and underwater structures with unparalleled clarity, accuracy and resolution at unprecedented depths - we're talking depths down to 15,000 feet! Capable of transmitting across Low, Medium, and High CHIRP ranges, its high power output translates directly into greater resolution and depth capability than a comparably powered standard Fishfinder.

Plenty of power and wide frequency range to go deep!
The Furuno DFF3-UHD TrueEcho CHIRP Black Box Network Fishfinder provides an incredible 2kW or 3kW of power to a compatible broadband transducer, transmitting across a spectrum of frequencies to ensure that the echo returns on your display come back sharp and clear at every range. Gathering more and higher-quality data than traditional high-power CW Fish Finders, the DFF3-UHD offers significant advantages in signal clarity and target definition. This helps you find more of your target species, game fish and baitfish, even when they are tightly schooled together or near the seafloor. The DFF3-UHD transmits and receives pulses across a combination of Low, Medium, or High frequency ranges with each transmission, showing returns from bait balls and individual fish targets virtually anywhere in the water column.

Furuno DFF3-UHD TrueEcho CHIRP Black Box Network Fishfinder Features:

• 2 kW or 3 kW Power Output
• Transmits across Low, Medium and High CHIRP frequency ranges
• High Power: greater resolution and depth capability at all ranges
• Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD
• Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders
• Find and catch more of your target species, game fish and baitfish, even when they're tightly schooled or near the seafloor
• A-Scope feature and programmable Fish, Depth, or Temp Alarms
• Enhanced automatic cruising or fishing modes to suit your style of boating
• Includes 5m LAN cable

Furuno DFF3-UHD TrueEcho CHIRP Black Box Network Fishfinder Specifications:

• Model: DFF3-UHD
• TX Type: Dual Band CHIRP and CW
• Output Power: CHIRP - Max. 3 kW | CW - 2/3 kW
• Max. Range Scale: 15,000 ft
• Frequency: 25 to 242 kHz
• BT-5 for 5/10 kHz CW Transducer: Compatible
• Interconnection: Connect to MFD Network via Ethernet
• Networked MFDs: NavNet TZtouch3 (v3+ software) | NavNet TZT2BB (v9+ software)
• Power Supply: 12-24 VDC
• Power Consumption: 3.0-1.6 A
• Protection Level: IP55
• Dimensions: 38.1 x 11.9 x 29.9 cm (15 x 4.72 x 11.78 in)
• Weight: 3.6kg (7.94lbs)

Note: Display and Transducer sold separately.
