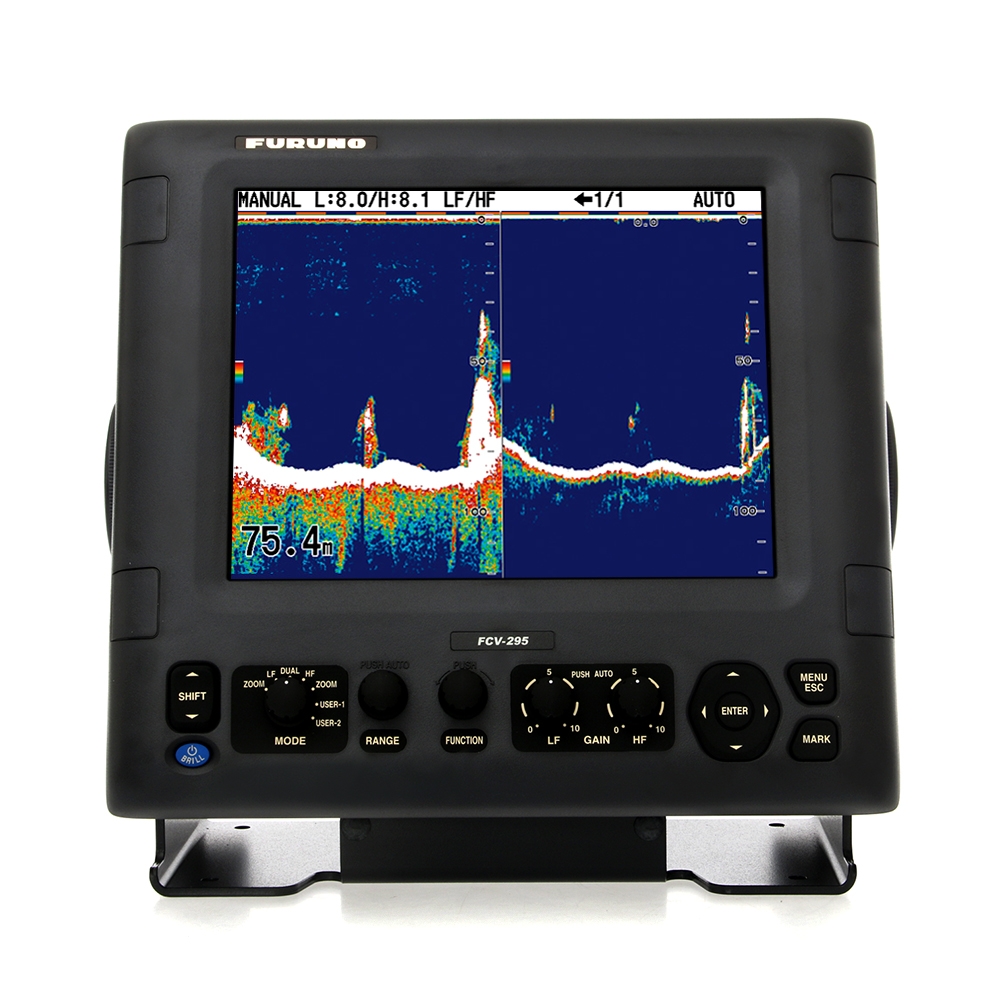

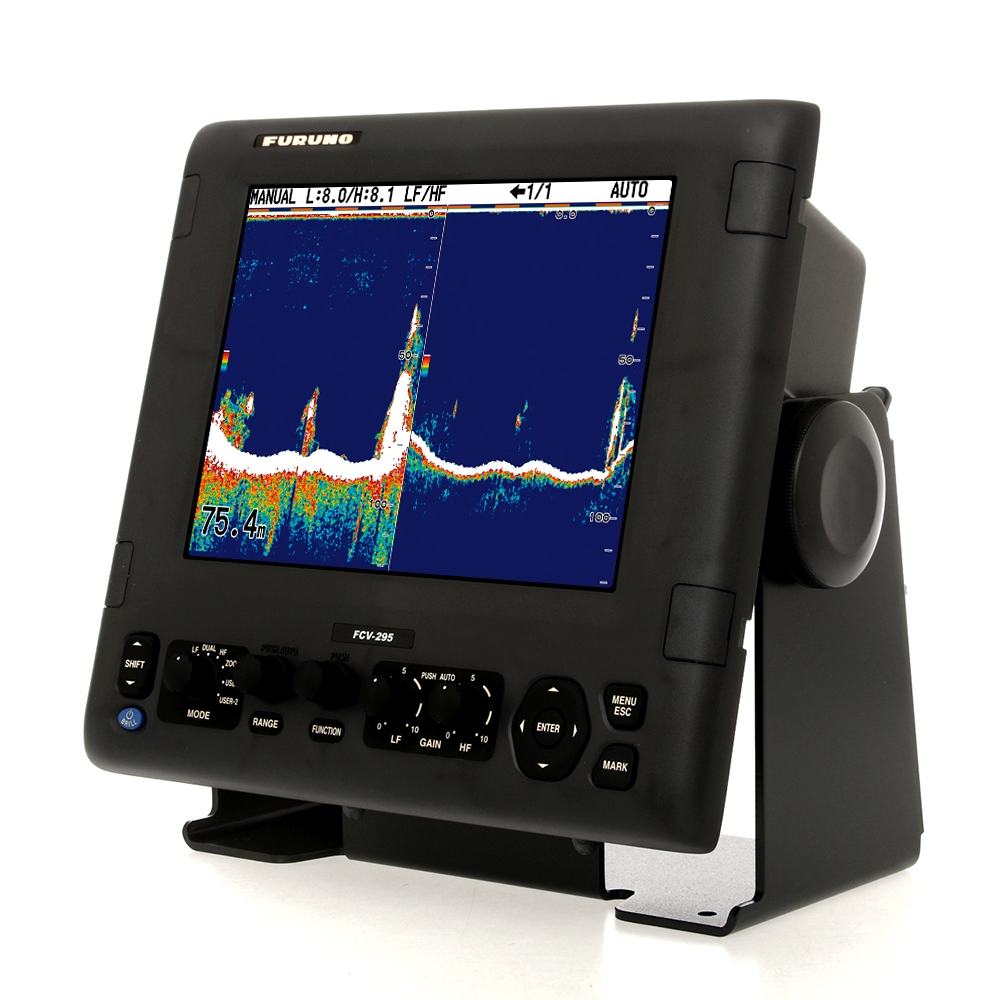

Furuno FCV-295 10.4'' LCD Commercial Grade Fishfinder

Crystal clear image!

The hardcore fishfinder for the serious fisherman, the Furuno FCV-295 10.4" LCD Commercial Grade Fishfinder is a commercial-grade colour digital sounder designed for professional use. The bonded 10.4" fog-free LCD display provides superior viewing in direct sunlight. Colour assignment lets you display echoes in 8, 16 or 64 colours. Free Synthesizer and Digital Filter deliver high quality viewing in any weather conditions. A wide variety of display modes and functions are available, which provides simple and intuitive information.

Furuno Digital Filter (FDF)
With Furuno Digital Filter, the FCV 205 clearly shows target fish close to the seabed. The filter optimises the gain to obtain highly defined images. It also eliminates noise to deliver sharp and detailed echo presentation, achieving detection of fishing reef and even individual fish with absolute clarity.

Furuno Free Synthesizer
The Furuno Free Synthesizer (FFS) Transceiver gives you a wide selection of operating frequencies. Choose any two frequencies between 28 and 200 kHz to fit your fishing operation. Output power is selectable from 1, 2 or 3 kW.

Auto Transmission Function
With FCV 295’s auto transmission function, the rate is automatically raised in shallow waters and lowered in deep waters. This function provides you with faster transmission and detailed detection of your seabed targets.

Operating Frequency Adjustment
When Furuno transducers are connected and set to the FCV-295, the operating frequency range will be registered and shown in the menu. The user can shift the operating frequency freely between the ranges at any time from the menu. This feature is particularly useful for vessels targeting many different species or when the fish finders of other ships in the area cause interference.

Faster Transmission Rate For Detailed Detection
The rate of transmission is increased by more than 30% compared to conventional fishfinders. As the result, more detailed information about underwater conditions can be gained through the same sounding interval. With the FCV-295's AUTO transmission function, the rate is automatically raised in shallow waters and lowered in deep waters, which provides for detailed detection of seabed targets.

Furuno FCV-295 10.4" LCD Commercial Grade Fishfinder Features:

• 10.4" 'Fogging-Free' color LCD provides clear view in any weather conditions

• 64-colour (including background) presentation provides detailed information on fish density and bottom composition

• Post-processing gain control applies to all existing returns on the display

• White Edge function trace the bottom contour with a thin white line

• Digital Filter delivers crystal clear target presentation

• Free Synthesizer transceiver allows adjustable operating frequency

• Adjustable operating frequency

• Auto transmission function

• Automatic operation selects correct range and gain to show fish echoes and bottom in both shallow and deep waters

• In addition to the conventional gain setting, Gain may be applied to the whole display

• Alarms: Bottom, Fish (bottom lock and normal), Speed*, Water Temperature* and Arrival* (requires appropriate sensors)

• Edge function of white marker traces the bottom contour with a thin white line.

• Zero line may be removed to look for fish near the surface

• User-programmable nav data displays provide analog and digital nav data.

• Waypoints (up to 20) for marking important locations

• Destination waypoint feature provides range, bearing and time-to-go to destination waypoint


Furuno FCV-295 10.4" LCD Commercial Grade Fishfinder Specifications:

Display

• Display unit: 10.4" TFT colour LCD

• Display mmodeL Single (HF/LF), Dual, Single+Zoom, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

• Pixel number: 640 x 480


Fish Finder

• Frequency: The synthesized transreceiver works with dual frequencies in 28 to 200 kHz

• Transducer: 1, 2 or 3 kW

• Range Scale: 5-3000 m

• Pulselength & PRR: 20-3000 pulse/min

• Display Mode: Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope


Others

• Waterproofing: IP55 (When flush mounted)

• Power Supply:
  12-24 VDC: 2.6-1.3 A
  100/110/220/230 VAC, optional rectifier required

• Size: 270 (H) x 233 (W) x 158 (D)

• Weight: 7.0 kg


Furuno FCV-295 10.4" LCD Commercial Grade Fishfinder Product Brochure

Note: Transducer sold separately.
