A new way to see what's under the water

The Garmin STRIKER Vivid 7sv CHIRP ClearVu SideVu Fishfinder lets you see fish and structure in maximum detail. The sonar colour you pick says a lot about your fishing style. Good thing there are 7 new vivid options. Use waypoint marking to find your way back and never lose a hot spot again. The included transducer to get CHIRP traditional and ClearVü sonars. Plus, Wi-Fi connection on land opens up a world of possibilities on the water.

Clear, colourful sonar
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 7" fishfinder.

Built-in sonar
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

Waypoint Marking
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High-sensitivity GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw contours
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.

Wi-Fi connectivity
Connect to the ActiveCaptain app to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw Community. Included hardware

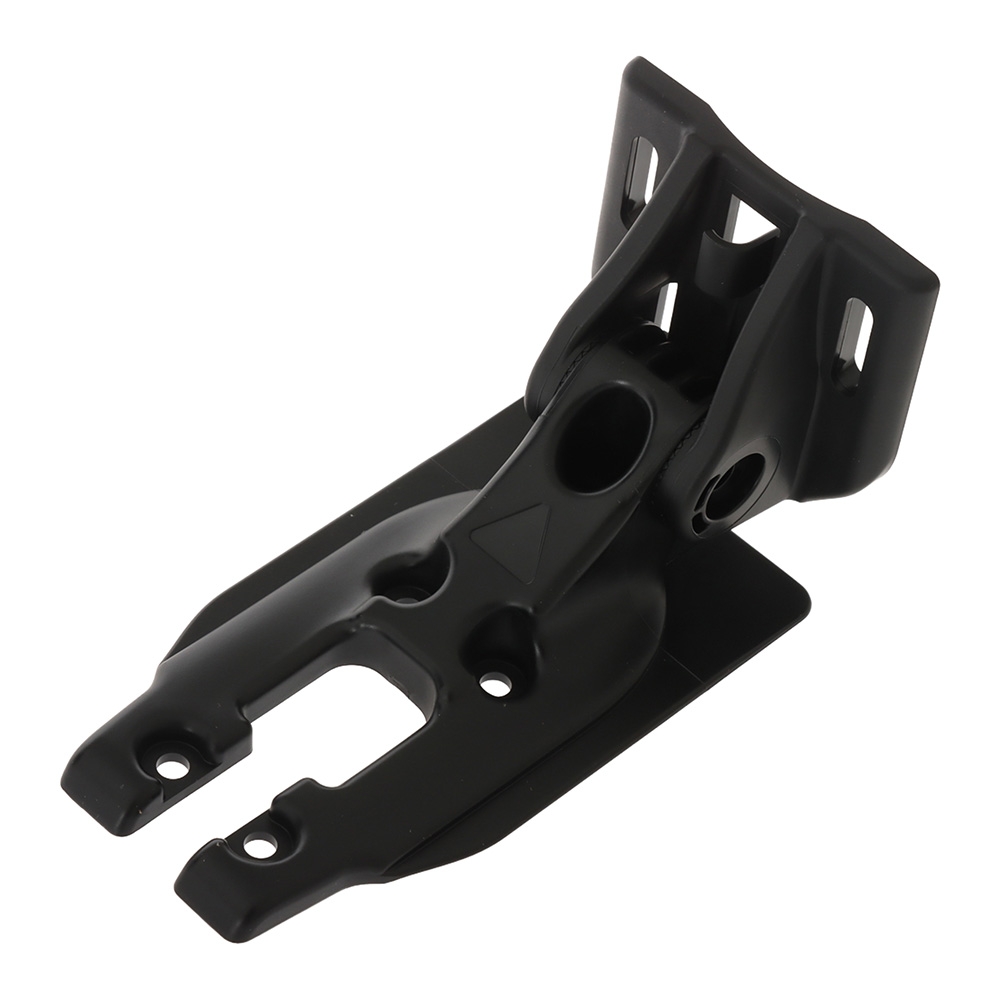

The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Garmin STRIKER Vivid 7sv CHIRP ClearVu SideVu Fishfinder Features:

• Dual-Frequency (50/200 Khz) Sonar Capable
• Dual-Beam (77/200 Khz) Sonar Capable
• Frequencies Supported
• Bottom Lock (Shows Return From The Bottom Up)
• Water Temperature Log And Graph
• Split-Screen Zoom
• Ultrascroll (Displays Fish Targets At Higher Boat Speeds)
• Fish Symbol Id (Helps Identify Fish Targets)
• Autogain Technology (Minimizes Clutter, Maximizes Targets)
• Adjustable Depth Line (Measures Depth Of Underwater Objects)
• A-Scope (Real Time Display Of Fish Passing Through Transducer Beam)
• Water Temperature Sensor Included
• One 4-pin transducer port
• Wireless Connectivity: Yes
• Quickdraw Contours
• Integrated GPS
• Mark Waypoints
• Course over Ground (COG)
• Current draw @ 12V: 0.55A

Garmin STRIKER Vivid 7sv CHIRP ClearVu SideVu Fishfinder Specifications:

• Physical Dimensions: 9.3 x 5.5 x 2.3 (23.5 x 14.0 x 5.8 cm)
• Display Resolution: 800 x 480 pixels
• Display Type: WVGA colour
• Weight: 1.7 lbs (0.8 kg)
• Water Rating: IPX7
• Transmit Power: 500 W (RMS)

What's in the box:

• STRIKER Vivid 7sv
• GT52HW-TM transducer
• Power/data cable
• 12-pin to dual 4-pin transducer adapter cable
• Tilt/swivel mount
• Hardware
• Garmin bumper sticker
