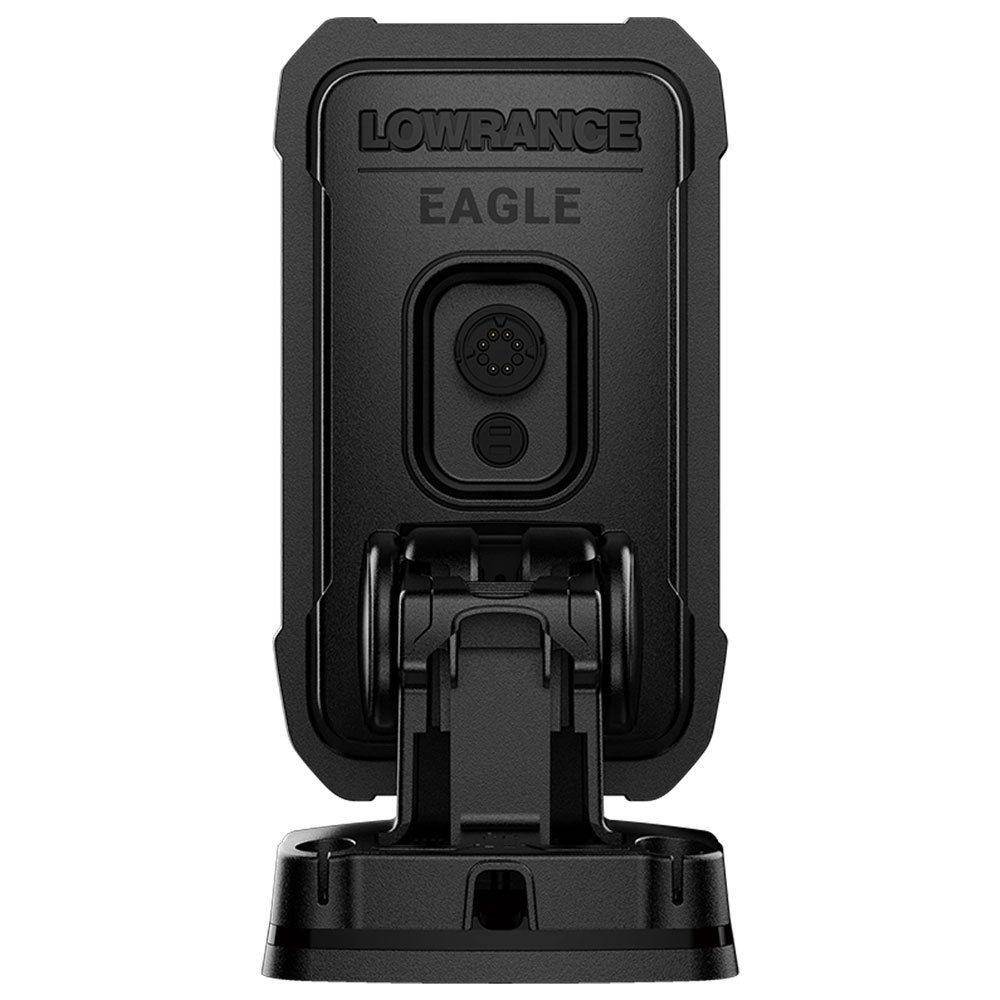

Lowrance Eagle 4x Fishfinder with Bullet Skimmer Transducer

Reveal the wonders of the waters

With razor-sharp vision, the Lowrance Eagle 4x Fishfinder was born to fish. Get autotuning sonar, an always-visible IPS screen and more. That’s everything you need to dominate out on the water with total ease and no distractions.

The Lowrance Eagle 4x Fishfinder provides a quick and easy solution for simple fishfinding. This portrait-orientated display is ideal for kayaks and small fishing boats with limited space. With its wide-angle sonar, the Bullet Transducer provides more water column coverage with a continuous right-to-left scroll across the screen, making it easy to interpret and spot fish.

New IPS Screen
Eagle features new IPS screens for improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.

Connect and Cast
Eagle gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

Twist-Locking Connector
The improved twist-locking connector allows easy and reliable installation and removal, making Eagle a great portable solution for any type of fishing.

Auto Tuning Sonar
Spend more time fishing and less time reworking your sonar settings with Autotuning Sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.

Lowrance Eagle 4x Fishfinder Features:

• New IPS screen
• Viewable from all angles
• Connect and cast
• Twist-locking connector
• Auto tuning sonar

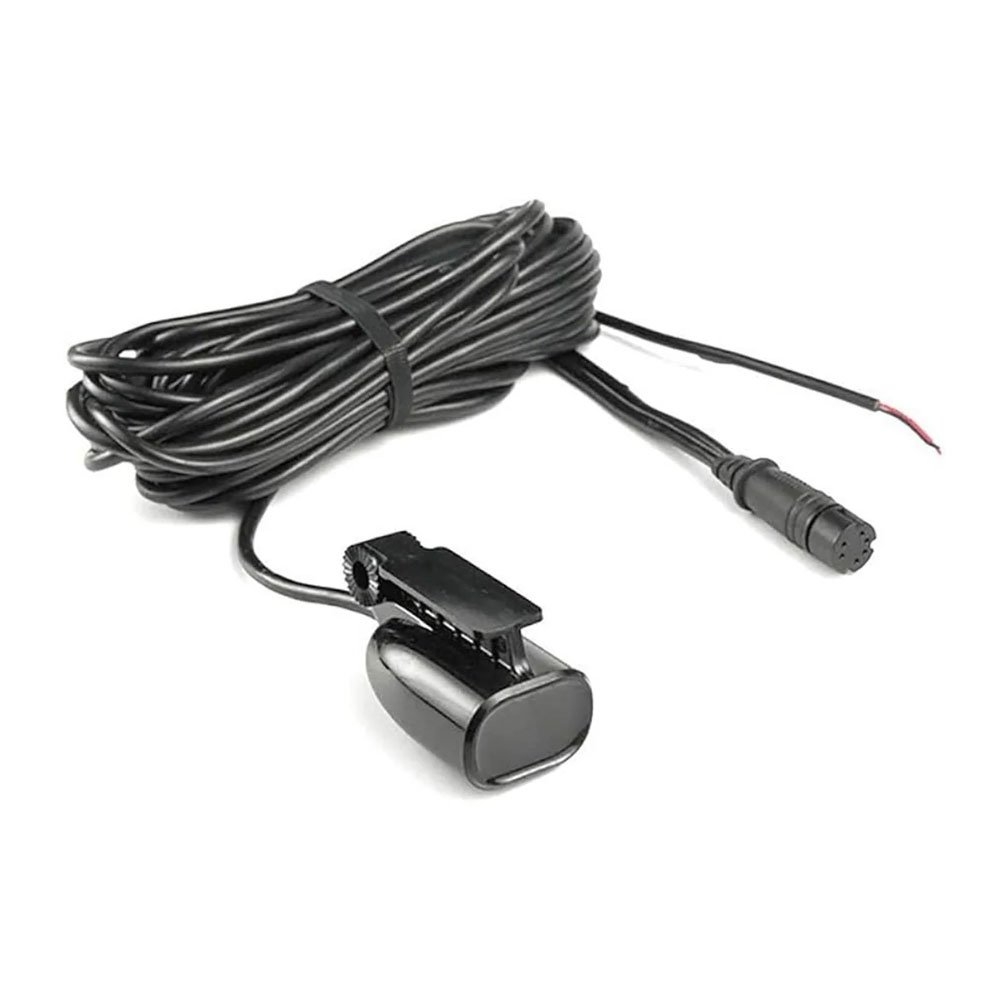

• Bullet Skimmer Transducer

Lowrance Eagle 4x Fishfinder Specifications:

• Display:

  • Screen size: 4in IPS
  • Resolution: 272 x 480
  • Keypad: 9-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power
  • Viewing angles in degrees: 85° top/bottom, 85° left/right
• Sonar:

  • Sonar compatibility: Broadband (Integrated)
  • Sonar frequencies: Broadband Wide angle 200 kHz
  • Max depth: 200 kHz: 152m (500ft)
• Interface and connectivity: 1 port (Sonar)
• Electrical:

  • Supply voltage: 12V DC
  • Recommended fuse rating: 5A
• Mounting type: Panel mount or bracket mount
• Environmental:

  • Operating temperature range: -15°C to +55°C (5° F to 131° F)
  • Humidity: Damp heat 66°C (150°F) at 95% relative (48 hr)
  • Storage temperature: -20°C to +60°C (4°F to 140°F)
  • Waterprood rating: IPX7
