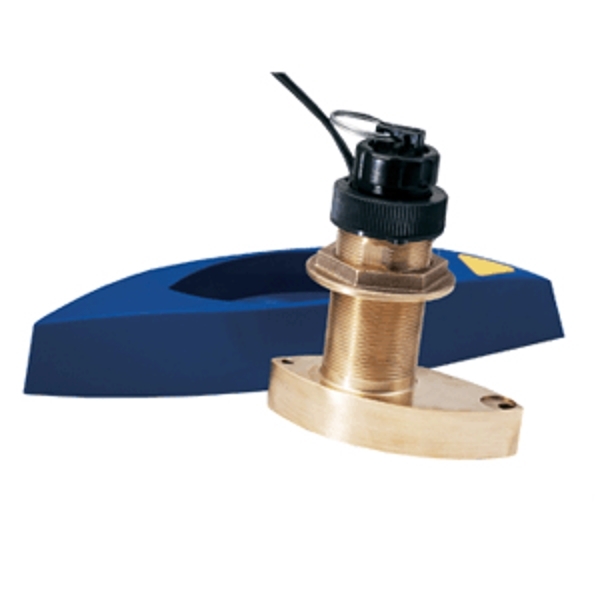

Airmar B744VL Long Stem Bronze Thru-Hull Triducer Depth, Speed and Temp 50/200kHz

Click on the image above to view full picture

More Views

  • Details
  • Specifications
  • Features
  • Reviews
  • Questions About Product
Details

Details

Triducer Multisensor - 3 sensors in one!

The Airmar B744VL Long Stem Bronze Thru-Hull Transducer's patented valve assembly prevents water from rushing into the hull when the insert is removed for cleaning or storage. The innovative housing design allows the Triducer Multisensor to be fully recessed into its custom High-Performance Fairing. The end result is a streamlined installation. At speeds above 30 knots (34 MPH), the B744VL will produce clear images and solid bottom tracking.

Airmar B744VL Long Stem Bronze Thru-Hull Transducer Features:
  • Long-stem version of the B744V
  • Depth, Speed, and Temperature
  • Greatly improved high-speed performanceat both 50 kHz and 200 kHz when installed with a high-performance fairing
  • Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
  • Usable Shaft Length: ~140 mm (5.5”)
  • Boat Size: Up to 9m (30’)
  • Frequency: 50/200 kHz
  • Cone: 50 kHz—45° , 200 kHz—12°
  • RMS Power: 600 W

Airmar B744VL Long Stem Bronze Thru-Hull Transducer Specifications:

Unit Code Description Fits
Standard B744VL-BB 8-pin connector, Depth, speed, and temp FF520/525, CPF180i, CPF190i, CPF300i, CPF390i
Furuno B744VL-10F 10-pin connector, Depth, speed, and temp Furuno units with 10-pin connector
Garmin B744VL-6G 6-pin connector, Depth, speed, and temp Garmin units with 6-pin connector
Garmin B744VL-8G 8-pin connector, Depth, speed, and temp All Garmin 50/200 kHz units w/ 8-pin
Generic B744VL-8 8-pin Fuji connector, Depth, speed, and temp Raytheon V-700/800 series, Si-Tex CVS-106L, 832, 833, Furuno 667/582
Humminbird B744VL-18HB 18-pin connector, Depth, speed, and temp SM 1000, 2000, 3000 series
JRC, Simrad B744VL-7 7-pin connector, Depth, speed, and temp JRC FF-50, Simrad EQ/32/33/34 Raytheon V-850
Lowrance, Simrad B744VL-BL 7-pin Blue Lowrance, Depth, speed, and temp Units with blue collar conn, Simrad NSE, NSO, NSS
Navico B744VL-6N 6-pin connector, Depth, speed, and temp Navman 6-pin, Northstar M Series, Simrad NX 40/45
Northstar B744VL-10N 10-pin connector, Depth, speed, and temp 490S, 491 (600W), Nobeltec
Raymarine B744VL-RAYA 6/9-pin connector, Depth, speed, and temp "A" series: DS400X, 500X,600X, A50D, A57D, A65D, A70D, DSM25, a65, a67, e7D, c97, e97, c127, e127
Raymarine B744VL-RAY Radar connector, Depth, speed, and temp L755, 760, 770, 1250, DSM30/250/300, CP300, CP370
Si-Tex B744VL-8S 8-pin connector, Depth speed, and temp CVS126/128/1410, SVS 460/560/650/750/760
Si-Tex B744VL-BB 8-pin connector, Depth speed, and temp Si-Tex ES502
