Airmar B765C-LM-MM Low-Medium CHIRP 600W Thru-Hull Transducer with FB Mix and Match

300 / 600 W

It's a thru-hull, Chirp transducer perfectly suited for smaller fishing boats. The B765LM gives the performance of the larger transducers but in a compact package. A great combination of low and medium-frequency bands provides a wide range of depth capability and fish finding. The low-frequency band, operating from 40 to 75 kHz, provide excellent depth penetration. Meanwhile the medium frequency range of 80 to 130 kHz excels at detailed bottom structure and tight-holding fish targets in mid-depth.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• Depth and fast-response water-temperature sensing
• Low frequency: 40 to 75 kHz
• 32 degrees to 21 degrees beamwidth
• Maximum depth of 366 m (1200')
• Operates at 300 W
• Medium frequency: 80 to 130 kHz
• 24 degrees to 16 degrees beamwidth
• Maximum depth of 274 m (900')
• Operates at 600 W
• 85 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidth
• All the advantages of the larger, thru-hull, Chirp transducers yet suitable size-wise for smaller boats

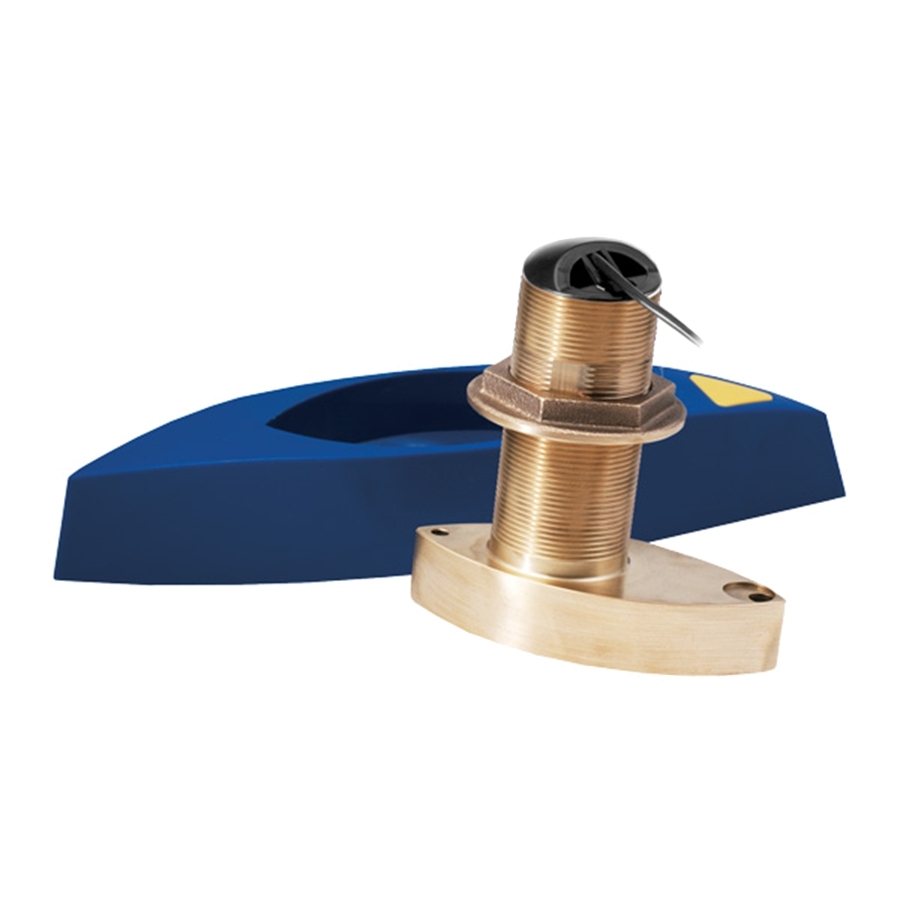

• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Patented Xducer ID technology

• Brand: Airmar Technology
• Connector: Airmar 12-Pin (MMC)
• Display Connector: Cable Required
• Housing Material: Bronze

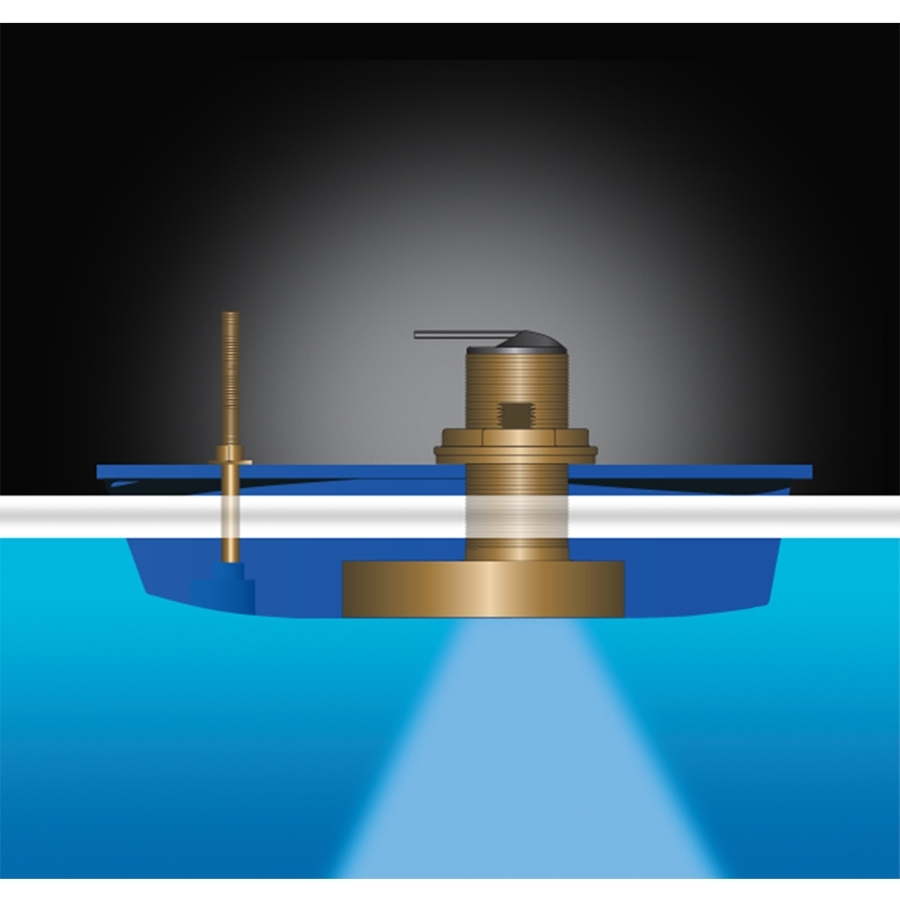

• Mounting Style: Thru-Hull with Fairing
• Sensor Connector: MMC
• Weight: 2.5 kg (5.5 lb.)
• Common Use: Fishing
• Deadrise Range: Up to 25 degrees with fairing
• Frequency Band: Low-Medium
• Transducer Functions: Depth, Temperature
• Country of Origin: USA
• Single or Dual Frequency: CHIRP-Ready Dual-Band

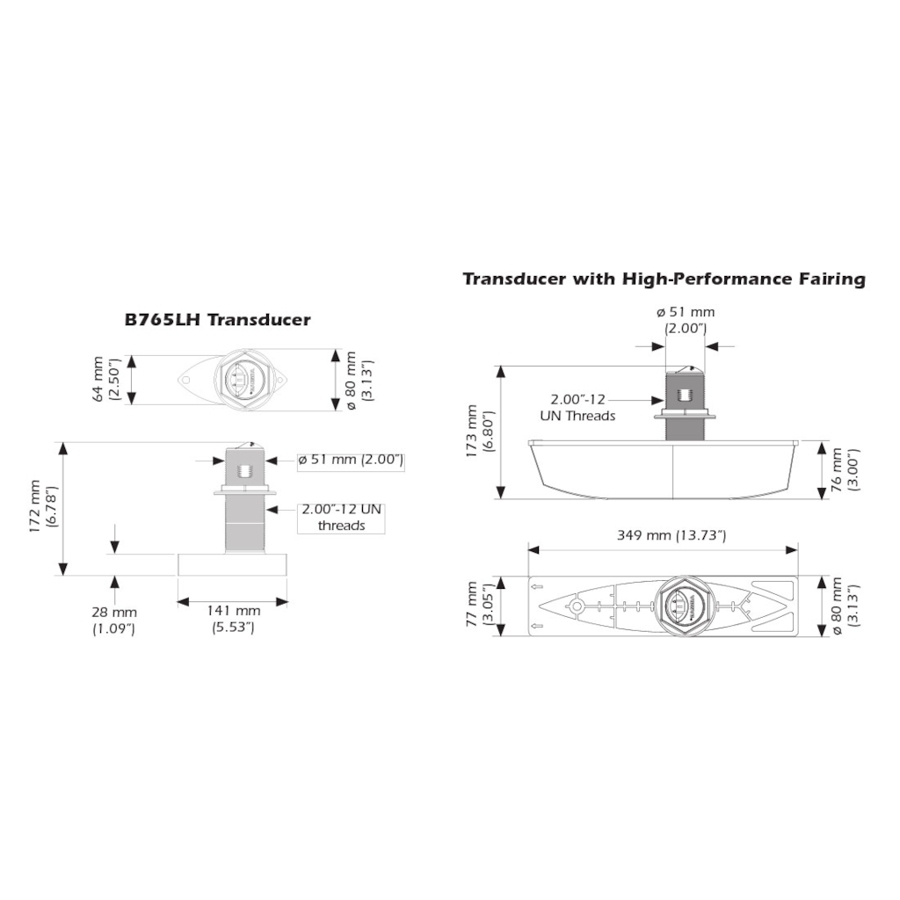

• Hole Size: 51 mm (2')
• Max Deadrise Angle: 24 degrees
• Medium Frequency: 80-130 kHz
• Mix and Match Series: 12-Pin Chirp
• Power Rating: 300W L/600W M
• Usable Shaft Length: 121 mm (4.75')
• Cable-Length: 9 m (30')
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 9 m (30')
• Tilted Element: No
• Max Deadrise: Up to 24 degrees with fairing
• Medium Frequency Beamwidth: 24 degrees-16 degrees
• Max Depth: Low frequency- 366 m (1200'), Medium frequency- 274 m (900')
• Low Frequency Beamwidth: 32 degrees-21 degrees
• Low Frequency: 40-75 kHz
• Acoustic Window: Urethane
