Airmar B785C-M-12F 600W Med CHIRP with Fairing Thru-Hull Transducer Furuno 12-Pin

600 W

The B785M is an economical, Chirp-ready transducer designed for offshore fishing and freshwater anglers. Operating at a frequency range of 80 to 130 kHz, this transducer reveals fish in shallow, murky waters at medium depths up to 274 m (900') along with ultra-clear target resolution. A thru-hull, Chirp transducer perfectly suited for smaller fishing boats.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

• Depth and fast-response water-temperature sensing
• 600 W of power
• Medium frequency: 80 to 130 kHz
• 24 degrees to 16 degrees beamwidth
• Maximum depth of 274 m (900')
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
• Recommended for use on planing or displacement hull

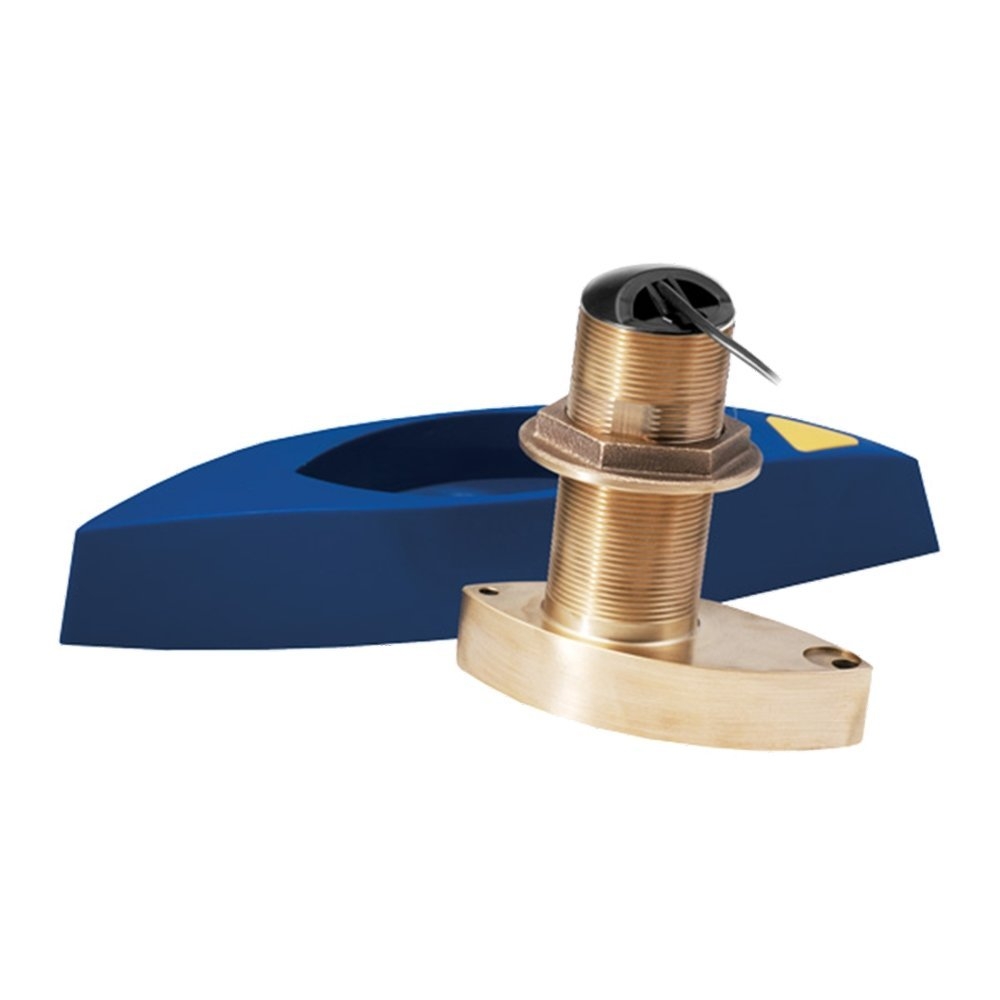

• Bronze housing with High-performance Fairing for optimal performance at higher speeds
• Also available in a low-profile, thru-hull (B75M) mount
• Patented Xducer ID technology

• Brand: Airmar Technology
• Acoustic Window: Urethane
• Cable-Length: 10 m (33')
• Common Use: Leisure/Yachting, Fishing
• Connector: Furuno 12-Pin
• Country of Origin: USA
• Deadrise Range: Up to 25 degrees with fairing
• Display Brand: Furuno
• Display Connector: 12F
• Frequency: Medium
• Frequency Band: Medium
• Functions: Depth, Temperature

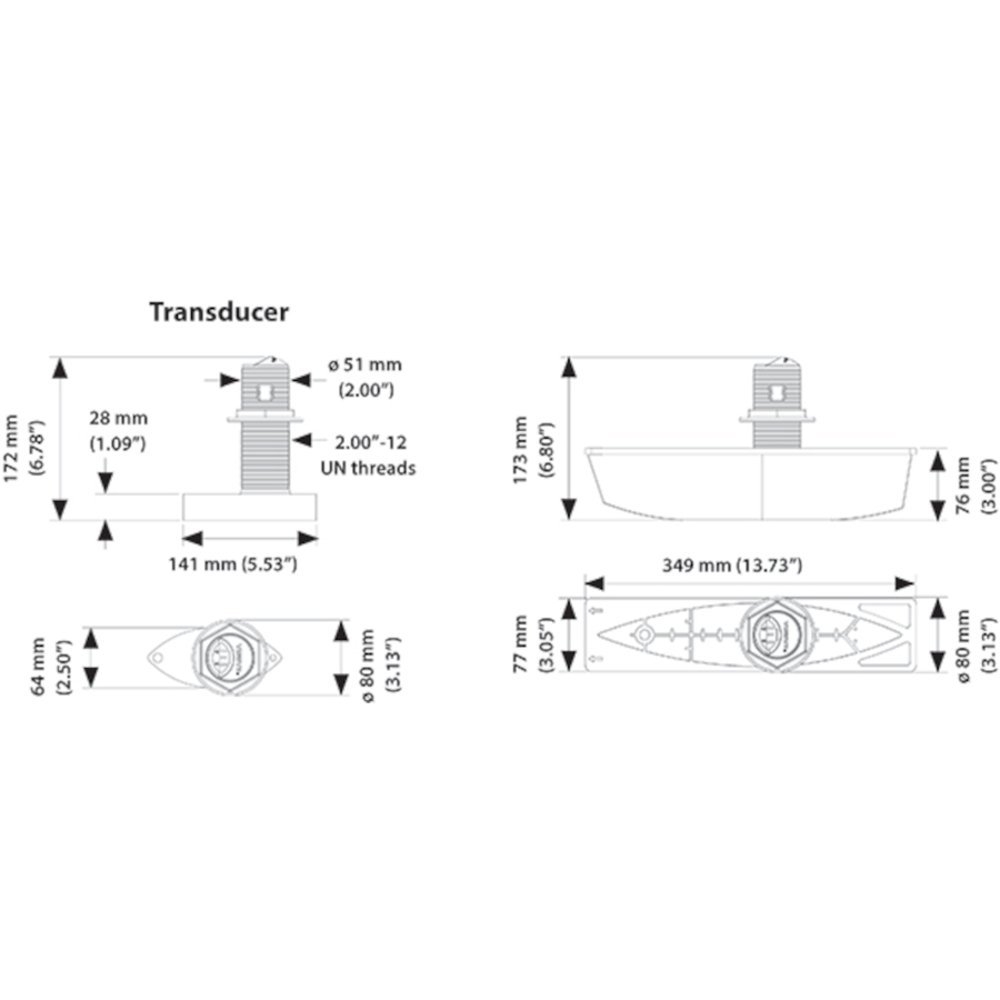

• Hole Size: 51 mm (2')
• Hull Material: Fiberglass or wood
• Material: Bronze
• Max Deadrise: Up to 24 degrees with fairing
• Max Deadrise Angle: 24 degrees
• Max Depth: 274 m (900')
• Max Vessel LOA: Up to 9 m (30')
• Medium Frequency: 80-130 kHz
• Medium Frequency Beamwidth: 24 degrees-16 degrees
• Mix and Match Series: 12-Pin Chirp
• Model or Series: B785

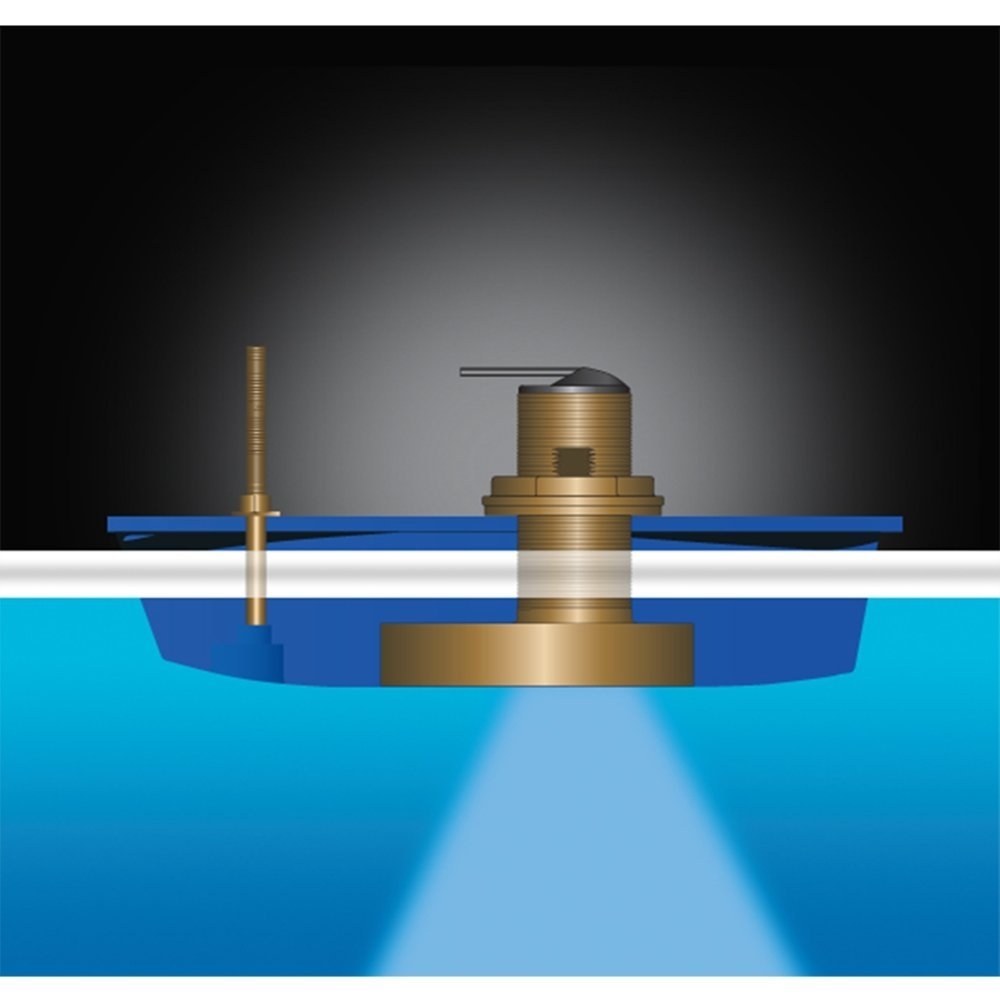

• Mounting Style: Thru-Hull with Fairing
• Power Rating: 600 W
• Product Family: Marine
• Sensor Connector: MMC
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilted Element: No
• Usable Shaft Length: 121 mm (4.75')
• Weight: 2.5 kg (5.5 lb.)
