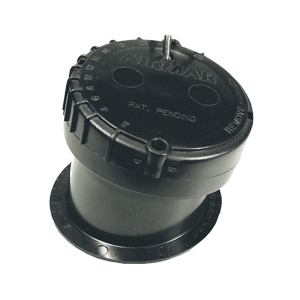

Airmar P79-8S 600W 50/200 kHz In-Hull Depth Only Plastic Transducer Si-Tex 8-Pin

Airmar P79-8S 600W 50/200 kHz In-Hull Depth Only Plastic Transducer Si-Tex 8-Pin

Fits: Si-Tex units with 8-pin connector

Airmar's P79 in-hull transducer easily adjusts to hull deadrise angles up to 22 degrees. This ensures that the beam is vertically oriented to receive echos, resulting in accurate depth readings. Unlike traditional 'puck' type transducers, Airmar's P79 consists of a base that is bonded to the hull and filled with liquid. The separate transducer then attaches to the base with a twist lock. The sound waves travel more efficiently though the liquid, giving the best possible performance.

The P79 is easy-to-install, accommodating hull deadrise angles up to 22 degrees;

1. Mount the base flange inside the hull
2. Adjust the locking ring for the correct hull deadrise angle
3. Fill the base with non-toxic anti-freeze (propylene glycol)
4. Turn and lock the transducer into the base

The unique adjustable-angle design ensures the beam is vertically oriented for maximum echo returns and the best possible performance. Because the transducer is mounted inside the hull, it is the perfect solution for rigid inflatable boats (RIBS) and racing sailboats.

Features:

• Adjusts to hull deadrise angles from 2 degrees to 22 degrees
• No holes to drill
• Depth Only
• Recommended for solid fiberglass hulls
• Epoxies to aluminum hulls under 0.38 mm (0.150) thick
• Recommended for planing-hull power boats, trailered boats, rigid inflatable boats
• No hull protrusions
• Boat Size: Up to 8 m (25')
