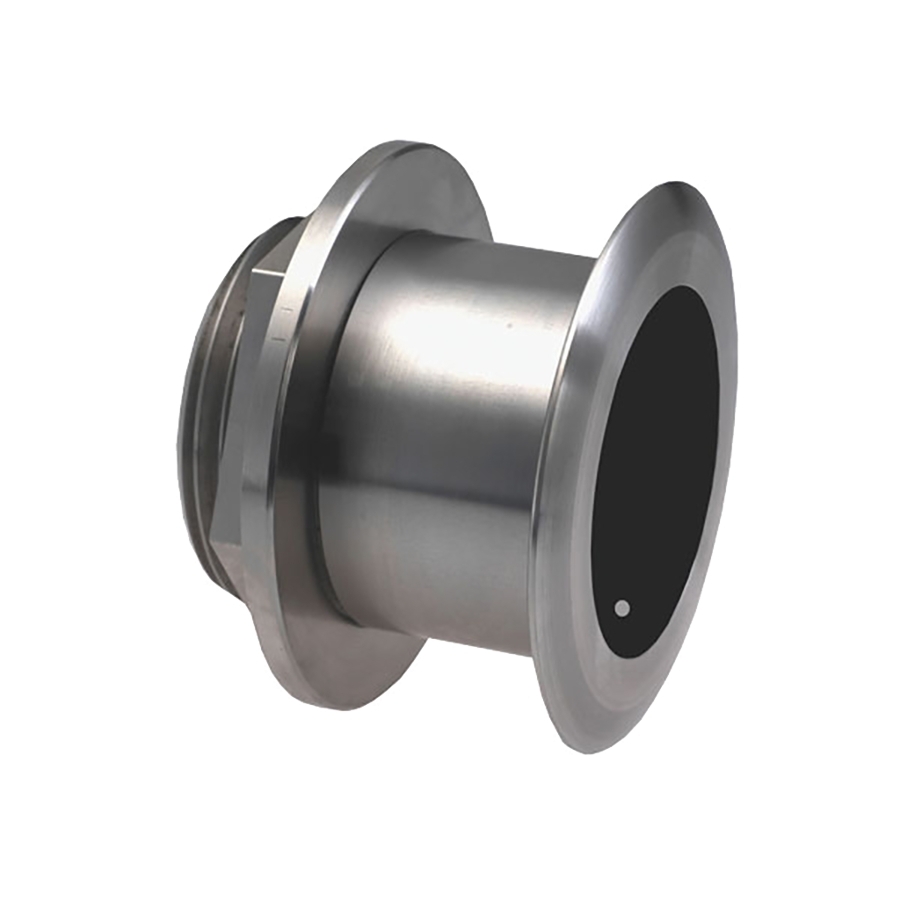

Airmar SS164-0-MM 50/200kHz 1kW 0-deg Tilt Thru-Hull Transducer Mix and Match
Airmar SS164-0-MM 50/200kHz 1kW 0-deg Tilt Thru-Hull Transducer Mix and Match
Deliver to:
Auckland 1026,
NZ
Estimated:
$6.99
2-hour Click & Collect:
(order before 3pm, in-stock products only)
Our Auckland Shop
Free
Buy now, pay later & Finance Options
Find Local Store
Report incorrect product information
The item you're looking at is currently unavailable or has limited stock, how about this one instead?
$2,179
$2,569.00
SAVE $390.00!
1 kW
Step up to a 1 kW-without a fairing! This 1 kW, flush-mount transducer is perfect for fast, trailered, tournament and sport-fishing vessels that cannot accommodate a High-performance Fairing. The flush-mounted, stainless steel housing extends less than 6.35 mm (1/4') outside your hull, so it can sit on trailer rollers and bunks. The ceramic arrays are tilted inside the housing, providing the perfect vertical beam with maximum energy on what is directly below the boat.
Available in three Tilted Element models:
- Fixed 20 degrees tilted version for 16 to 24 degrees hull deadrise angles
- Fixed 12 degrees tilted version for 8 to 15 degrees hull deadrise angles
- Fixed 0 degrees tilted version for 0 to 7 degrees hull deadrise angles
Specifications:
- Brand: Airmar Technology
- Connector: Airmar 9-Pin (MM1)
- Display Connector: Cable Required
- Housing Material: Stainless Steel
- Mounting Style: Tilted Element Thru-Hull
- Sensor Connector: MM1
- Weight: 2.7 kg (6 lb.)
- Common Use: Fishing
- Deadrise Range: 0 degrees to 7 degrees
- Frequency Band: 50/200 kHz
- Transducer Functions: Depth, Temperature
- Country of Origin: USA
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 0 degrees
- Max Deadrise Angle: 24 degrees
- Mix and Match Series: 9-Pin 1000 Watt
- Power Rating: 1 kW
- Cable-Length: 9 m (30')
- Hull Material: Compatible w/ all hull materials
- Max Vessel LOA: Up to 11 m (36')
- Tilted Element: Yes
- Retractable housing: No
- Max Deadrise: Up to 24 degrees
- Max Depth: 500 m (1640')
- Acoustic Window: Urethane
- Conventional Beam: 22 degreesx20 degrees/6 degrees
Product Data Sheet
