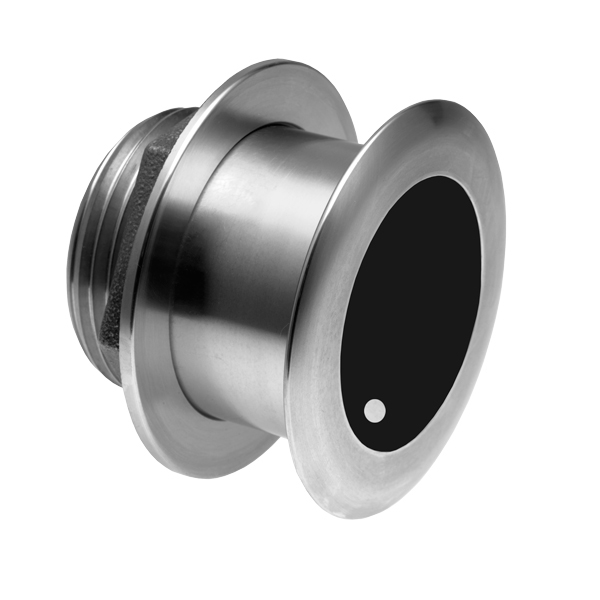

Airmar SS175L 1KW CHIRP Transducer for Lowrance / Simrad XSonic Plug 12-degree Tilt

Upgrade your sounder to a serious fishfinding machine!

Designed for smaller boats up to 36 feet, the stainless steel Airmar SS175L 1KW CHIRP Transducer enables bottom detection down to 3,000m with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town!

XSONIC Connector
Airmar XSONIC Transducers come with the new 9-Pin Black XSONIC connector. This transducer is compatible with Lowrance HDS Gen3, HDS Carbon and Elite-7 ti models. No need to mix, match or splice. Just plug and go!

Airmar SS175L 1KW CHIRP Transducer Features:

• Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
• Available in 0°, 12°, or 20° tilted versions
• 35 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Depth and fast-response water-temperature sensor
• Steel transducer housing
• Boat Size: Up to 8m (25')
• Hull Type: Steel or aluminium
• Usable shaft length ~ 71mm (2.80")
• XSONIC 9-Pin connector

Airmar SS175L 1KW CHIRP Transducer Specifications:

• Code: 000-13775-001
• Hull Deadrise: Up to 28°
• Acoustic Window: Urethane
• Weight: 2.7 kg (6 lb)
• 12-degree Tilt
