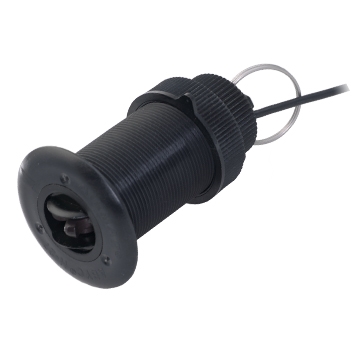

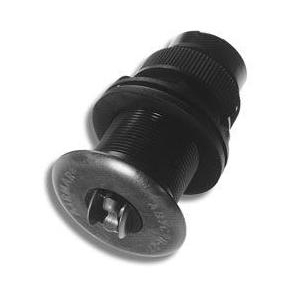

Airmar ST850 Plastic Thru Hull Transducer

Accurate speed and temperature reading

The Airmar ST850 Plastic Thru Hull Transducer is Airmar's standard, thru-hull speed sensor. Digital signal processing inside the housing provides speed and temperature data to a chartplotter, radar screen, or digital display in either analog or NMEA 2000 formats.

Minimise Your Drag
The plastic low-profile housing is nearly flush and minimises drag with only 5 mm (3/16inch) extending outside the hull.

Eliminate Turbulence
The plastic P217 and bronze B119 countersunk flush outer housings are easy-to-install. The plastic P314 and bronze B21 outer housing options have a traditional beveled-edge for flush mounting. Flush-mount housings eliminate turbulence for accurate readings at high-speeds. They are the optimal choice for installation in racing sailboats and high-speed powerboats.

Airmar ST850 Plastic Thru Hull Transducer Features:

• Speed and temperature

• NMEA 2000 or Analog output options

• Retractable plastic with valve sleeve

• Retrofits into Airmar P17 and B17 housings

• 6 m (20ft) NMEA 2000 cable, 9 m (30ft) Analog cable

• Devicenet connector or NMEA 2000 version

• Speed Range: 2 knots to 45 knots (2 MPH to 52 MPH)


• Weight: 0.7kg (1.4lb)

• Speed range: 2 knots to 45 knots (2mph to 52mph)

• Acoustic window: Urethane

• Hull deadrise: Up to 22°

• Data update rate: 1 per second

• Pressure rating: 3m (10ft)

• Pulse rate: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile

• Supply voltage: 9 VDC to 16 VDC

• Supply current: <200 mA

• Standard cable length: 6m (20ft) NMEA 2000 cable, 9m (30ft) Analog

• Temperature Sensor Accuracy: ±0.5°C (±1.8°F)

• Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)

• NMEA 2000 Load Equivalency Number (LEN): 2

• CE Regulation: Complies to IERC60945

• Dimensions:
  Diameter: 75mm
