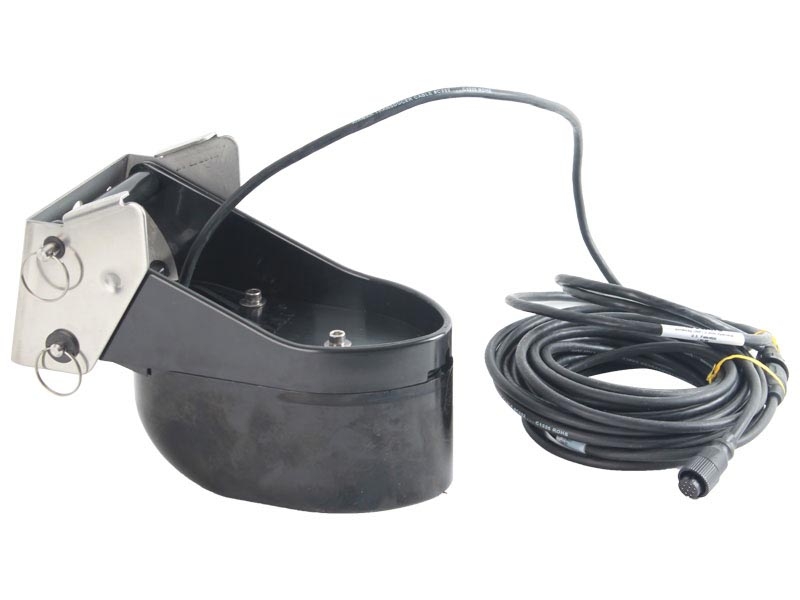

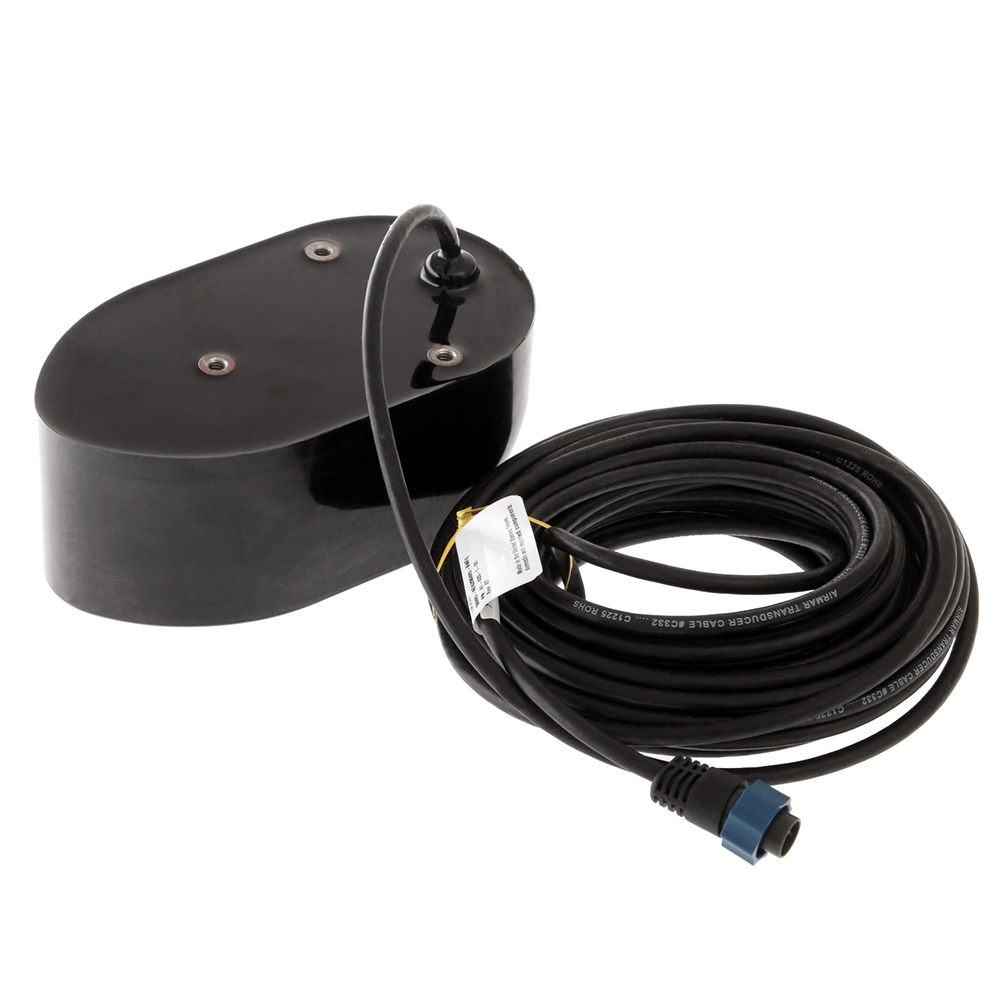

Airmar TM260 Transom Mount Transducer 1kW 50/200kHz

Powerful and sensitive

The transom mount version of the B260, the top-of-the-line broadband Airmar TM260 Transom Mount Transducer brings crystal clear imaging to your fishfinder. The large 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).

Airmar TM260 Transom Mount Transducer Features:

• Top-of-the-line narrow-beam transom-mount

• Designed for bottom fishing

• Wide 19° beam at 50 kHz

• Narrow 6° beam at 200 kHz

• Interfaces to any 600 W or 1 kW sounder

• Depth and fast-response water-temperature sensor

• Kick-up assembly locks in the “up” position and willnot damage the transom

• Accommodates transom angles between 3° and 21°

• Urethane housing

• Boat Size: Up to 12 m (40’)


Airmar TM260 Transom Mount Transducer Specifications:

• Weight: 4 kg (8.9 lb)

• Hull deadrise: Up to 28°

• Acoustic window: Urethane

• Maximum depth range:
  50kHz: 529 to 735m
  200kHz: 206m to 294m


1) AIRMAR TM260 For Lowrance Models: HDS Carbon models , HDS Gen2 and 3 models, HDS-9, HDS-10, HDS-5, HDS-5x, HDS-7, HDS-8, LCX-110C, LCX-111C HD, LCX-112C, LCX-113C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LCX-27C, LCX-28C HD, LCX-38C HD, LMS-335C DF, LMS-337C DF, LMS-339C DF iGPS, LMS-480, LMS-525C DF, LMS-527C DF iGPS, X105C DF, X107C DF, X126DF, X136DF, X-515C DF, X59DF , SIMRAD NSE

2) AIRMAR TM260 For Furuno 10pin Models: NavNet DDFF1 & BBFF1, GP1850, GP1650, GP7000F, FCV585, FCV620, LS4100, LS6100, GP1600F, GP1610CF, LS6100, FCV600L, Furuno LS6000, Furuno GP1800F

3) AIRMAR TM260 for Raymarine "A" series Models: DS400X, DS500X, DS600X, A50D, A57D, A65D, A70D, DSM25, a65, a67, e7D, c97, e97, c127, e127

4) AIRMAR TM260 for Garmin 6pin Plug: GPSMAP 441s, GPSMAP 541s, GPSMAP 546s, GPSMAP 720s, GPSMAP 740s, GSD 22

5) AIRMAR TM260 for Northstar 6 Pin Plug: for Navman sounders and fishfinders that use the Navman 6-pin transducer connector, including the M121, M81, and the Explorer series, and the Simrad NX.
