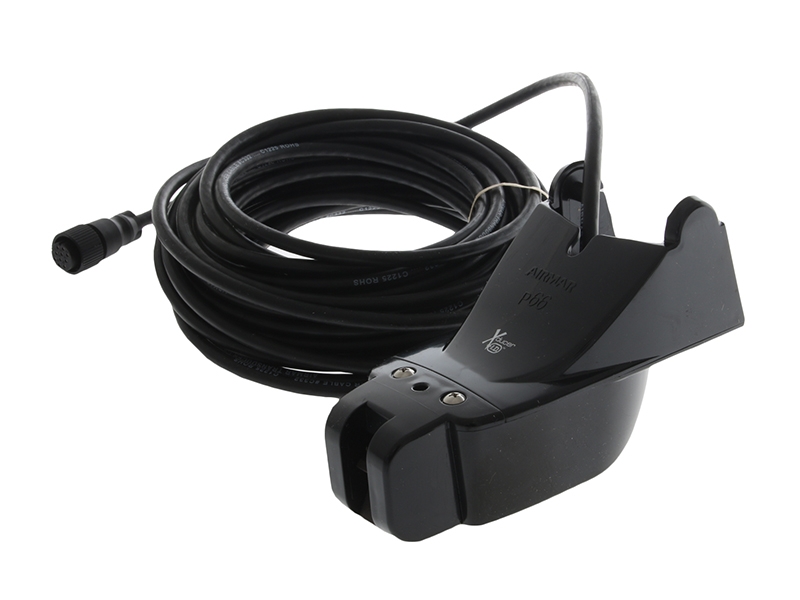

Fast and accurate transom-mount transducer

The Furuno 525T-PWD Transom Transducer provides you with the best of both worlds with high performance and high speed. Its Airmar P66 style housing makes use of its hydrodynamic shape to allow water to channel across and thus reducing the interference caused by turbulent waters and mechanical vibrations. This allows you to get a clear view of the bottom contour even at high speed.

Great engineering
The Furuno 525T-PWD Transducer is well engineered inside with a built-in shield that reduces the effects of electromagnetic and radio frequency interference. It also comes with a mounting bracket that allows the transducer to be removed without the use of tools that could damage it during storage and trailering.

Note: This unit uses the Airmar P66 housing which is available in two different styles that utilise different mounting hardware. Please refer to the P66 Styles document linked to this listing for more information.

Furuno 525T-PWD P66 Transom Mount Transducer Features:

• Dual frequency

• 50/200 kHz, single ceramic element for focused beams and highlighting detail in the water column and bottom structure

• Hydrodynamic housing

• Accurate high speed readings

• Clear display images

• Mid-performance

• Accommodates transom angles between 2 and 20 degrees

• Recessed water flow channel protects paddle wheel

• Boat size: 5m to 8m

• Includes noise suppression system

• Plastic kick-up bracket

• Depth, speed and temperature


Furuno 525T-PWD P66 Transom Mount Transducer Specifications:

• Furuno model number 5525T-PWD
• Airmar P66 Housing Style Transducer
• Install type: Transom mount
• Housing type: Plastic
• Power rating: 600 W
• Frequency: 50/200 kHz
• Beam angle: 45 and 12 Degrees
• Plastic Transom Mount with Temperature

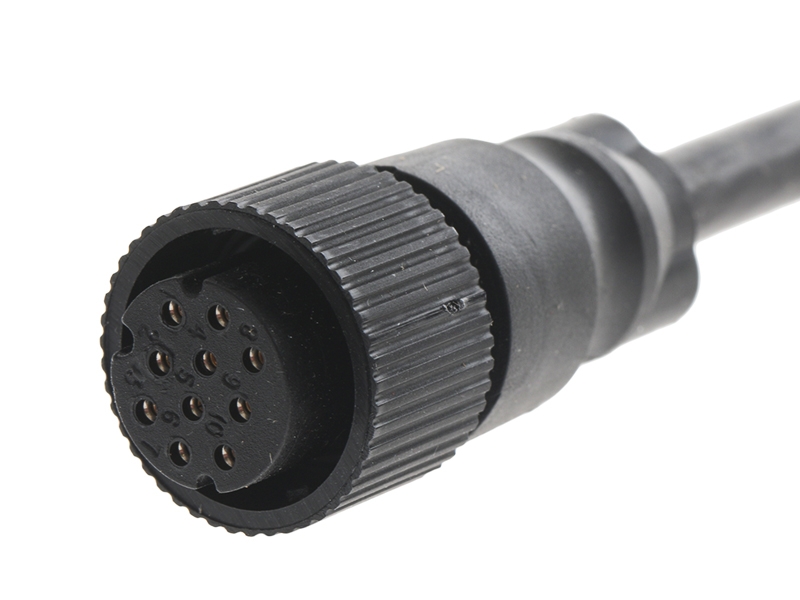

• Includes 30 Foot Cable with 10-Pin Connector
• Compatible with: Furuno 1650 sounders
