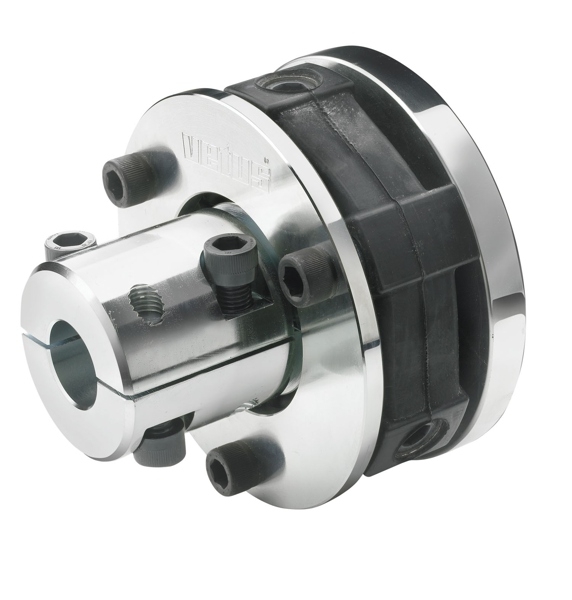

VETUS Bullflex 32 Flexible Coupling Shaft 45mm

Details

Details

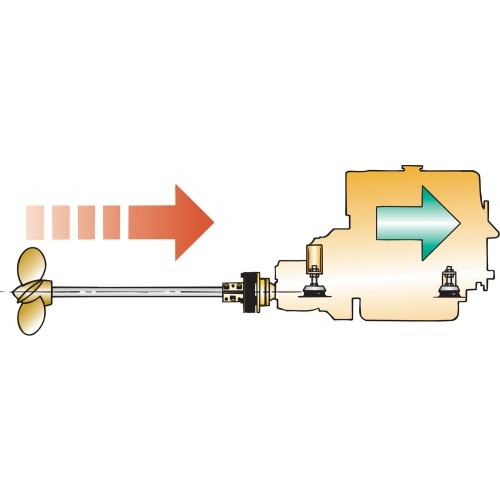

The BULFL3245 ensures optimum damping of vibrations. Excellent alignment of the propeller shaft due to a special centering ring, with ease of installation.

Specifications:

Type Bullflex	32
DIN 6270B = pleasure craft kW (HP)/100 shaft RPM	23.0 (31.3)
DIN 6270A = commercial craft kW (HP)/100 shaft RPM	18.6 (25.3)
Max. torque Nm DIN 6270B	2200
Max. torque Nm DIN 6270A	1780
Max. RPM at zero misalignment	3600
Max. RPM at 2 degrees misalignment	1800

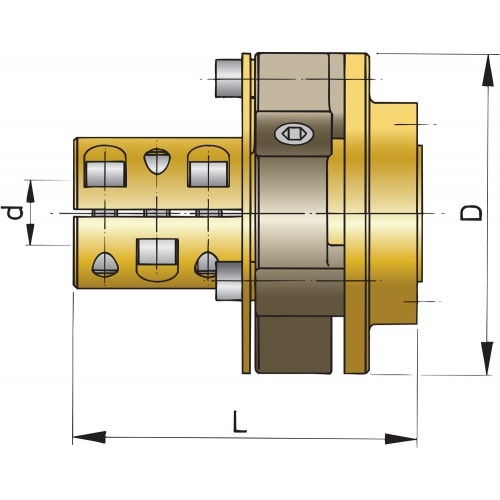

D (mm)	260
L (mm)	263
Shaft diameter d (mm)	45

Product Data Sheet
