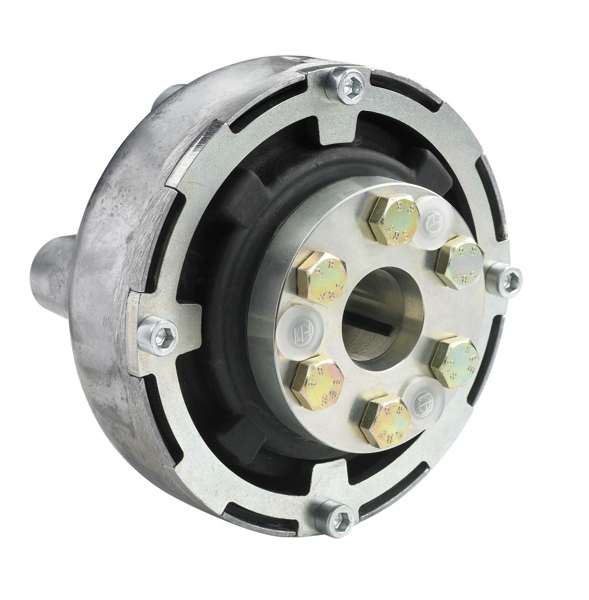

The UNIFLEX coupling permits a misalignment of 2 degrees. It will
centre the shaft to the gearbox, resulting in an ideal flexible
coupling for a propeller shaft.
Specifications:
Product Data Sheet
Specifications:
| Type | Uniflex 16 |
|---|---|
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 5,2 (7,1) |
| Max. admissible power at 1500 RPM | 15 x 5,2 = 79 kW (107 pk) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 3,6 (5) |
| Weight (kg) | 6,9 |
| D (mm) | 199 |
| L (mm) | 131 |
| Shaft diameter d (mm) | 30 |
