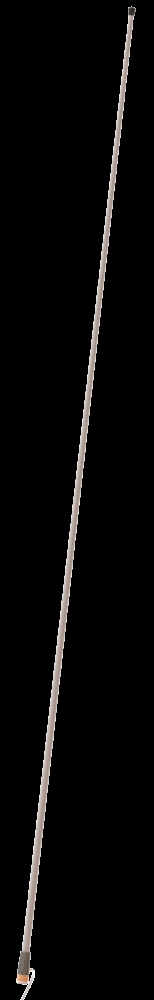

SCAN VHF56 2.7m VHF Antenna with 10m Cable

Details

Long range high gain International Maritime VHF Antenna for the leisure market

• VHF antenna especially made for leisure boats
• Matching designs available for other frequency bands
• For mounting on all US style brackets with 1'-14NF threaded stud

Electrical specifications

Frequency

156 - 162.5 MHz (International Maritime VHF-band)

Bandwidth

6.5 MHz

Antenna Type

End-fed full 1/2 ? dipole - no groundplane needed

Impedance

50 ohm

Vswr

< 1.5:1

Polarisation

Vertical

Gain

6 dB (Marine), 3 dBd, 5.1 dBi

Radiation Pattern

Omni-directional

Max. Input Power

150 W

Antistatic Protection

Direct Ground (DC-short)

Mechanical specifications

Color

White

Length

2700 mm

Weight

1780 g (with 10 m cable), 2160 g (with 20 m cable)

Mounting

On brackets with 1'-14NF threaded stud (US style)

Mounting Place

On deck or mast

Materials

PU-painted glass fibre, copper and chrome plated solid brass

Operating Temperature

-55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

Connector

No connector supplied

Cable

10 or 20 m white RG58 cable

Serial no.

On product label

Ordering information

P/N

11056-610 (Antenna with 10 m cable - bulk packing)

P/N

11056-611 (Antenna with 10 m cable - in Polybag)

P/N

11056-612 (Antenna with 10 m cable - in Carton tube)

P/N

11056-620 (Antenna with 20 m cable - bulk packing)

P/N

11056-621 (Antenna with 20 m cable - in Polybag)

P/N

11056-622 (Antenna with 20 m cable - in Carton tube)

Packaging information

Type

Bulk packing or individually packing in Polybag or Carton tube (See 'ORDERING INFORMATION')

Size

Approx. 2.8 m

Weight

Approx. 4.80 kg (Bulk- with 10 m cable), 5.20 kg (Bulk-with 20 m cable)

Disclaimer

Every effort has been made to ensure the accuracy of the information in this product sheet. SCAN Antenna A/S reserves the right to introduce changes to this information without notice.

All rights reserved.
